FR-4 is a widely recognized material grade specification for flame-retardant epoxy resin glass fiber reinforced laminates, not a single material name. The "FR" stands for "Flame Retardant," indicating compliance with the UL94 V-0 safety standard, meaning the material is self-extinguishing and effectively inhibits flame spread. As the most widely used material in the field of printed circuit board (PCB) substrates, FR-4 is renowned for its excellent comprehensive performance, high reliability, and balanced cost-effectiveness. The following sections detail its core advantages point by point.

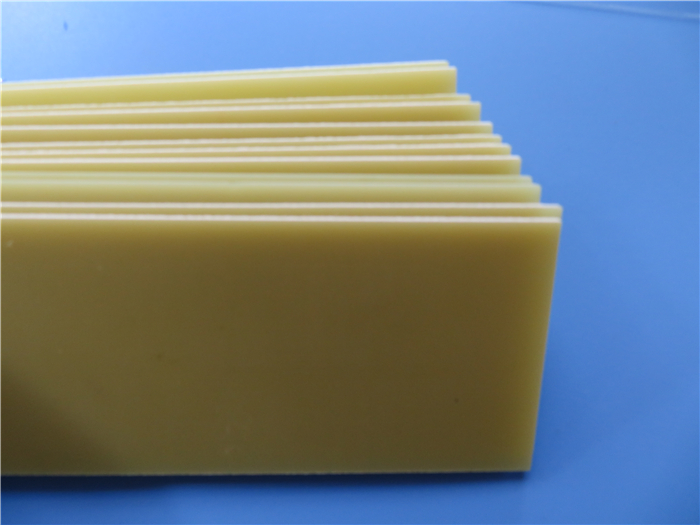

FR4 laminate without mask



1.Analysis of Core Advantages of FR-4 Material

Excellent Electrical Insulation Performance and Stability

FR-4 maintains outstanding electrical insulation properties in both dry and humid environments. It exhibits extremely high volume and surface resistivity, along with excellent dielectric strength, effectively preventing short circuits and leakage currents between circuits. More crucially, it has extremely low water absorption (typically < 0.2%), ensuring stable insulation resistance and dielectric constant even in high-humidity conditions, which is fundamental for long-term reliability of electronic devices.



Outstanding Mechanical Strength and Dimensional Stability

As a composite material reinforced with glass fiber cloth, FR-4 possesses considerable mechanical strength, including high flexural strength and impact resistance, providing reliable mechanical support for PCBs and components. Its low coefficient of thermal expansion (CTE), especially in the X-Y plane (typically 13-18 ppm/°C), closely matches that of copper foil, minimizing stress and deformation caused by temperature changes during soldering or operation. This ensures the stability of circuits and solder joints.



Superior Flame Retardancy and Safety

Compliance with the UL94V-0 standard is one of the most significant identifiers of FR-4. This indicates that the material stops burning within 10 seconds after removal from an open flame, with no dripping of flaming particles. This inherent flame retardancy enhances the safety level of electronic products, effectively reducing fire risks caused by electrical faults or overheating, and is a mandatory requirement for many consumer electronics, communication devices, and industrial control equipment.



Excellent Processability and Cost-Effectiveness

FR-4 offers good fabrication characteristics, including ease of drilling, routing, punching, and copper etching. Its compatibility with standard PCB manufacturing processes (such as lamination, soldering, etc.) is very high. From a comprehensive cost perspective, FR-4 achieves an optimal balance between performance and price. Its mature industrial chain, large-scale production, and wide availability make it the most economical and practical choice for the vast majority of non-specialized electronic applications.



Good Thermal Resistance and Environmental Durability

Standard FR-4 materials typically have a Glass Transition Temperature (Tg) ranging from 130°C to 140°C, which can withstand the temperature impact of conventional lead-free soldering processes. Some enhanced versions (like High-Tg FR-4 ) can offer Tg above 170°C. Additionally, it exhibits good resistance to common chemicals, solvents, and mold, suitable for use in various environmental conditions.



2.Summary Table of Key Properties and Advantages of FR-4

Property Category	Key Indicators / Characteristics	Significance & Benefits
Electrical Insulation	Low water absorption (<0.2%) High dielectric strength Stable insulation resistance	Ensures reliable circuit operation, prevents leakage/short circuits, suitable for humid environments.
Mechanical Properties	High flexural & tensile strength Good impact resistance Low X-Y CTE	Provides strong PCB support, maintains dimensional stability during thermal cycling, protects components.
Flame Retardancy	Complies with UL94V-0 standard	Self-extinguishing, enhances safety, meets mandatory regulations for most electronics.
Thermal Properties	Tg: 130-140°C (standard grade) Higher Tg options available	Withstands standard soldering temperatures, suitable for lead-free processes.
Processability	Easy to drill, cut, route, and etch Compatible with standard PCB processes	Reduces manufacturing cost, improves efficiency, ideal for volume production.
Cost-Effectiveness	Mature technology Large-scale production Widely available	Offers the best balance between performance and price for most applications.



3.Benefits of Our FR-4 PCB Manufacturing Service

Choosing the right material is the first step; partnering with a capable and reliable manufacturer is key to realizing its full potential. Our manufacturing services are designed to transform the inherent advantages of FR-4 into high-quality, dependable circuit boards for your projects. Here are our core features and benefits:



1. FR-4 shows excellent dimensional stability;

2. 16000㎡workshop and 30000㎡output capability per month;

3. PCB manufacturing on required specifications;

4. Delivery on time. Higher than 98% on-time-delivery rate.

5. 8000 types of PCB's per month;

6. Experienced sales persons and skilled customer services

7. Quick CADCAM checking and free PCB quotation;

8. Small quantity order is available;

9. ISO9001, ISO14001, IATF16949, ISO13485, UL Certified.





4.Conclusion

In summary, FR-4’s greatest strength lies in its excellent overall balance of electrical, mechanical, thermal, and safety properties at a reasonable cost. To fully leverage these material advantages, partnering with a certified, experienced, and scalable manufacturer is crucial. Our commitment to quality (evidenced by multiple certifications), flexible production capabilities (from prototyping to mass production), and unwavering focus on reliability (>98% on-time delivery) and service ensures that your FR-4 based designs are translated into high-performance, dependable circuit boards efficiently and effectively. For projects ranging from R&D prototypes to commercial volume production, we provide the technical expertise and manufacturing excellence to support your success.
