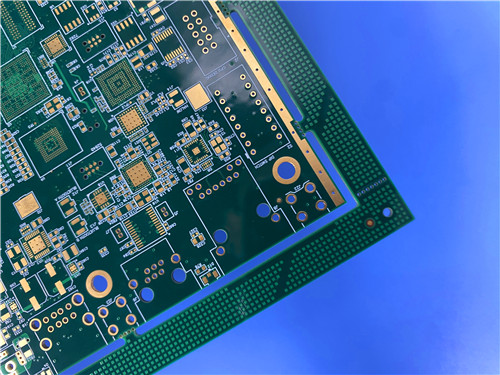

10-Layer IT-180A Tg180 FR-4 HDI PCB 1.6mm Circuit Boards for Advanced Automotive and Networking Applications
10-Layer IT-180A Tg180 FR-4 HDI PCB 1.6mm Circuit Boards for Advanced Automotive and Networking Applications
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
General Description
In the realm of advanced electronics, the demand for printed circuit boards (PCBs) that offer superior reliability, high density, and robust performance in challenging environments is paramount. This 10-layer, N+4+N HDI PCB is engineered to meet these exacting requirements. Constructed with ITEQ IT-180A laminate, a high-performance FR-4 material, this board is designed for complex applications where thermal stability and signal integrity are critical. The sophisticated build incorporates microvias, including blind vias from L1-L2 and L7-L10, and buried vias from L2-L8, all filled and capped to ensure reliability. With a standard 1.6mm thickness and an ENIG surface finish, IT-180A PCB provides a durable, flat surface for component assembly, making it a cornerstone for next-generation electronic systems.
PCB Construction Details
Specification |
Details |
Board Type |
10-layer, N+4+N HDI PCB |
Base Material |
FR-4 ITEQ IT-180A |
Total Thickness |
1.6mm +/- 10% |
Minimum Dielectric Thickness |
100um |
Minimum Trace/Space |
110um / 110um |
Minimum Hole Size |
0.2mm |
Blind Vias |
Yes (L1-L2, L7-L10) |
Buried Vias |
Yes (L2-L8) |
Via Filling |
Type VII Filled and Capped |
Surface Finish |
ENIG |
Solder Mask |
Both Sides, Green (10um) |
Silkscreen |
Both Sides, White |
Additional Components & Features
IT-180A PCB board is designed for high component density, accommodating 281 placements across 381 total pads. The layout includes 145 thru-hole pads, 140 top-side SMT pads, and 96 bottom-side SMT pads, interconnected by a network of 3051 vias across 10 nets. Supplied in Gerber RS-274-X format and manufactured to IPC-Class-2 standards, it ensures global availability and consistent quality.
Material Advantages
The ITEQ IT-180A material is the foundation of this PCB's performance. It is an advanced high-Tg (175°C) epoxy system offering exceptional thermal reliability, with a T288 rating of 20 minutes, making it ideal for lead-free assembly processes. Its stable dielectric constant (4.4) and low dissipation factor (0.015) at 10GHz ensure excellent signal integrity for high-speed designs. Key advantages include low CTE, superior CAF (Conductive Anodic Filament) resistance, and UL 94 V-0 flammability rating, providing long-term durability and resistance to failure in high-stress conditions.
Typical Applications
IT-180ATC PCB is ideally suited for high-reliability sectors, including:
Automotive: Particularly for under-hood applications like Engine Control Units (ECUs).
Server and Networking & Backplanes: For high-speed data communication and processing hardware.
Telecommunications: Infrastructure equipment requiring stable performance.
Data Storage and Power Boards: Applications demanding robust thermal and electrical characteristics.
Why Choose This PCB?
IT-180 PCB combines a sophisticated 10-layer HDI stack-up with the proven benefits of IT-180A material, delivering a solution that excels in thermal management, signal performance, and long-term reliability. It is a purpose-built component for engineers who cannot compromise on quality for their most demanding projects.
Order Now for Your Next-Generation Application!
Ensure your design leverages the reliability and performance of this advanced HDI construction. Contact us today to get a quote and integrate this high-performance PCB into your automotive, networking, or telecommunications system.
