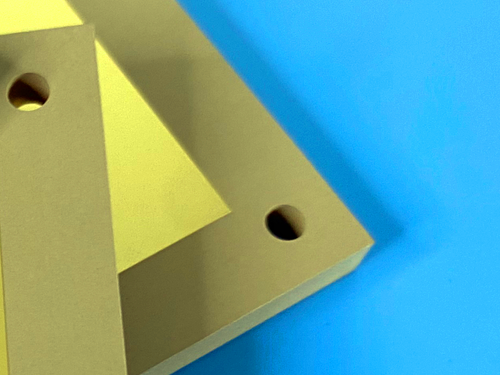

Rogers TMM10i Double-Sided PCB--15mil Core with Pure Gold Plating for RF and Microwave Use
Rogers TMM10i Double-Sided PCB--15mil Core with Pure Gold Plating for RF and Microwave Use
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
1. Introduction of Rogers TMM10i PCB
Rogers TMM10i Double-Sided PCB is a premium rigid circuit board crafted specifically for high-performance RF, microwave, strip-line, and micro-strip applications, utilizing the advanced characteristics of Rogers TMM10i isotropic thermoset microwave material. As a ceramic thermoset polymer composite, TMM10i high frequency laminate merges the optimal properties of ceramic and PTFE substrates while enabling the convenience of soft substrate processing methods—eliminating the need for complex or specialized manufacturing techniques. With dimensions of 102.8mm x 59mm per unit (±0.15mm) and a finished thickness of 0.5mm, TMM10i PCB is engineered to deliver stable electrical performance and long-term reliability, making it a top choice for demanding high-frequency electronic projects. Each PCB undergoes 100% electrical testing before shipment, ensuring adherence to IPC-Class-2 quality standards and meeting the strict requirements of global markets. Featuring 1oz outer copper weight (1.4 mils), 20μm via plating thickness, and a nickel-free Pure Gold Plating surface finish, paired with no silkscreen or solder mask on either side, this board is optimized for superior signal integrity in high-frequency scenarios. Boasting a minimum trace/space of 5/6 mils and a minimum hole size of 0.25mm, Rogers TMM10i 15mil PCB achieves an ideal balance between precision and manufacturability, suitable for a diverse range of advanced high-frequency electronic assemblies available worldwide.
2. Features
- Isotropic dielectric constant (Dk) of 9.80 ± .245
- Dissipation factor of .0020 at 10GHz for enhanced signal efficiency
- Thermal coefficient of Dk of -43 ppm/°K for stable performance across temperature variations
- Coefficient of thermal expansion (CTE) matched to copper, reducing thermal stress
- Coefficient of Thermal Expansion (x, y, z): 19ppm/K, 19ppm/K, 20ppm/K
- Decomposition Temperature (Td) of 425 °C (TGA) for high-temperature durability
- Thermal Conductivity of 0.76 W/mk for efficient heat dissipation
- Available in a thickness range of .0015 to .500 inches (± .0015”)
3. Benefits
- Excellent mechanical properties that resist creep and cold flow, ensuring long-term stability in harsh operating environments
- Resistance to process chemicals minimizes damage during fabrication, improving production yields and reducing costs
- No sodium napthanate treatment required prior to electroless plating, simplifying manufacturing processes
- Thermoset resin base enables reliable wire-bonding, preventing pad lifting or substrate deformation
- Consistent and reliable wirebonding performance enhances the overall durability and functionality of the PCB
4. PCB Construction Details
Construction Item |
Specification |
Base material |
TMM10i |
Layer count |
Double sided |
Board dimensions |
102.8mm x 59 mm=1PCS, ±0.15mm |
Minimum Trace/Space |
5/6 mils |
Minimum Hole Size |
0.25mm |
Blind vias |
No |
Finished board thickness |
0.5mm |
Finished Cu weight |
1oz (1.4 mils) outer layers |
Via plating thickness |
20 μm |
Surface finish |
Pure Gold Plating (No nickel) |
Top Silkscreen |
No |
Bottom Silkscreen |
No |
Top Solder Mask |
No |
Bottom Solder Mask |
No |
Electrical test |
100% Electrical test used prior to shipment |
5. PCB Stackup
2-layer rigid PCB
- Copper_layer_1 - 35 μm
- Rogers TMM10i Core - 0.381 mm (15mil)
- Copper_layer_2 - 35 μm
6. PCB Statistics
- Components: 12
- Total Pads: 36
- Thru Hole Pads: 21
- Top SMT Pads: 15
- Bottom SMT Pads: 0
- Vias: 13
- Nets: 2
7. Type of Artwork Supplied
Gerber RS-274-X
8. Quality Standard
IPC-Class-2
9. Availability
Worldwide
10. Typical Applications
- RF and microwave circuitry
- Power amplifiers and combiners
- Filters and coupler
- Satellite communication systems
- Global Positioning Systems Antennas
- Patch Antennas
- Dielectric polarizers and lenses
- Chip testers
- 15mil TMM10i Double-Sided Pure Gold Plating assemblies
11. Conclusion
2-layers Rogers TMM10i is a precision-manufactured circuit board that integrates the outstanding properties of Rogers TMM10i isotropic thermoset material with reliable double-sided construction, delivering consistent and high-performance results for a wide range of advanced RF and microwave applications. Compliant with IPC-Class-2 quality standards, produced with strict quality control measures, and subjected to 100% electrical testing before shipment, this PCB guarantees reliability, durability, and compatibility with standard PWB manufacturing processes. Its 15mil TMM10i core, nickel-free Pure Gold Plating, optimized dimensions, and global availability make it a versatile and high-value choice for satellite communication, antenna systems, power amplifiers, and other demanding high-frequency electronic designs.
