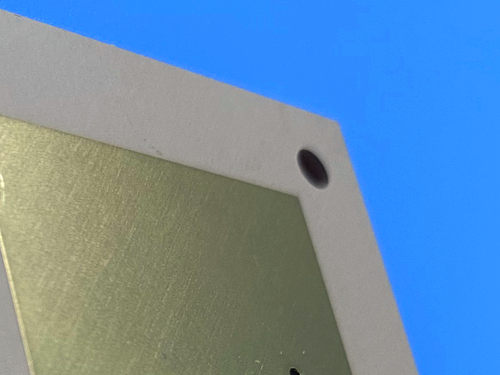

Rogers TMM4 2-Layer 15mil High Frequency PCB High Reliability for RF Microwave and Satellite Communication Applications
Rogers TMM4 2-Layer 15mil High Frequency PCB High Reliability for RF Microwave and Satellite Communication Applications
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
1. Introduction of 2-Layer Rogers TMM4 PCB
Rogers TMM4 2-Layer High Frequency PCB is a high-performance rigid circuit board specifically engineered for RF, microwave, and high-frequency applications, leveraging the advanced properties of Rogers TMM4 thermoset microwave material. As a ceramic-hydrocarbon thermoset polymer composite, 2-layer TMM4 PCB combines the mechanical robustness of ceramic laminates with the processability of traditional materials, eliminating the need for specialized production techniques often required for PTFE-based boards. Measuring 102mm x 85mm (±0.15mm) with a finished thickness of 0.5mm, this PCB is designed to deliver consistent electrical performance and reliable functionality, making it an ideal choice for demanding high-frequency projects. Each unit undergoes 100% electrical testing prior to shipment, ensuring compliance with IPC-Class-2 standards and meeting the rigorous requirements of global markets. The board features 1oz outer copper weight (35μm), 20μm via plating thickness, and an Immersion Gold surface finish, paired with no silkscreen or solder mask on either side, optimizing it for high-frequency signal integrity. With a minimum trace/space of 5/7 mils and a minimum hole size of 0.4mm, Rogers TMM4 high-frequency material balances precision with manufacturability, suitable for a wide range of high-frequency electronic assemblies available worldwide.
2. Features
- Dielectric constant (Dk) of 4.50 ± .045
- Dissipation factor of .0020 at 10GHz
- Thermal coefficient of Dk of 15ppm/°K
- Coefficient of thermal expansion matched to copper
- Coefficient of Thermal Expansion: x of 16 ppm/°K, y of 16 ppm/°K, z of 21 ppm/°K
- Decomposition Temperature (Td) of 425 °C TGA
- Thermal Conductivity of 0.7 W/mk
- Moisture absorption of 0.07%-0.18%
- Available in a thickness range of .0015 to .500 inches (± .0015”)
3. Benefits
- Mechanical properties resist creep and cold flow, ensuring long-term stability in harsh environments
- Resistant to process chemicals, reducing damage during fabrication and improving production yields
- Based on a thermoset resin, allowing for reliable wire-bonding without pad lifting or substrate deformation
- High reliability of plated through holes, enhancing the durability and performance of the PCB
- All common PWB processes can be used with TMM 4 materials, simplifying manufacturing and reducing production costs
4. PCB Construction Details
Construction Item |
Specification |
Base material |
TMM4 |
Layer count |
2 layers |
Board dimensions |
102mm x 85mm=1PCS, ±0.15mm |
Minimum Trace/Space |
5/7 mils |
Minimum Hole Size |
0.4mm |
Blind vias |
No |
Finished board thickness |
0.5mm |
Finished Cu weight |
1oz (1.4 mils) outer layers |
Via plating thickness |
20 μm |
Surface finish |
Immersion Gold |
Top Silkscreen |
No |
Bottom Silkscreen |
No |
Top Solder Mask |
No |
Bottom Solder Mask |
No |
Electrical test |
100% Electrical test used prior to shipment |
5. PCB Stackup
2-layer rigid PCB
- Copper_layer_1 - 35 μm
- Rogers TMM4 Core - 0.381 mm (15mil)
- Copper_layer_2 - 35 μm
6. PCB Statistics
- Components: 23
- Total Pads: 42
- Thru Hole Pads: 12
- Top SMT Pads: 30
- Bottom SMT Pads: 0
- Vias: 36
- Nets: 2
7. Type of Artwork Supplied
Gerber RS-274-X
8. Accepted Standard
IPC-Class-2
9. Availability
Worldwide
10. Typical Applications
- RF and microwave circuitry
- Power amplifiers and combiners
- Filters and coupler
- Satellite communication systems
- Global Positioning Systems Antennas
- Patch Antennas
- Dielectric polarizers and lenses
- Chip testers
11. Conclusion
Rogers TMM4 2-Layer PCB is a precision-engineered circuit board that integrates the exceptional properties of Rogers TMM4 thermoset material with reliable 2-layer construction, delivering consistent high-frequency performance for a wide range of advanced electronic applications. Compliant with IPC-Class-2 standards, manufactured with strict quality control, and subjected to 100% electrical testing before shipment, TMM4 PCB Board ensures reliability, durability, and compatibility with common PWB manufacturing processes. Its global availability, optimized dimensions, and tailored features make it a versatile choice for RF, microwave, satellite communication, and antenna applications, meeting the demands of modern high-frequency electronic design.
