1. Introduction

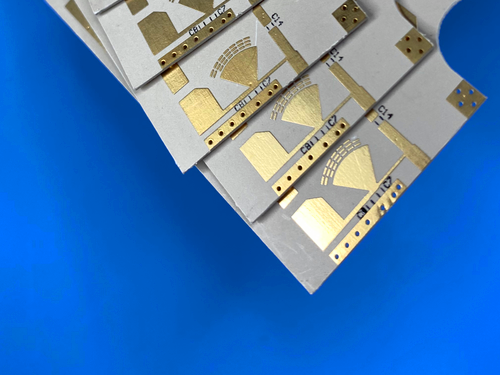

Taconic CER-10 2-Layer PCB is a high-performance rigid circuit board specifically developed for advanced microwave and high-frequency applications, utilizing the superior properties of Taconic CER-10 organic-ceramic laminate from the ORCER product family. As a premium composite integrating Taconic’s advanced ceramic fill technology with coated PTFE fiberglass expertise, 2-layer CER-10 PCB features woven glass reinforcement, delivering exceptional interlaminar bond strength and solder resistance that set it apart for demanding high-performance projects. With a finished thickness of 25mil (0.635mm) and board dimensions of 89.3mm x 56.9mm (2 Types, 2 PCS total), CER-10 PCB is engineered to provide stable electrical performance and reliable functionality in critical microwave systems. Each unit undergoes 100% electrical testing prior to shipment, ensuring strict compliance with IPC-Class-2 accepted standards and meeting the rigorous quality requirements of global markets. Equipped with 1oz outer copper weight (1.4 mils), 20μm via plating thickness, and an Immersion Gold surface finish, paired with a Black top silkscreen (no bottom silkscreen) and no solder mask on either side, this PCB is optimized for signal integrity and compatibility with high-frequency designs. Boasting a minimum trace/space of 5/6 mils and a minimum hole size of 0.4mm (with no blind vias),Taconic CER-10 2-Layer PCB achieves an excellent balance between precision manufacturing and practical usability, suitable for a wide range of microwave passive components and high-frequency assemblies available worldwide.

2. Features of Taconic CER-10 2-Layer High Frequency PCB

1. Constructed with Taconic CER-10 organic-ceramic laminate from the ORCER product family
2. Dielectric constant (Dk) of 10 at 10 GHz for consistent high-frequency performance
3. Dissipation factor of 0.0035 at 10 GHz, minimizing signal loss in critical applications
4. Ultra-low Moisture Absorption of 0.02%, ensuring stability in varying environmental conditions
5. Coefficient of Thermal Expansion (CTE): X axis 13 ppm/°C, Y axis 15 ppm/°C, Z axis 46 ppm/°C
6. 2-layer rigid PCB construction with woven glass reinforcement
7. Minimum Trace/Space of 5/6 mils for precise circuit design
8. Minimum Hole Size of 0.4mm with no blind vias
9. Immersion Gold surface finish for enhanced conductivity and corrosion resistance
10. Black top silkscreen (no bottom silkscreen) for clear component identification (where applicable)

3. Benefits of Taconic CER-10 2-Layer High Frequency PCB

1. Exceptional Interlaminar Bond Strength & Solder Resistance, ensuring durability during assembly and long-term use
2. Low Moisture Absorption paired with stable dielectric constant (Dk) over frequency, maintaining performance consistency in diverse environments
3. Enhanced Dimensional Stability & Increased Flexural Strength, reducing warpage and ensuring structural integrity in high-frequency applications
4. Low Z-Axis CTE, supporting reliable Plated Through Holes (PTHs) and minimizing thermal stress-related failures
5. Supports Circuit Board Miniaturization, enabling more compact and efficient high-frequency component designs
6. Flammability Rating: V-0 (per IPC-TM 650), ensuring compliance with safety standards for electronic assemblies
7. Compatible with standard manufacturing processes, simplifying production and reducing lead times
8. 100% electrical testing prior to shipment guarantees consistent quality and reliable performance

4. PCB Construction Details

Construction Item	Specification
Base material	CER-10
Layer count	2 layers
Board dimensions	89.3mm x 56.9 mm=2Types=2PCS
Minimum Trace/Space	5/6 mils
Minimum Hole Size	0.4mm
Blind vias	No
Finished board thickness	25mil (0.635mm)
Finished Cu weight	1 oz (1.4 mils) outer layers
Via plating thickness	20 μm
Surface finish	Immersion Gold
Top Silkscreen	Black
Bottom Silkscreen	No
Top Solder Mask	No
Bottom Solder Mask	No
Electrical test	100% Electrical test used prior to shipment

5. PCB Stackup

2-layer rigid PCB

1. Copper_layer_1 - 35 μm
2. CER-10 Substrate - 25mil (0.635mm)
3. Copper_layer_2 - 35 μm

6. PCB Statistics

1. Components: 25
2. Total Pads: 45
3. Thru Hole Pads: 21
4. Top SMT Pads: 24
5. Bottom SMT Pads: 0
6. Vias: 36
7. Nets: 2

7. Type of Artwork Supplied

Gerber RS-274-X

8. Accepted Standard

IPC-Class-2

9. Availability

Worldwide

10. Typical Applications

1. Power amplifiers
2. Waveguide filters
3. Directional couplers
4. Other microwave passive components

11. Conclusion

Taconic 2-Layer CER-10 High Frequency PCB is a precision-engineered circuit board that integrates the exceptional properties of Taconic CER-10 organic-ceramic laminate with reliable 2-layer construction, delivering consistent high-frequency performance for a wide range of advanced microwave passive components. Compliant with IPC-Class-2 accepted standards, manufactured with strict quality control measures, and subjected to 100% electrical testing before shipment, this PCB ensures reliability, durability, and compatibility with standard PWB manufacturing processes. Its 25mil thickness, Immersion Gold surface finish, low moisture absorption, stable dielectric constant, and global availability make it a versatile and high-value choice for power amplifiers, waveguide filters, directional couplers, and other demanding microwave applications, meeting the rigorous demands of modern high-frequency electronic design.
