2. Features

1. Constructed with Rogers CuClad 217 cross-plied, woven fiberglass and PTFE composite laminates
2. Dielectric Constant (Dk) of 2.17 or 2.2 at 10GHz / 1MHz for optimal signal propagation
3. Ultra-low Dissipation Factor of 0.0009 at 10GHz, minimizing signal loss in high-frequency applications
4. Low Moisture Absorption of 0.02%, ensuring stable performance in varying environmental conditions
5. Strong Peel Strength of 14 lbs/in, enhancing durability and reliability of copper-to-substrate bonding
6. Low outgassing performance: Total Mass Loss (TML) 0.01%, Collected Volatile Condensable Material (CVCM) 0.01%, and 0 Water Vapor Regain (WVR)
7. Cross-plied woven fiberglass construction, with alternating plies oriented 90 degrees to each other
8. High PTFE to Glass Ratio, contributing to low Dk and superior electrical performance
9. Better dielectric constant uniformity compared to comparable non-woven fiberglass reinforced laminates
10. 2-layer rigid PCB design with minimum Trace/Space of 4/5 mils and minimum Hole Size of 0.2mm (no blind vias)
11. Immersion Gold surface finish, White top silkscreen, and Blue top solder mask (no bottom silkscreen/solder mask)

3. Benefits of Rogers CuClad 217 2-Layer High Frequency PCB

1. Stable dielectric constant (Dk) across a wide frequency range, ensuring consistent performance in diverse high-frequency scenarios
2. Low Dk enables wider line widths, effectively reducing insertion loss and optimizing signal transmission efficiency
3. Minimal circuit losses even at high frequencies, enhancing the overall performance of radar and microwave systems
4. Improved dimensional stability provides greater design flexibility during PCB fabrication, simplifying manufacturing processes
5. Enables designers to meet strict industry specifications for high-performance electronic systems
6. Electrical and Mechanical Isotropy in the X-Y Plane, ensuring uniform performance across the entire PCB surface
7. Ideal for Dk-sensitive circuits, making it suitable for critical applications like electronic countermeasures and support measures
8. Low moisture absorption and outgassing properties ensure reliability in harsh or controlled environments
9. 100% electrical testing prior to shipment guarantees consistent quality and reduces the risk of post-installation failures
10. Global availability and compatibility with standard PWB manufacturing processes, reducing lead times and production costs

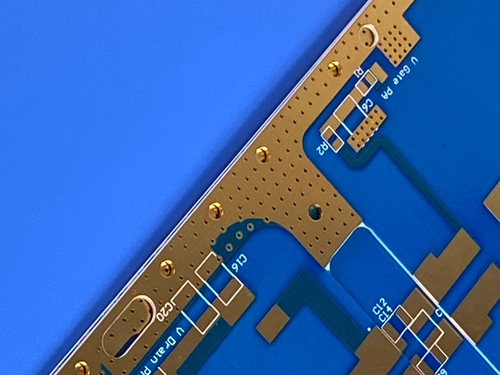

4. PCB Construction Details

Construction Item	Specification
Base material	CuClad 217
Layer count	2 layers
Board dimensions	89mm x 56 mm=1PCS, ±0.15mm
Minimum Trace/Space	4/5 mils
Minimum Hole Size	0.2mm
Blind vias	NO
Finished board thickness	20mil (0.508mm)
Finished Cu weight	1oz (1.4 mils) outer layers
Via plating thickness	20 μm
Surface finish	Immersion gold
Top Silkscreen	White
Bottom Silkscreen	No
Top Solder Mask	Blue
Bottom Solder Mask	No
Electrical test	100% Electrical test used prior to shipment

5. PCB Stackup

2-layer rigid PCB

1. Copper_layer_1 - 35 μm
2. Rogers CuClad 217 Core - 0.508 mm (20mil)
3. Copper_layer_2 - 35 μm

6. PCB Statistics

1. Components: 25
2. Total Pads: 130
3. Thru Hole Pads: 105
4. Top SMT Pads: 25
5. Bottom SMT Pads: 0
6. Vias: 45
7. Nets: 2

7. Type of Artwork Supplied

Gerber RS-274-X

8. Quality Standard

IPC-Class-2

9. Availability

Worldwide

10. Typical Applications

1. Radars
2. Electronic Countermeasures
3. Electronic Support Measures
4. Microwave Components (LNAs, filters, couplers, etc.)

11. Conclusion

Rogers 2-Layer CuClad 217 High Frequency PCB is a precision-engineered circuit board that integrates the outstanding properties of Rogers CuClad 217 cross-plied PTFE-fiberglass laminates with reliable 2-layer construction, delivering exceptional performance for advanced radar, electronic countermeasures, and microwave components. Compliant with IPC-Class-2 quality standards, manufactured with strict quality control measures, and subjected to 100% electrical testing before shipment, this PCB ensures reliability, durability, and compatibility with standard PWB manufacturing processes. Its 20mil thickness, low Dk, stable electrical performance, Immersion Gold surface finish, and global availability make it a versatile and high-value choice for Dk-sensitive circuits and demanding high-frequency applications, meeting the rigorous demands of modern electronic system design.
