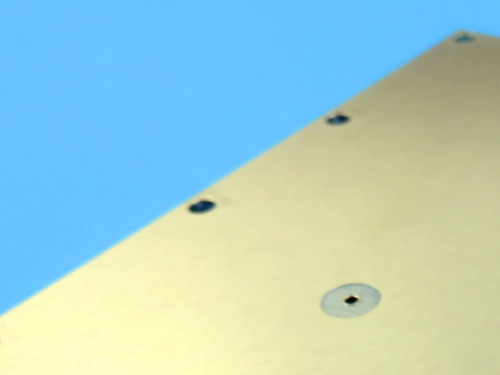

F4BTMS615 2-Layer 0.3mm High Frequency PCB from Wangling- High Reliability for Aerospace, RF and Radar Applications
F4BTMS615 2-Layer 0.3mm High Frequency PCB from Wangling- High Reliability for Aerospace, RF and Radar Applications
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
1. Introduction
The F4BTMS615 2-layer high frequency PCB is an upgraded high-performance circuit board developed from the F4BTM series, featuring technological breakthroughs in both material formulation and manufacturing processes to meet the rigorous demands of high-frequency and aerospace applications. Enriched with a significant amount of ceramics and reinforced with ultra-thin, ultra-fine glass fiber cloth, F4BTMS615 PCB delivers substantially improved material performance and a broader range of dielectric constants, positioning it as a high-reliability solution suitable for critical aerospace use cases and capable of replacing similar foreign products. By integrating a small quantity of ultra-thin, ultra-fine glass fiber cloth with a large amount of uniformly distributed special nano-ceramics mixed with polytetrafluoroethylene resin, F4BTMS615 PCB substrate minimizes the negative impact of glass fiber on electromagnetic wave propagation—effectively reducing dielectric loss, enhancing dimensional stability, and decreasing X/Y/Z anisotropy of the material. This advanced composition also extends the usable frequency range, improves electrical strength, boosts thermal conductivity, and ensures excellent low thermal expansion coefficient and stable dielectric temperature characteristics. As a standard feature, F4BTMS615 high-frequency material is equipped with RTF low roughness copper foil, which reduces conductor loss while providing excellent peel strength, and it is compatible with both copper and aluminum bases for versatile installation options.
2. F4BTMS615 PCB Features
- Dielectric constant (Dk) of 6.15 at 10GHz
- Dissipation factor of 0.0020 at 10GHz and 0.0023 at 20GHz
- Coefficient of Thermal Expansion (CTE): x-axis 10 ppm/°C, y-axis 12 ppm/°C, z-axis 40 ppm/°C (operating temperature range: -55°C to 288°C)
- Low thermal coefficient of Dk at -96 ppm/°C (operating temperature range: -55°C to 150°C)
- High thermal conductivity of 0.67 W/mk
- Moisture absorption of 0.1%
3. F4BTMS615 PCB Benefits
- Minimized dielectric loss and optimized electromagnetic wave propagation ensure superior signal integrity, ideal for high-frequency applications above 1GHz.
- Enhanced dimensional stability and reduced X/Y/Z anisotropy prevent warping or delamination, even under extreme temperature fluctuations, improving long-term reliability.
- Low roughness RTF copper foil reduces conductor loss and delivers excellent peel strength, extending the PCB’s service life and ensuring secure component attachment.
- Stable dielectric temperature characteristics and low thermal coefficient of Dk maintain consistent performance across a wide operating temperature range, suitable for harsh environments.
- High thermal conductivity facilitates efficient heat dissipation, protecting components and preserving performance in high-power applications.
- Low moisture absorption (0.1%) enhances durability and reliability in humid or variable environmental conditions.
- Compatible with copper and aluminum bases, offering flexibility in design and installation for diverse application scenarios.
- Meets IPC-Class 2 quality standards, ensuring balanced cost and performance for industrial and aerospace applications without compromising functionality.
- High-reliability construction makes it a viable replacement for similar foreign high-frequency PCB products, supporting cost-effectiveness and supply chain stability.
4. PCB Construction Details
Construction Item |
Specification |
Board Dimensions |
45.8mm x 102.1mm = 1PCS, +/- 0.15mm |
Minimum Trace/Space |
4/5 mils |
Minimum Hole Size |
0.3mm |
Blind Vias |
No |
Finished Board Thickness |
0.3mm |
Finished Cu Weight (Outer Layers) |
1oz (1.4 mils) |
Via Plating Thickness |
20 μm |
Surface Finish |
Immersion Tin |
Top Silkscreen |
No |
Bottom Silkscreen |
No |
Top Solder Mask |
No |
Bottom Solder Mask |
No |
Electrical Test (Prior to Shipment) |
100% Electrical Test |
5. PCB Stackup
2-layer rigid PCB, with the following structure (from top to bottom):
- Copper_layer_1 - 35 μm
- F4BTMS615 Core - 0.254 mm (10mil)
- Copper_layer_2 - 35 μm
6. PCB Statistics
- Components: 18
- Total Pads: 42
- Thru Hole Pads: 15
- Top SMT Pads: 27
- Bottom SMT Pads: 0
- Vias: 35
- Nets: 2
7. Type of Artwork Supplied
Gerber RS-274-X
8. Quality Standard
IPC-Class-2 (meets industry-set quality standards for industrial and aerospace products, balancing cost and performance with minimal cosmetic imperfections that do not affect functionality).
9. Availability
Worldwide
10. Typical Applications
- Aerospace equipment, space and cabin equipment
- Microwave, RF (radio frequency) systems
- Radar, military radar systems
- Feed networks
- Phase-sensitive antennas, phased array antennas
- Satellite communications, and more
Summary
F4BTMS615 2-Layer High Frequency PCB is a high-reliability, upgraded circuit board designed for critical high-frequency applications, leveraging advanced F4BTMS material technology to deliver exceptional performance. With a 0.3mm thickness, 2-layer rigid construction, and compliance with IPC-Class 2 quality standards, it offers minimized dielectric loss, stable dimensionality, and excellent thermal management—making it ideal for aerospace, radar, RF, and satellite communication systems. Compatible with copper and aluminum bases, equipped with RTF low roughness copper foil, and supported by worldwide availability, F4BTMS615 laminate PCB serves as a cost-effective and reliable alternative to similar foreign products, meeting the stringent requirements of modern high-frequency electronics.
