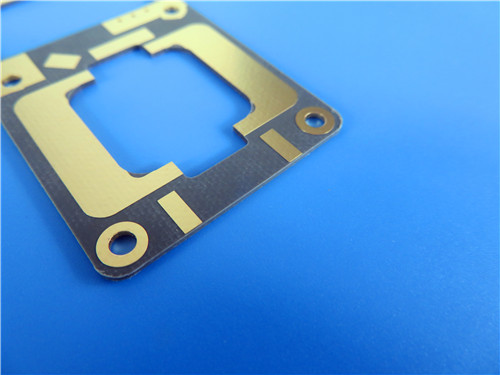

Rogers RT/Duroid 5880LZ 10mil Double-Layer PCB Board: Rogers 5880 High-Performance RF PCB with Immersion Gold
Rogers RT/Duroid 5880LZ 10mil Double-Layer PCB Board: Rogers 5880 High-Performance RF PCB with Immersion Gold
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
1. Introduction
Rogers 10mil 2-layer RT/Duroid 5880LZ PCB is crafted from advanced filled polytetrafluoroethylene (PTFE) composites, specifically engineered to meet the rigorous demands of precision stripline and microstrip circuit applications. The unique filler composition of this high-frequency circuit material delivers exceptional low density, making it an ideal lightweight solution for performance-critical, weight-sensitive electronic systems.
A standout attribute of Rogers RT-Duroid 5880LZ high-frequency laminate is its ultra-low and consistent dielectric constant, which maintains uniformity across panels and remains stable over a broad frequency spectrum. Complemented by a low dissipation factor, this high-frequency substrate extends its operational utility to Ku-band and higher frequency ranges, ensuring reliable signal integrity in high-speed, high-frequency applications.
In terms of manufacturability and durability, Rogers RT Duroid 5880LZ circuit board material offers excellent processability—easily cut, sheared, and machined into custom shapes. It also exhibits robust chemical resistance, withstanding all common solvents and reagents (both hot and cold) used in printed circuit etching, as well as edge and hole plating processes, enhancing its compatibility with standard PCB manufacturing workflows.
2. Key Features
- Dielectric Constant (DK): 2.0 ± 0.04 at 10 GHz and 23°C
- Dissipation Factor: 0.0021 to 0.0027 at 10 GHz and 23°C
- Low Z-Axis Coefficient of Thermal Expansion: 40 ppm/°C
- Superior Outgassing Properties: TML 0.01%, CVCM 0.01%, WVR 0.01%
- Lightweight Construction: Density of 1.4 gm/cm³
- Flammability Rating: UL 94V-0
- Lead-Free Process Compatibility: Aligns with modern environmental and manufacturing standards
3. Benefits
- Consistent dielectric performance ensures precise impedance matching for high-frequency stripline and microstrip circuits
- Low dissipation factor enables reliable signal transmission up to Ku-band and beyond, minimizing signal loss
- Lightweight, low-density design meets the strict weight requirements of airborne and military applications
- Excellent chemical resistance and processability simplify manufacturing, reducing production costs and lead times
- Low Z-axis CTE enhances dimensional stability under temperature variations, improving long-term reliability
- UL 94V-0 flammability rating and lead-free compatibility ensure compliance with global safety and environmental regulations
- Superior outgassing properties make it suitable for high-vacuum and space-related applications
4. PCB Construction Details
- Base material: Rogers RT Duroid 5880LZ high-frequency composite
- Layer count: 2-layer (rigid circuit board)
- Board dimensions: 78 mm x 96 mm = 1PCS, tolerance +/- 0.15mm
- Minimum Trace/Space: 5/6 mils
- Minimum Hole Size: 0.25mm
- Blind vias: None
- Finished board thickness: 0.3mm (10mil core)
- Finished Cu weight: 1oz (1.4 mils) outer layers
- Via plating thickness: 20 μm
- Surface finish: Immersion Gold
- Top Silkscreen: White
- Bottom Silkscreen: No
- Top Solder Mask: Green
- Bottom Solder Mask: No
- Quality inspection: 100% Electrical test conducted prior to shipment
5. PCB Stackup
2-layer rigid high-frequency circuit board
- Copper_layer_1 - 35 μm (1oz)
- Rogers RT Duroid 5880LZ core material - 0.254 mm (10mil)
- Copper_layer_2 - 35 μm (1oz)
6. PCB Statistics
- Components: 18
- Total Pads: 34
- Thru Hole Pads: 28
- Top SMT Pads: 6
- Bottom SMT Pads: 0
- Vias: 33
- Nets: 2
7. Type of Artwork Supplied
Gerber RS-274-X
8. Accepted Standard
IPC-Class-2
9. Availability
Worldwide
10. Typical Applications
Airborne antenna systems
Lightweight feed networks
Military radar systems
Missile guidance systems
Point-to-point digital radio antennas
11.Conclusion
Rogers RT Duroid 5880LZ Immersion Gold PCB is a high-performance high-frequency solution tailored for precision RF, military, and airborne applications. Leveraging advanced filled PTFE composite technology, it delivers consistent dielectric performance, low signal loss, and lightweight construction, while complying with IPC-Class-2 standards and lead-free requirements. Its excellent processability, chemical resistance, and global availability make it a preferred choice for engineers developing high-reliability, weight-sensitive electronic systems.
