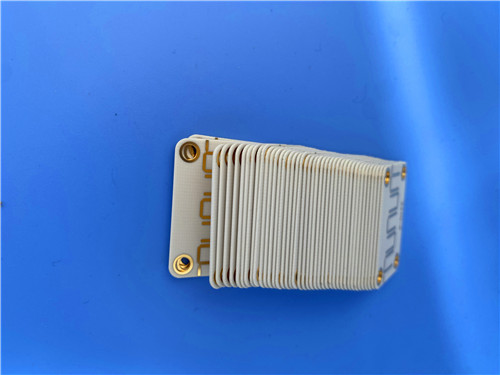

Rogers AD300D 2-Layer 40mil PTFE-based PCB with EPIG (Nickel-Free) for Antenna and Wireless Systems
Rogers AD300D 2-Layer 40mil PTFE-based PCB with EPIG (Nickel-Free) for Antenna and Wireless Systems
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
1. Rogers AD300D PCB Introduction
Crafted from ceramic-filled, glass-reinforced PTFE laminate, Rogers AD300D PCB is a 2-layer rigid high-frequency solution engineered for peak electrical performance in wireless antenna applications.
Rogers AD300D laminate is specially engineered to deliver a tightly controlled dielectric constant, ultra-low insertion loss, and outstanding passive intermodulation (PIM) performance to satisfy the rigorous requirements of modern wireless antenna systems. As a cost-effective PTFE resin-based material, Rogers AD300D supports standard PTFE fabrication processes while significantly improving both electrical and mechanical stability. With consistent high-frequency performance and reliable manufacturability, Rogers AD300D PCB substrate serves as an ideal solution for a wide range of wireless communication and antenna applications.
2. Rogers AD300D PCB Features
Stable dielectric constant (Dk) of 2.94 at 10 GHz/23°C
Ultra-low dissipation factor (Df) of 0.0021 at 10 GHz/23°C
CTE: X-axis 24 ppm/°C, Y-axis 23 ppm/°C, Z-axis 98 ppm/°C (-55 to 288°C)
Thermal coefficient of dielectric constant (TcDk): -73 ppm/°C
UL 94 V-0 flame retardant rating
3. Rogers AD300D PCB Benefits
Ultra-low loss tangent (<0.002 at 10 GHz) for excellent circuit performance across all typical wireless frequency bands
Tightly controlled dielectric constant (±0.05) ensures repeatable and reliable circuit performance
Extremely low PIM level (-159 dBc at 30 mil, 1900 MHz) improves antenna performance and reduces yield loss from PIM-related issues
Excellent dimensional stability supports consistent circuit performance and enhanced manufacturing yields
4. PCB Construction Details
Item |
Specification |
Base material |
AD300D |
Layer count |
2-layer / Double-sided rigid PCB |
Board dimensions |
67mm x 102.6mm per piece, +/- 0.15mm |
Minimum Trace/Space |
4/6 mils |
Minimum Hole Size |
0.4mm |
Blind vias |
No Blind vias |
Finished board thickness |
1.2mm |
Finished Cu weight |
1oz (1.4 mils) outer layers |
Via plating thickness |
20 μm |
Surface finish |
EPIG (nickel free) |
Top Silkscreen |
No |
Bottom Silkscreen |
No |
Top Solder Mask |
No |
Bottom Solder Mask |
No |
Quality Control |
100% Electrical test prior to shipment |
5. PCB Stackup
2-layer rigid PCB
Copper_layer_1 - 35 μm
AD300D Core - 1.016 mm (40mil)
Copper_layer_2 - 35 μm
6. PCB Statistics
Components: 15
Total Pads: 41
Thru Hole Pads: 29
Top SMT Pads: 12
Bottom SMT Pads: 0
Vias: 36
Nets: 2
7. Artwork & Quality Standards
Type of artwork supplied: Gerber RS-274-X
Quality standard: IPC-Class-2
Availability: worldwide
8. Typical Applications
Cellular infrastructure base station antenna
Automotive telematics antenna systems
Commercial satellite radio antenna
9. Conclusion
Rogers 2-Layer AD300D high frequency PCB provides stable dielectric properties, ultra-low signal loss, and exceptional low-PIM performance, making it a highly reliable solution for wireless and antenna systems. With a 40mil core thickness, 1.2mm finished board thickness, EPIG nickel-free surface finish, and IPC Class 2 quality, AD300D Rogers based PCB ensures consistent performance in base station, automotive telematics, and satellite communication applications worldwide.
