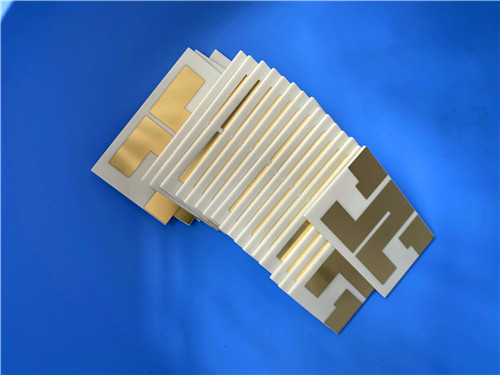

Taconic RF-60A 2-Layer High Frequency PCB 50mil Pure Gold Plated Circuit Board for RF Power and Antenna Systems
Taconic RF-60A 2-Layer High Frequency PCB 50mil Pure Gold Plated Circuit Board for RF Power and Antenna Systems
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
1. Introduction
Taconic RF-60A is a high-performance 2-layer rigid high-frequency circuit board, manufactured using organic-ceramic laminates from Taconic’s ORCER product line with woven glass reinforcement. Built on Taconic’s proven expertise in ceramic fill technology and coated PTFE fiberglass solutions, RF-60A substrate delivers exceptional interlaminar bond strength and reliable solder resistance. Its proprietary material composition ensures ultra-low moisture absorption and uniform, stable electrical properties across operating conditions. The woven glass reinforcement further enhances the board’s dimensional stability and flexural strength, while the low Z-axis thermal expansion rate guarantees reliable plated-through-hole performance even in extreme thermal environments, making it a dependable choice for high-reliability RF and microwave circuit applications.
2. Taconic RF-60A PCB Features
- Stable dielectric constant (Dk) of 6.15 at 10 GHz for consistent RF signal transmission
- Low dissipation factor of 0.0038 at 10 GHz under 23°C, minimizing high-frequency signal loss
- Ultra-low moisture absorption rate of 0.02%, maintaining stable performance in humid conditions
- Thermal conductivity of 0.4W/MK for effective heat dissipation in RF power circuits
- Controlled CTE values: X-axis 9 ppm/°C, Y-axis 8 ppm/°C, Z-axis 69 ppm/°C
- Low outgassing performance: 0.02% TML, 0.01% WVR, meeting strict aerospace and industrial standards
3. Taconic RF-60A PCB Benefits
- Fully RoHS and WEEE compliant, aligning with global environmental protection requirements
- Features exceptional interlaminar bond strength for enhanced structural durability
- Ultra-low moisture absorption prevents performance degradation in harsh environments
- Delivers enhanced dimensional stability for precise circuit manufacturing and assembly
- Low Z-axis thermal expansion improves plated-through-hole reliability under thermal cycling
- Maintains stable dielectric constant (Dk) across wide frequency ranges for consistent performance
- Increased flexural strength boosts board durability and resistance to mechanical stress
4. PCB Construction Details
Item |
Specification |
Base material |
RF-60A |
Layer count |
2-layer rigid PCB |
Board dimensions |
87mm x 29mm per piece, tolerance +/- 0.15mm |
Minimum Trace/Space |
5/6 mils |
Minimum Hole Size |
0.4mm |
Blind vias |
No Blind vias |
Finished board thickness |
1.5mm |
Finished Cu weight |
1 oz (1.4 mils) outer layers |
Via plating thickness |
20 μm |
Surface finish |
Pure Gold Plating 100 uinch |
Top Silkscreen |
No |
Bottom Silkscreen |
No |
Top Solder Mask |
No |
Bottom Solder Mask |
No |
Quality Control |
100% Electrical test prior to shipment |
5. PCB Stackup
2-layer rigid PCB
- Copper_layer_1 - 35 μm
- RF-60A - 1.27 mm (50mil)
- Copper_layer_2 - 35 μm
6. PCB Statistics
- Components: 24
- Total Pads: 39
- Thru Hole Pads: 17
- Top SMT Pads: 22
- Bottom SMT Pads: 0
- Vias: 48
- Nets: 2
7. Artwork & Quality Standards
- Type of artwork supplied: Gerber RS-274-X
- Accepted standard: IPC-Class-2
- Availability: worldwide
8. Typical Applications
- Power Amplifiers
- Filters, Couplers
- Miniaturized Antennas
- Passive components
9. Conclusion
Taconic RF-60A 2-Layer high frequency PCB integrates stable dielectric performance, low signal loss and robust mechanical strength, serving as a high-quality solution for demanding RF applications. Featuring 1.5mm finished thickness, 100u-inch pure gold plating surface finish, IPC Class 2 compliance and low thermal expansion properties, Taconic RF-60A PCB delivers consistent, reliable performance in power amplifiers, filters, miniaturized antennas and passive components, catering to global industrial and RF electronic market demands.
