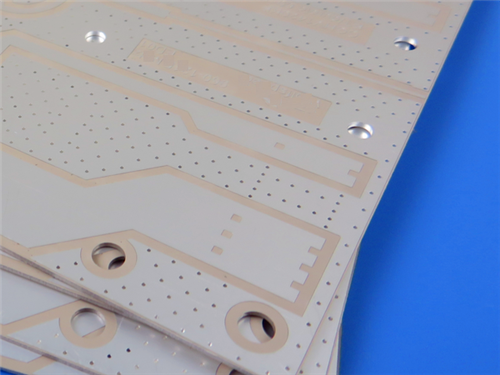

20mil Rogers RO3010 Double-Layer PCB Immersion Silver PCB for Automotive Radar and Wireless Systems Use
20mil Rogers RO3010 Double-Layer PCB Immersion Silver PCB for Automotive Radar and Wireless Systems Use
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
1. Rogers RO3010 PCB Introduction
Rogers RO3010 is a 2-layer rigid high frequency printed circuit board, built with Rogers RO3010 ceramic-filled PTFE composite substrate that delivers a high, ultra-stable dielectric constant for demanding RF and microwave applications. Rogers RO3010 high-frequency circuit material combines competitive pricing with exceptional mechanical and electrical stability, streamlining the design of broadband components and enabling reliable performance across an extremely wide frequency spectrum. Featuring well-balanced material characteristics, Rogers RO3010 RF circuit board supports effective circuit miniaturization without compromising electrical performance, making it a versatile and cost-effective choice for a wide array of mission-critical high-frequency electronic designs, from automotive radar to cellular telecom systems.
2. Rogers RO3010 PCB Features
- Precise dielectric constant (Dk) of 10.2±0.30 at 10 GHz under 23°C operating conditions
- Low dissipation factor (Df) of 0.0022 at 10 GHz/23°C, minimizing high-frequency signal loss
- Ultra-low coefficient of thermal expansion (CTE) across -55°C to 288°C: 13 ppm/°C (X-axis), 11 ppm/°C (Y-axis), 16 ppm/°C (Z-axis)
- High decomposition temperature (Td) exceeding 500°C for enhanced thermal reliability
- Thermal conductivity of 0.95 W/mK, supporting efficient heat dissipation in high-power circuits
- Extremely low moisture absorption rate of 0.05%, ensuring stable performance in humid environments
- Wide operating temperature range: -40℃ to +85℃, adapting to harsh environmental conditions
3. Rogers RO3010 PCB Benefits
- Offers outstanding dimensional stability, with thermal expansion coefficient perfectly matched to copper for consistent circuit performance
- Features economical laminate pricing, ideal for large-scale volume manufacturing processes to control production costs
- Produced under ISO 9001 certified quality management system, guaranteeing reliable and consistent product quality
- Fully compatible with multi-layer PCB designs, providing flexible options for complex high-frequency circuit layouts
4. PCB Construction Details
Item |
Specification |
Base material |
RO3010 |
Layer count |
2-layer rigid PCB |
Board dimensions |
102mm x 63mm per piece |
Minimum Trace/Space |
5/7 mils |
Minimum Hole Size |
0.4mm |
Finished board thickness |
0.5mm |
Finished Cu weight |
1 oz (1.4 mils) outer layers |
Via plating thickness |
20 μm |
Surface finish |
Immersion Silver |
Top Silkscreen |
No |
Bottom Silkscreen |
No |
Top Solder Mask |
No |
Bottom Solder Mask |
No |
Quality Control |
100% Electrical test prior to shipment |
5. PCB Stackup
2-layer rigid PCB
- Copper_layer_1 - 35 μm
- Rogers RO3010 Substrate - 20mil (0.508mm)
- Copper_layer_2 - 35 μm
6. PCB Statistics
- Components: 38
- Total Pads: 45
- Thru Hole Pads: 16
- Top SMT Pads: 29
- Bottom SMT Pads: 0
- Vias: 36
- Nets: 2
7. Artwork & Quality Standards
- Type of artwork supplied: Gerber RS-274-X
- Accepted standard: IPC-Class-2
- Availability: worldwide
8. Typical Applications
- Automotive radar applications
- Global positioning satellite antennas
- Cellular telecommunications systems - power amplifiers and antennas
- Patch antenna for wireless communications
- Direct broadcast satellites
- Datalink on cable systems
- Remote meter readers
- Power backplanes
9. Conclusion
Rogers RO3010 2-Layer PCB delivers a high stable dielectric constant, low signal loss and excellent thermal reliability, making it a premier choice for high-frequency RF and microwave applications. With 0.5mm finished thickness, immersion silver surface finish, IPC Class 2 compliance and copper-matched CTE, RO3010 PCB ensures consistent performance in automotive radar, satellite communication, cellular telecom and other critical electronic systems, while its cost-effective nature supports scalable volume production.
Founded in 2003, Shenzhen Bicheng Electronics Technology Co., Ltd is an established high frequency PCB supplier and exporter in Shenzhen, China, serving customers worldwide.
We are devoted to delivering high-frequency PCB products and solutions of the highest quality, along with customized service. Get in touch with us to start your project !
