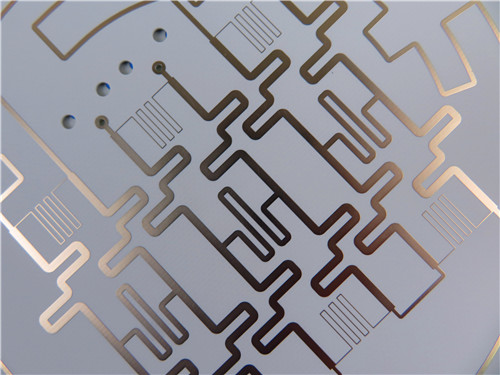

Rogers Kappa 438 2-Layer 30mil High Frequency PCB ENIG Finish Low-Loss Board for WiFi, Small Cell and V2X Applications
Rogers Kappa 438 2-Layer 30mil High Frequency PCB ENIG Finish Low-Loss Board for WiFi, Small Cell and V2X Applications
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
1. Rogers Kappa 438 PCB Introduction
Rogers Kappa 438 2-layer rigid PCB is a high-frequency printed circuit board built on Rogers’ glass-reinforced hydrocarbon ceramic laminate system. Engineered to deliver exceptional high-frequency performance at a competitive cost, Rogers Kappa 438 PCB material enables low-loss circuit fabrication using standard FR-4 manufacturing processes, making it both efficient and economical for high-volume production. Rogers Kappa 438 laminate PCB carries the UL 94 V‑0 flame retardant rating and is fully compatible with lead‑free soldering processes, supporting industry-standard production flows. With dielectric constant values aligned to widely accepted FR-4 specifications, this laminate simplifies the upgrade of existing FR-4 designs to achieve significantly improved electrical performance for modern wireless and RF applications.
2. Rogers Kappa 438 PCB Features
Glass-reinforced hydrocarbon thermoset material platform
Dielectric constant (Dk) of 4.38, aligned with FR-4 industry standard norms
Tighter Dk and thickness tolerances than standard FR‑4
Low Z-axis CTE of 42 ppm/°C
High glass transition temperature (Tg) > 280°C (TMA)
Thermal coefficient of Dk: -21 ppm/°C from -50°C to 150°C
UL 94 V‑0 flame retardant certified
3. Rogers Kappa 438 PCB Benefits
Straightforward PCB manufacturing and assembly using conventional FR-4 processes
Dk value simplifies migration from legacy FR-4 designs to higher-performance circuits
Delivers consistent and reliable circuit performance across operating conditions
Enhanced design flexibility and improved plated through-hole reliability
Fully compatible with automated assembly and mass production processes
4. PCB Construction Details
Item |
Specification |
Base material |
Kappa 438 |
Layer count |
2-layer rigid PCB |
Board dimensions |
45.5mm x 32mm per piece, +/- 0.15mm |
Minimum Trace/Space |
5/6 mils |
Minimum Hole Size |
0.2mm |
Blind vias |
No Blind vias |
Finished board thickness |
0.85mm |
Finished Cu weight |
1 oz (1.4 mils) outer layers |
Via plating thickness |
20 μm |
Surface finish |
Electroless Nickel and Immersion Gold (ENIG) |
Top Silkscreen |
No |
Bottom Silkscreen |
No |
Top Solder Mask |
No |
Bottom Solder Mask |
No |
Quality Control |
100% Electrical test prior to shipment |
5. PCB Stackup
2-layer rigid PCB
Copper_layer_1 - 35 μm
Rogers Kappa 438 - 0.762 mm (30mil)
Copper_layer_2 - 35 μm
6. PCB Statistics
Components: 51
Total Pads: 43
Thru Hole Pads: 25
Top SMT Pads: 18
Bottom SMT Pads: 0
Vias: 51
Nets: 2
7. Artwork & Quality Standards
Type of artwork supplied: Gerber RS‑274‑X
Accepted standard: IPC‑Class‑2
Availability: worldwide
8. Typical Applications
Carrier Grade WiFi / Licensed Assisted Access (LAA)
Small Cell and Distributed Antenna Systems (DAS)
Vehicle to Vehicle / Vehicle to Infrastructure Communications (V2X)
Internet of Things (IoT): Smart Home and Wireless Meters
9. Conclusion
Rogers 2-Layer Kappa 438 high frequency PCB combines FR-4 process compatibility, stable electrical performance and low-loss characteristics, making it an ideal upgrade for wireless and RF applications. With 30mil core thickness, 0.85mm finished board thickness, ENIG surface finish and IPC Class 2 quality, Rogers Kappa 438 RF circuit board provides reliable performance for WiFi, small cell, V2X and IoT systems worldwide.
