Why Is PCB Impedance Control Essential? Key Benefits for High-Speed Electronics
April 28，2026
In the era of high-speed digital and RF electronics, PCB impedance control has evolved from an optional feature to an indispensable requirement for reliable performance. Whether you’re designing for 5G, IoT, automotive electronics, or high-frequency communication devices, maintaining precise impedance matching directly impacts signal integrity, system stability, and overall product reliability. For engineers, designers, and buyers in the global electronics industry, understanding the core advantages of PCB impedance control is critical to avoiding costly design flaws and ensuring competitive performance. Below is a comprehensive, data-driven overview of its key benefits, with a brief mention of the MEGTRON6 R-5775(N) / R-5670(N) Impedance Control PCB—a high-performance solution tailored for demanding high-speed applications.
1.Key Advantages of PCB Impedance Control
Advantage Category |
Impedance Controlled PCB |
Non-Impedance Controlled PCB |
Signal Integrity |
Minimizes signal reflection (≤5% reflection loss), eliminates overshoot/undershoot, and ensures stable data transmission at speeds up to 10+ GHz |
High signal reflection (15–30%+), frequent distortion, and data errors in high-speed applications (≥1 GHz) |
EMI/EMC Compliance |
Reduces electromagnetic interference (EMI) by 30–50%, easily meets global EMC standards (CE, FCC, RoHS) |
High EMI radiation, risk of non-compliance, and potential interference with adjacent components |
Power Transmission Efficiency |
Maximizes power transfer (≥95% efficiency) with minimal insertion loss, ideal for RF and high-power circuits |
Low power transfer efficiency (70–85%), significant energy loss as heat or reflected signals |
Design Flexibility |
Supports dense packaging, HDI designs, and differential pair routing (90–100Ω standard) for compact devices |
Limited to low-density designs, risk of crosstalk in compact layouts |
Reliability & Longevity |
Reduces component stress, 50% lower failure rate in harsh environments (temperature, humidity) |
Higher component wear, increased failure risk in high-temperature or high-frequency applications |
Cost-Efficiency (Long-Term) |
Reduces rework (≤5% rework rate) and field failures, lower total cost of ownership (TCO) |
High rework rate (15–25%), frequent field repairs, higher long-term costs |
2.Core Benefits of PCB Impedance Control for Modern Electronics
PCB impedance control is the foundation of reliable high-speed electronic design, addressing the critical challenges posed by increasing signal frequencies and compact device layouts. Its primary advantage lies in preserving signal integrity: by matching the trace impedance to the source and load impedance (typically 50Ω for single-ended signals, 100Ω for differential pairs), it eliminates signal reflections, overshoot, and undershoot—common issues that cause data errors, timing inconsistencies, and system instability in 5G, DDR, and Ethernet applications. This ensures that signals travel smoothly from source to load, maintaining data accuracy even at speeds exceeding 10 GHz.
Another key benefit is reduced electromagnetic interference (EMI) and improved EMC compliance. Impedance mismatches cause signal reflections that generate excess EMI, which can interfere with adjacent components and lead to non-compliance with global standards (CE, FCC, RoHS). By controlling impedance, engineers minimize EMI radiation by 30–50%, ensuring products meet regulatory requirements and avoid costly redesigns. For automotive and medical electronics, this compliance is not just a requirement but a critical factor in patient and user safety.
Impedance control also enhances power transmission efficiency, particularly in RF and high-power circuits. Precise impedance matching ensures maximum power transfer (≥95% efficiency) with minimal insertion loss, reducing energy waste and component heat buildup. This is especially valuable for battery-powered devices, where energy efficiency directly impacts battery life, and for RF applications like antennas and amplifiers, where power loss can degrade performance.
Additionally, impedance control enables greater design flexibility, supporting high-density interconnect (HDI) designs and compact packaging—essential for modern wearables, smartphones, and automotive electronics. It allows for tighter trace spacing and differential pair routing, reducing board size while maintaining performance. High-performance solutions like the MEGTRON6 R-5775(N) / R-5670(N) Impedance Control PCB leverage ultra-low loss materials (Dk ≈3.4 @1GHz) to further enhance these benefits, making them ideal for demanding high-speed, high-reliability applications such as networking and wireless devices.
3.MEGTRON6 R-5775(N) / R-5670(N): A Premium Impedance Control Solution
For applications requiring exceptional impedance control performance, the MEGTRON6 R-5775(N) / R-5670(N) Impedance Control PCB stands out as an industry-leading option. Built with ultra-low loss glass cloth-laminate and prepreg materials, it offers stable dielectric properties (Dk = 3.4 at 1–12 GHz) and excellent thermal performance (Tg = 185°C, TD = 410°C), ensuring consistent impedance control even in harsh environments. With high heat resistance (T288 ≥120 minutes) and low moisture absorption (0.14%), it delivers reliable performance in automotive, aerospace, and high-frequency communication devices—making it a top choice for engineers seeking to maximize the benefits of impedance control.

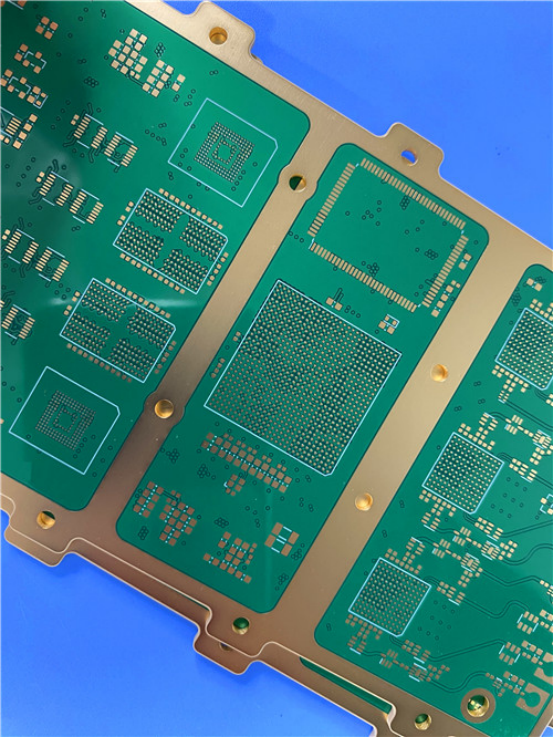

MEGTRON6（M6） Impedance Control PCB
4.Final Takeaway: The Value of PCB Impedance Control
PCB impedance control is not just a technical detail—it’s a strategic investment in product reliability, performance, and compliance. By minimizing signal distortion, reducing EMI, enhancing power efficiency, and enabling flexible design, it ensures your electronics perform consistently in high-speed, harsh, or compact applications. For demanding projects, premium solutions like the MEGTRON6 R-5775(N) / R-5670(N) Impedance Control PCB amplify these benefits, delivering the precision and durability required for today’s most advanced electronic systems. Whether you’re designing for consumer electronics, automotive, or aerospace, prioritizing impedance control is key to staying competitive in the global market.
