In the high-stakes world of aerospace, defense, and critical communications, RF and microwave PCBs face relentless challenges. Vibration, extreme temperatures, and harsh environmental exposure can compromise signal integrity, leading to system failure. This blog explores how Taconic’s TLX-8 PCB material is engineered from the ground up to deliver uncompromising performance and reliability precisely where it’s needed most.



1.Material at the Limit: What Defines TLX-8

Taconic TLX-8 is a high-performance PTFE fiberglass laminate engineered to deliver exceptional reliability for antenna systems and microwave circuits operating under extreme environmental stress. By combining robust fiberglass reinforcement with the superior signal integrity of low-loss PTFE, it provides a foundation for stable, predictable performance where traditional materials falter.



Taconic TLX-8 laminate proves its mettle across a demanding spectrum of use cases—from the intense vibrations of space launch systems to the thermal extremes of engine modules; from radiation-hardened space electronics to saltwater-exposed naval antennas.



Furthermore, with a wide selection of thicknesses and copper cladding configurations, Taconic TLX-8 PCB offers design engineers the critical flexibility needed for diverse RF and microwave layouts, all while maintaining the tightly controlled dielectric properties essential for predictable high-frequency response.



2.Engineered for the Extreme: The TLX-8 Advantage

Taconic TLX-8 High Frequency PCB Material leverages its robust substrate foundation to deliver a set of definitive performance advantages. The following key properties quantify its superiority for extreme-environment applications:



Exceptional Passive Intermodulation (PIM) Performance

Measures consistently below -160 dBc, ensuring minimal signal interference in high-power RF and microwave systems such as radar, 5G base stations, and mobile communication networks.



Extreme Environmental Durability

Engineered to withstand high vibration, extreme temperatures, radiation, and marine exposure, making it an ideal PCB material for space, aerospace, defense, and naval electronics.



Stable Electrical Performance

Features low dielectric constant (Dk 2.55 ± 0.04) and low dissipation factor (Df 0.0018) to maintain consistent signal integrity across wide frequency ranges in microwave and RF applications.



Superior Dimensional Stability

Exhibits minimal expansion or contraction under thermal cycling and high-temperature baking, preventing PCB warpage while ensuring long-term component alignment and connection reliability.



Low Moisture Absorption (0.02%)

Effectively eliminates moisture-related performance degradation, supporting reliable operation in humid, marine, and variable climate environments.



Enhanced Mechanical Strength

Reinforced with woven fiberglass to deliver structural durability, particularly suited for vibration-prone applications such as bolted PCB assemblies in aerospace and launch systems.



UL 94 V-0 Flammability Rating

Provides enhanced flame resistance to meet safety requirements in mission-critical systems where fire risk mitigation is essential.

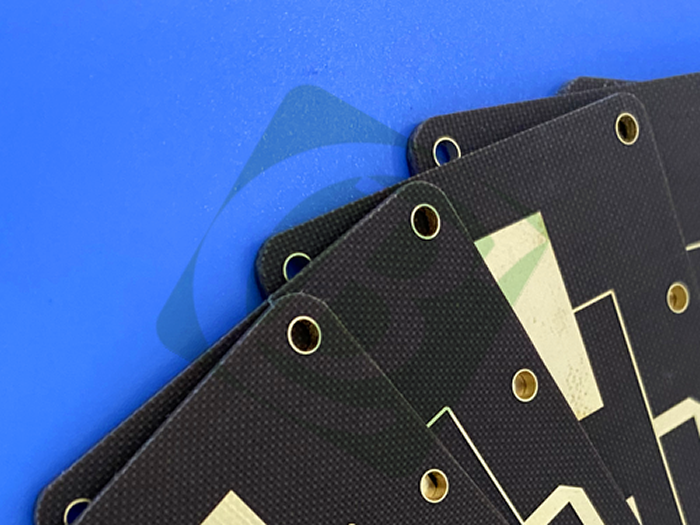

31mil 2-layer TLX-8 PCB with Immersion Gold

3.Taconic TLX-8 Material Properties

The following table details the key electrical, thermal, and physical specifications that form the engineering basis for TLX-8 PCB's consistent high-frequency performance and reliability.

Property Category	Specification	Value	Test Standard
Electrical Properties	Dielectric Constant (Dk) @ 10 GHz	2.55 ± 0.04	IPC-650 2.5.5.3
	Dissipation Factor (DF) @ 10 GHz	0.0018	IPC-650 2.5.5.5.1
	Surface Resistivity (Elevated Temp.)	6.605 x 10⁸ Mohm	IPC-650 2.5.17.1 Sec. 5.2.1
	Surface Resistivity (Humidity Cond.)	3.550 x 10⁶ Mohm	IPC-650 2.5.17.1 Sec. 5.2.1
	Volume Resistivity (Elevated Temp.)	1.110 x 10¹⁰ Mohm/cm	IPC-650 2.5.17.1 Sec. 5.2.1
	Volume Resistivity (Humidity Cond.)	1.046 x 10¹⁰ Mohm/cm	IPC-650 2.5.17.1 Sec. 5.2.1
Electrical Properties	Dielectric Breakdown	>45 Kv	IPC-650 2.5.6
Dimensional Stability	MD After Bake	0.06 mm/M (mils/in)	IPC-650 2.4.39 Sec. 5.4
	CD After Bake	0.08 mm/M (mils/in)	IPC-650 2.4.39 Sec. 5.4
	MD Thermal Stress	0.09 mm/M (mils/in)	IPC-650 2.4.39 Sec. 5.5
	CD Thermal Stress	0.10 mm/M (mils/in)	IPC-650 2.4.39 Sec. 5.5
Thermal Properties	CTE (25-260 °C) - X-axis	21 ppm/°C	IPC-650 2.4.41 / ASTM D 3386
	CTE (25-260 °C) - Y-axis	23 ppm/°C	IPC-650 2.4.41 / ASTM D 3386
	CTE (25-260 °C) - Z-axis	215 ppm/°C	IPC-650 2.4.41 / ASTM D 3386
	Decomposition Temp. (Td) - 2% Weight Loss	535 °C	IPC-650 2.4.24.6 (TGA)
	Decomposition Temp. (Td) - 5% Weight Loss	553 °C	IPC-650 2.4.24.6 (TGA)
Chemical/Physical Properties	Moisture Absorption	0.02%	IPC-650 2.6.2.1
	Flammability Rating	UL 94 V-0	UL-94



4.Typical Applications of TLX-8 PCB

Taconic TLX-8 PCB is optimized for high-reliability RF/microwave systems, including:

Radar systems

Mobile communications equipment

Microwave test equipment

Microwave transmission devices

Couplers, splitters, combiners, and amplifiers

Antennas (e.g., space, naval, aerospace)



5.Why TLX-8 is the Definitive Choice for Critical RF Designs

Taconic TLX-8 PCB is engineered to meet the rigorous demands of mission-critical RF and microwave systems across space, defense, telecommunications, and industrial applications. TLX-8 PCB combines premium materials with precise manufacturing to ensure consistent performance in extreme environments. With a balanced profile of electrical, mechanical, and thermal properties,Taconic TLX-8 circuit board delivers the reliability required for high-stakes engineering designs.
