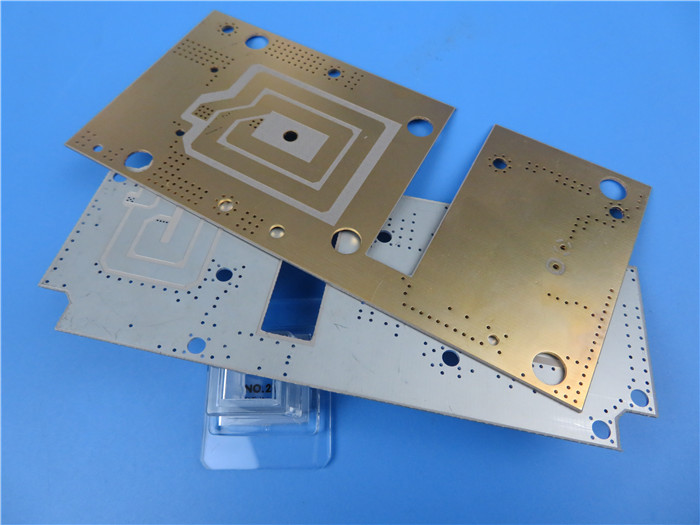

1.Introduction of RF-35A2 PCB

Taconic RF-35A2 PCB emerges as the ideal solution for engineers and manufacturers focused on high-performance RF and microwave applications, where ultra-low loss is a non-negotiable requirement—especially for power amplifiers, filters, and wireless antennas, since signal integrity in these systems directly impacts device efficiency. For professionals who refuse to compromise on low-loss performance and exceptional reliability, RF-35A2 substrate delivers on every critical metric that defines high-frequency PCB excellence.



Taconic RF-35A2 PCB is engineered with ultra-low fiberglass content, a key design feature that enables it to achieve best-in-class insertion loss properties. What’s more, RF-35A2 substrate boasts a tightly controlled uniform dielectric constant (Dk) of 3.5 ±0.05 across the entire laminate. This level of consistency ensures predictable electrical performance, making it a premium ultra-low loss material tailored specifically for power amplifier applications.



Behind its standout performance lies Taconic’s proprietary multi-step manufacturing process. This advanced production method not only locks in superior dielectric performance but also ensures excellent copper peel adhesion—critical for maintaining structural stability and signal continuity in high-stress operating environments. At 10 GHz, RF-35A2 laminate exhibits an ultra-low dissipation factor of 0.0015, which maximizes power transfer efficiency while minimizing heat generation. This translates to longer device lifespans and reduced cooling system requirements, a major advantage for high-power RF designs.





2.Core Benefits of Taconic RF-35A2

Industry-Leading Ultra-Low Loss Properties

Taconic RF-35A2 substrate’s optimized composition ensures minimal signal degradation during transmission, making it ideal for high-frequency applications where signal integrity is paramount. Say goodbye to signal loss-induced performance bottlenecks with Taconic RF-35A2.



Precision Dielectric Constant Tolerance (±0.05)

A tight Dk tolerance guarantees consistent electrical behavior across every batch and every square inch of the laminate. This precision eliminates performance variations, streamlining design validation and reducing prototyping costs.



Homogeneous Dk Distribution

Uniform dielectric properties throughout the board prevent signal distortion and reflection, even in complex multilayer layouts. This homogeneity is a game-changer for high-speed digital circuits and high-frequency communication systems.



Exceptional Copper Peel Strength

Robust adhesion between copper layers and the substrate enhances mechanical durability, ensuring the PCB can withstand thermal cycling, vibration, and other harsh operating conditions without delamination.



Low Moisture Absorption

Minimal moisture uptake makes Taconic RF-35A2 suitable for deployment in high-humidity environments, from industrial settings to outdoor wireless infrastructure. It maintains stable performance even in challenging climates.



Easy Drilling & Fabrication Compatibility

The substrate’s mechanical properties support efficient drilling and processing, reducing production lead times and assembly costs for manufacturers. It integrates seamlessly into standard PCB fabrication workflows.



3.Taconic RF-35A2 PCB Capabilities

Specification	Details
PCB Material	PTFE Ceramic Fiberglass
Designation	RF-35A2
Dielectric Constant (Dk)	3.15
Dissipation Factor (10 GHz)	0.0015 (ultra-low loss)
Layer Count	Double Layer, Multilayer, Hybrid PCB
Copper Weight	0.5oz (17 µm), 1oz (35 µm)
PCB Thickness	10mil (0.254mm); 20mil (0.508mm); 30mil (0.762mm); 60mil (1.524mm)
Maximum PCB Size	≤400mm × 500mm
Solder Mask Options	Green, Black, Blue, Yellow, Red, etc.
Surface Finish Options	Bare copper, HASL, ENIG, Immersion silver, Immersion tin, OSP, etc.



4.Key Applications: Where Ultra-Low Loss Makes a Difference

Taconic RF-35A2’s ultra-low loss characteristics and versatile performance make it the go-to substrate for a wide range of high-frequency industries and applications:



Power Amplifiers: Delivers high-efficiency amplification for consumer electronics, aerospace, and defense systems.



Filters/Couplers: Ensures precise signal filtering and coupling in communication networks, reducing interference and improving signal clarity.



High-Speed Digital Circuits: Supports fast, reliable data transmission in high-performance computing and data center equipment.



Multilayer PCBs: Enables complex circuitry designs for advanced RF systems with consistent performance across all layers.



Passive Components: Facilitates integration of resistors, capacitors, and inductors for compact, high-efficiency RF modules.



Wireless Antennas: Enhances signal propagation and reception for 5G, satellite communication, and IoT devices, maximizing range and connectivity.



5.Takeaways

For engineers and buyers prioritizing ultra-low loss performance, Taconic RF-35A2 PCB isn’t just a substrate—it’s a solution that elevates the reliability and efficiency of every high-frequency PCB design.
