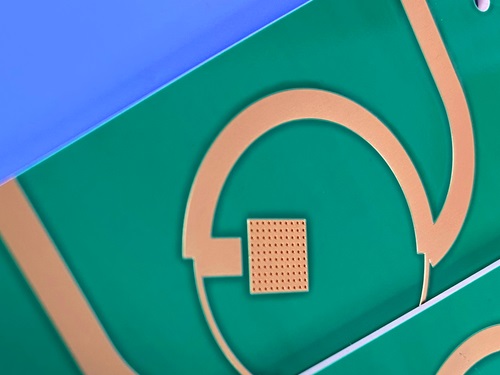

When designing power amplifiers or patch antennas for X-band radar, the dielectric constant is usually the first number you check. With a Dk of 10.2, Rogers RT/duroid 6010.2LM laminate — the RoHS-compliant, fully optimized successor to the legacy RT/duroid 6010 series, featuring tighter parameter tolerances and superior batch-to-batch stability — allows designers to achieve significant circuit size reduction. However, in high-reliability sectors such as aerospace and defense, focusing solely on Dk can be a trap.



The real question for European and North American engineers is this: how does the Rogers RT/duroid 6010.2LM material handle thermal stress during RoHS-compliant assembly?



As an upgraded ceramic-filled PTFE composite optimized from the traditional RT/duroid 6010 material, RT/duroid 6010.2LM adopts refined filler loading technology, delivering a unique thermal expansion profile that differs drastically from standard RF materials.



1.The Critical Parameter: Z-Axis Expansion

In multi-layer board designs or through-hole components, the Z-Axis Coefficient of Thermal Expansion drives the reliability of plated through holes. Standard FR-4 has a Z-axis CTE around 50 to 70 ppm/°C.



To understand the performance characteristics of the RT/duroid 6010.2LM laminate, the following typical property data provides a clear engineering reference.

Table 1: Thermal and Mechanical Profile of Rogers RT/duroid 6010.2LM

Property	RT/duroid 6010.2LM	Standard FR-4 (Typical)	Design Implication
Dielectric Constant at 10 GHz	10.2 ± 0.25	4.5	High circuit density and slower wave propagation
Z-Axis CTE (-55 to 288°C)	47 ppm/°C	~60 ppm/°C	Moderate; compatible with standard PTH processes
X/Y CTE (-55 to 288°C)	24 ppm/°C	~14 to 16 ppm/°C	Matches copper well, reducing stress on pads
Thermal Conductivity	0.86 W/m/K	0.25 W/m/K	Excellent heat dissipation for power amplifiers



2.Why the Negative TCDk of RT/duroid 6010.2LM is Your Friend

Beyond CTE, another specification matters for outdoor units operating in harsh climates: the Thermal Coefficient of Dielectric Constant, or TCDk.

TCDk describes how the dielectric constant of a material changes as temperature changes. For most RF substrates, the Dk drifts upward or downward with temperature. This drift can detune filters, shift antenna resonant frequencies, and degrade impedance matching across the operating temperature range.

Unlike standard substrates where the Dk drifts significantly with temperature, the Rogers RT/duroid 6010.2LM laminate exhibits a TCDk of -425 ppm/°C. This negative value is highly predictable and remains relatively flat over wide temperature ranges, delivering superior electrical stability compared to the legacy 6010 series.





3.RT/duroid 6010.2LM vs. Alternative High-Dk Materials

When selecting a high-Dk substrate, engineers often compare the upgraded Rogers RT/duroid 6010.2LM against other mainstream high-performance options. The table below provides a direct comparison between RT/duroid 6010.2LM, RT/duroid 6006 laminate (Dk of 6.15), and standard alumina ceramic substrates.

Table 2: Electrical Stability of RT/duroid 6010 vs. Ceramic Alternatives

Parameter	Rogers RT/duroid 6010.2LM	Standard Alumina Ceramic
TCDk (-50°C to 150°C)	-425 ppm/°C	N/A (inherently stable but brittle)
Mechanical Flexibility	High (PTFE based)	None (brittle)
Moisture Absorption	0.01%	0.00%

4.How the RT/duroid 6010.2LM Compares to RT/duroid 6006

For applications requiring a Dk between 6 and 10, the Rogers RT/duroid 6006 laminate offers a Dk of 6.15, making it suitable for different frequency ranges and impedance targets. Both the RT/duroid 6010.2LM and RT/duroid 6006 share similar PTFE-based construction and an ultra-low moisture absorption rate of 0.01 percent.

However, the RT/duroid 6010.2LM laminate delivers a significantly higher Dk of 10.2, which allows for approximately 30 percent greater circuit size reduction compared to the RT/duroid 6006. The Z-axis CTE values of the two materials are comparable, with the RT/duroid 6006 at 44 ppm/°C and the upgraded RT/duroid 6010.2LM at 47 ppm/°C, meaning both materials deliver consistent and reliable plated through hole performance.

5.RT/duroid 6010.2LM vs. Alumina Ceramic: A Practical Trade-Off

Alumina ceramic substrates provide excellent dimensional stability and a very low Z-axis CTE of approximately 6 to 8 ppm/°C. This makes ceramics highly resistant to thermal cycling stress. However, alumina ceramics come with significant drawbacks for mass production and rugged applications.

First, alumina ceramics are brittle and prone to cracking during assembly or mechanical shock. Second, ceramic substrates require laser or diamond scoring for depaneling, which increases fabrication cost and cycle time. Third, the lack of mechanical flexibility makes ceramic substrates unsuitable for flex or rigid-flex applications.



The Rogers RT/duroid 6010.2LM laminate offers a practical and high-reliability middle ground. It provides a comparable Dk of 10.2, matching the 9.8 to 10.0 Dk range of alumina ceramic, while retaining the excellent mechanical flexibility of optimized PTFE-based construction. The slightly higher Z-axis CTE of 47 ppm/°C is fully manageable with standardized design rules and professional plasma etching processes.

6. Why High Dk Alone Does Not Guarantee Reliability

Some engineers assume that a higher dielectric constant automatically leads to better circuit performance. This is not always true. The upgraded Rogers RT/duroid 6010.2LM laminate delivers a stable Dk of 10.2 with a tightly controlled tolerance of ±0.25, ensuring consistent impedance uniformity across entire production panels.



However, substrate reliability depends on multiple core factors beyond nominal Dk values. These include:

Z-Axis CTE matching with copper plating

Thermal conductivity for efficient heat dissipation

Low moisture absorption for outdoor and humid environment operation

Stable TCDk performance across the full operating temperature range



Rogers RT/duroid 6010.2LM laminate comprehensively optimizes these key reliability indicators with balanced industrial-grade performance. Its Z-axis CTE of 47 ppm/°C is fully compatible with standard FR-4 processing windows. The thermal conductivity of 0.86 W/m/K is more than three times higher than standard FR-4, effectively lowering hotspot temperatures in high-power amplifiers. The ultra-low moisture absorption of 0.01 percent guarantees stable electrical performance for long-term operation in harsh scenarios, including base station outdoor units and automotive radar modules.

7.The Engineering Takeaway for RT/duroid 6010.2LM Users

For European and North American clients designing 5G infrastructure, automotive radar, or aerospace phased array antennas, the Rogers RT/duroid 6010.2LM laminate hits a practical high-reliability sweet spot. It delivers ceramic-level Dk of 10.2 for effective circuit miniaturization, while eliminating the brittleness, high manufacturing costs, and low yield issues associated with pure ceramic substrates.



Compared to the RT/duroid 6006 laminate, RT/duroid 6010.2LM enables higher circuit density with a marginal trade-off of slightly higher Z-axis CTE. Compared to alumina ceramics, RT/duroid 6010.2LM provides superior mechanical robustness and lower fabrication costs while maintaining equivalent high dielectric constant performance.



As an optimized iteration of the classic 6010-series PTFE-based laminate, RT/duroid 6010.2LM features a softer substrate structure. Its 47 ppm/°C Z-axis CTE requires standardized, careful drill conditioning and plasma etching prior to ENIG plating to prevent solder wicking or void formation.



If you are migrating circuit designs from alumina ceramic to organic RF substrates or selecting between RT/duroid 6006 and RT/duroid 6010.2LM, the upgraded Rogers RT/duroid 6010.2LM delivers the high dielectric constant required for miniaturization, paired with excellent processability for complex, multi-layer high-frequency RF PCBs.
