Designing compact high-precision circuits demands consistent electrical stability, reliable material consistency, and durable performance in varied operating conditions — especially for space-constrained, miniaturized assemblies. This custom Taconic RF-60A 2-layer rigid PCB features Taconic RF-60A organic-ceramic laminate, a specialized engineered material built to meet the unique needs of compact, precision-focused circuit builds. Fully IPC-Class-2 compliant and available worldwide, Taconic RF-60A laminate directly addresses core design pain points for miniaturized circuits, including moisture absorption, thermal dimensional drift, and long-term structural reliability, with performance backed by verified material and manufacturing specifications.

1.RF-60A PCB Construction & Compliance Overview

Taconic RF-60A 2-layer rigid PCB is optimized for compact industrial layouts, with strict manufacturing controls to ensure consistent performance and durability. The board measures 87mm x 29mm (±0.15mm), a slim compact size ideal for space-constrained applications, with a finished thickness of 1.5mm and 1oz (35μm) outer copper layers for reliable current conduction. It features a 5/6 mil minimum trace/space and 0.4mm minimum through-hole size, with no blind vias to simplify production and maintain cost efficiency. Every board undergoes 100% electrical testing before shipment, guaranteeing full functional reliability.

RF-60A PCB uses Pure Gold Plating (100μinch) for surface finish, which supports consistent solderability and corrosion resistance for long-term use. The design does not include solder masks or silkscreens on either side, creating a streamlined profile suitable for compact, high-precision assembly. The standard 2-layer stackup consists of a 1.27mm (50mil) RF-60A core between two 35μm copper layers, supporting steady signal transmission and consistent structural rigidity.

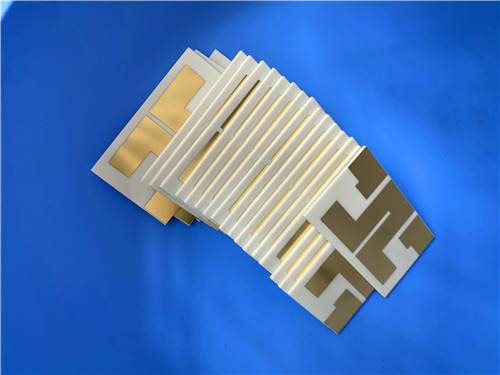

Taconic RF-60A PCB

2.Precision Build Specifications & Compliance

3.Key Benefits of RF-60A PCB

RF-60A is an organic-ceramic laminate from Taconic’s ORCER product line, reinforced with woven glass to support consistent structural integrity. It offers reliable interlaminar bond strength and stable solder resistance, helping reduce common failure risks in regular industrial operating conditions. Its formulated composition delivers low moisture absorption and uniform electrical properties, while the controlled Z-axis CTE supports reliable performance of plated-through-holes during typical thermal cycling, aligning with standard industrial reliability expectations.

Taconic RF-60A 50mil circuit board features a compact, practical layout with 24 components, 39 total pads, 22 top SMT pads, and 48 vias, suited for miniaturized industrial circuit designs. It is fully RoHS and WEEE compliant, and fits typical applications such as power amplifiers, filters, couplers, miniaturized antennas, and passive components. Supported by global availability and Gerber RS-274-X artwork compatibility, it provides a consistent, IPC-Class-2 certified manufacturing solution for engineers focused on stable, compact, and long-lasting circuit performance.

4.Summary

Taconic RF-60A 2-layer high-frequency PCB is a practical, specification-driven choice for compact industrial circuit designs that prioritize consistent electrical performance and reliable long-term operation. Backed by strict IPC-Class-2 manufacturing standards, 100% pre-shipment electrical testing, and the stable material properties of RF-60A laminate, it addresses core needs for dimensional stability, low moisture absorption, and dependable thermal performance in space-constrained setups. With global availability and standard Gerber file compatibility, Taconic RF-60A high-frequency material offers a straightforward, reliable production option for engineers seeking a balanced, compliant solution for targeted industrial applications.
