For design and engineering teams working on high-power industrial circuits, thermal control and consistent signal performance are two of the biggest daily challenges. Standard PCBs often fall short when handling sustained high power, leading to overheating, signal drift, and shortened component life. This custom double-sided rigid PCB, built with Rogers RT/duroid 6035HTC high-performance laminate, solves these pain points with precision engineering and premium material properties, fully complying with IPC-Class-2 standards and available for global shipping.

1.Core PCB Construction & Compliance Details

This is a precision-engineered 2-layer rigid PCB optimized for high-power operation, with strict dimensional and process controls to ensure repeatable performance. Rogers RT/duroid 6035HTC high-frequency PCB board measures 87mm x 96.5mm (±0.15mm), with a finished thickness of 0.85mm and 1oz (35μm) outer copper layers for reliable current handling. It features a 5/6 mil minimum trace/space and 0.2mm minimum through-hole size, with no blind vias for simplified, cost-effective manufacturing. Full 100% electrical testing is completed prior to shipment, guaranteeing functional reliability.

Surface finishing uses immersion silver for stable solderability and signal integrity, paired with a blue top solder mask and white top silkscreen (bottom side no mask or silkscreen) to match assembly and inspection needs. The stackup is balanced for impedance consistency and heat transfer, with a 0.762mm RT/duroid 6035HTC core sandwiched between two 35μm copper layers.

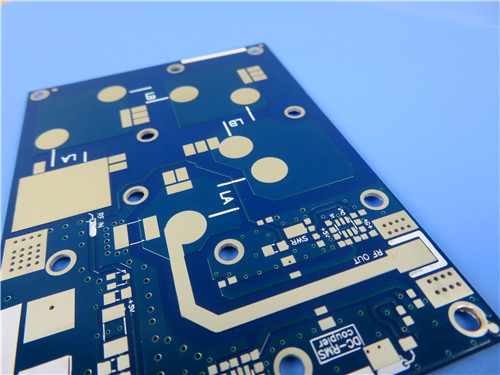

RT/duroid 6035HTC high-frequency PCB

2.Key Material Specifications & Performance Table

3.Unmatched Advantages for High-Power Applications

Rogers RT/duroid 6035HTC is a ceramic-filled PTFE composite engineered specifically for demanding high-power industrial use cases. Its standout thermal conductivity delivers 2.4 times better heat dissipation than standard RT/duroid 6000 series materials, effectively lowering operating temperatures, reducing thermal drift, and extending the service life of critical onboard components. Unlike common high-thermal laminates with alumina fillers, this material boasts exceptional drillability, which cuts down manufacturing costs without compromising performance, paired with premium copper foil for long-term thermal stability.

This optimized RT/duroid 6035HTC 2-layer high-frequency PCB features a compact layout with 31 components, 104 total pads, and 86 vias, designed for dense, efficient power and signal routing without sacrificing reliability. It supports a wide range of high-power industrial applications, from power amplification modules and signal couplers to precision filters and power distribution components. Manufactured with 100% pre-shipment electrical testing, immersion silver surface finish, and strict dimensional tolerances, it’s a ready-to-produce solution for global engineering teams that balances performance, cost efficiency, and long-term durability.

4.Summary

Rogers RT/duroid 6035HTC 2-layer PCB is a targeted, high-performance solution for high-power industrial circuits that require effective thermal management and consistent signal integrity. Backed by IPC-Class-2 compliance, rigorous pre-shipment electrical testing, and a thermally optimized material stackup, it addresses the core challenges of sustained high-power operation, reducing overheating risks and improving component longevity. With a reliable immersion silver finish, controlled manufacturing tolerances, and worldwide availability, it stands as a practical, durable choice for engineering teams building reliable high-power industrial circuit assemblies.
