In the world of high-frequency circuit design, material selection is rarely a simple decision. Engineers must balance electrical performance, manufacturability, and cost—all while pushing frequencies higher and designs denser. Among the many options available, Rogers RO4003C laminate has earned its reputation as a workhorse material for commercial RF and microwave applications. But what about the "LoPro" version?

The question is worth asking: does the copper foil profile on your RO4003C PCB genuinely impact performance, or is it just another specification to gloss over? Let's examine one specific characteristic—the conductor surface roughness—and understand why it matters for your next design.

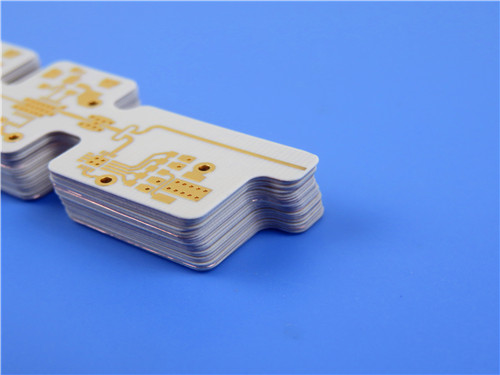

1.What is LoPro Technology?

Standard RO4003C is a reinforced hydrocarbon/ceramic laminate known for its stable dielectric constant (Dk = 3.38 ± 0.05 at 10 GHz) and low dissipation factor (Df = 0.0027 at 10 GHz). The "LoPro" variant introduces a proprietary reverse-treated copper foil that significantly reduces surface roughness on the conductor surface.

Conventional electrolytic copper foil typically exhibits a surface roughness (Rz) of 1.5 to 3.0 μm on the drum side and 0.4 μm on the matte side. LoPro foil reduces the dielectric-side surface roughness to approximately 0.9 μm for 1 oz copper and 0.9 μm for ½ oz copper, while the upper surface measures around 1.3 μm and 0.8 μm respectively.

Why does this matter? At high frequencies, skin effect concentrates current flow at the conductor surface. A rougher copper surface forces electrons to travel longer paths, increasing conductor loss. This is not a theoretical concern—it translates directly to measurable insertion loss degradation. The skin depth at 10 GHz is roughly 0.66 μm in copper, which means the majority of the current flows within a layer thinner than the surface roughness of conventional copper foil. When the surface roughness becomes comparable to or greater than the skin depth, the effective path length for current increases significantly, resulting in higher AC resistance and greater signal attenuation.

2.Insertion Loss: The Real-World Impact

To appreciate what LoPro offers, consider actual insertion loss data. For a 0.030" (0.762 mm) thick transmission line with 1 oz copper, RO4003C demonstrates significantly lower loss compared to conventional circuit board materials:

Frequency (GHz)	RO4003C (dB/inch)	Standard BT Epoxy (dB/inch)	Difunctional Epoxy (dB/inch)
1	-0.018	-0.054	-0.078
5	-0.088	-0.269	-0.391
10	-0.176	-0.538	-0.782

Key takeaway: At 10 GHz, RO4003C exhibits insertion loss that is approximately one-third that of standard BT epoxy materials. For the difunctional epoxy, the loss is 4.5 times greater than RO4003C.

While the primary loss mechanism in RO4003C comes from the dielectric material itself (low Df = 0.0027), LoPro copper foil further reduces conductor loss at higher frequencies by providing a smoother current path. At millimeter-wave frequencies where skin depth is measured in microns, this distinction becomes critical. In practical terms, the difference in insertion loss between standard copper and LoPro copper can range from 5% to 15% depending on frequency, line geometry, and board construction, with the gap widening as frequency increases.

3.Surface Roughness Comparison: Why It Matters

Surface roughness is not merely an aesthetic concern—it has direct implications for signal integrity and manufacturing yield. Here is a comparative breakdown of copper foil surface profiles:

Copper Type	Dielectric-Side Roughness (Rz, μm)	Upper-Surface Roughness (Rz, μm)	Typical Application
Standard ED Copper	1.5 – 3.0	0.4 (matte)	General-purpose PCBs
LoPro (1 oz)	~0.9	~1.3	High-frequency designs
LoPro (½ oz)	~0.9	~0.8	Ultra-high-frequency designs

This smoother dielectric-side surface allows for tighter impedance control and more predictable phase response, both of which are essential for phased-array antennas and automotive radar systems. For designers working with tight impedance tolerances (±5% or better), the reduced roughness minimizes the variability introduced during lamination and etching.

4.Critical Material Properties at a Glance

For engineers evaluating RO4003C LoPro laminate for their designs, here are the key parameters:

Parameter	Typical Value	Test Condition	Note
Dk (Process)	3.38 ± 0.05	10 GHz, 23°C	Thermally stable
Df (Dissipation Factor)	0.0027	10 GHz, 23°C	Industry-leading low loss
Thermal Conductivity	0.64 W/m/K	80°C	Supports thermal management
Tg (Glass Transition)	>280°C	TMA	Lead-free compatible
CTE, Z-axis	46 ppm/°C	-55 to 288°C	Reliable for multilayer boards
Moisture Absorption	0.06%	48 hrs immersion	Stable in humid environments
Dimensional Stability	<0.3 mm/m	After etching	Predictable layer registration

The low Z-axis CTE of 46 ppm/°C enables reliable multi-layer board (MLB) fabrication, making RO4003C compatible with standard epoxy/glass processing rather than requiring specialized PTFE handling. This compatibility means the material can be processed using standard FR-4 equipment and chemistry, significantly reducing manufacturing lead times and costs compared to PTFE alternatives.

5.When Should You Choose LoPro?

The benefits of LoPro copper become most pronounced in designs that demand:

Low Passive Intermodulation (PIM)
Smoother copper surfaces reduce non-linearities that generate PIM, which is particularly relevant for cellular base station antennas and tower-mounted amplifiers. PIM distortion can interfere with sensitive receiver channels, and the copper-to-dielectric interface is a known source of PIM. LoPro foil minimizes this risk.

High Circuit Density
The reduced insertion loss per unit length enables more compact designs or longer transmission lines without unacceptable signal degradation. For example, board real estate is often limited in 5G small-cell radios, and every millimeter of trace length must be optimized for loss and routing efficiency.

Millimeter-Wave Applications
At 5G frequencies (above 24 GHz) and emerging automotive radar bands (77 GHz), conductor roughness contributes a proportionally larger share of total loss. In these regimes, the use of LoPro copper can be the difference between meeting or failing the link budget.

High Humidity Environments
Because LoPro provides a more uniform bonding surface between the copper and dielectric, it can contribute to better peel strength and long-term reliability under thermal cycling and moisture exposure. This is particularly relevant for outdoor applications such as base stations and satellite communications.

Automotive Radar
The automotive industry has increasingly adopted RO4003C for 77 GHz radar sensors used in adaptive cruise control and collision avoidance systems. The stable Dk over temperature and low moisture absorption make it a dependable choice for safety-critical applications.

6.Processing and Reliability Considerations

RO4003C LoPro can be processed using standard FR-4 manufacturing techniques, unlike PTFE-based laminates that require special handling, sodium etching, or plasma treatment. This compatibility yields significant practical advantages:

Shorter lead times: No specialized processing steps are required.

Lower fabrication costs: The material works with conventional etchants, drilling parameters, and lamination cycles.

Higher yield: Reduced variability in etching and lamination translates to more consistent impedance control.

Reliable plated through-holes: The low Z-axis CTE (46 ppm/°C) provides robust PTH reliability even under lead-free assembly temperatures.

These processing advantages do not come at the expense of electrical performance. The combination of low loss and standard FR-4 processing makes RO4003C LoPro an attractive option for design teams migrating from conventional materials to high-frequency performance without overhauling their manufacturing supply chain.

7.Conclusion: Is LoPro Right for Your Design?

The short answer to our opening question is yes—copper profile matters, particularly as operating frequencies climb. LoPro foil on RO4003C laminates provides a measurable reduction in conductor loss without sacrificing the excellent dielectric properties that make RO4003C a preferred material for commercial RF applications.

For designers working in C-band, X-band, and beyond, the combination of stable Dk (3.38), low Df (0.0027), and optimized copper profile offers a compelling balance of electrical performance and manufacturing practicality. It is not the lowest-loss material available—PTFE-based laminates like RT/duroid 5880 offer superior loss characteristics—but RO4003C LoPro delivers exceptional value when fabrication cost, process compatibility, and performance must be balanced.

Design Priority	Recommended Material	Key Reason
Absolute lowest loss	RT/duroid 5880	Df = 0.0009, lowest available
Cost-effective high frequency	RO4003C LoPro	Low loss + standard processing
PIM-critical applications	RO4003C LoPro	Smooth copper interface
Budget-sensitive designs	RO4003C (standard)	Similar Dk/Df without LoPro

When specifying your next high-frequency PCB, take a close look at the copper foil. The surface roughness figures on the datasheet—and your insertion loss budget—will ultimately determine whether your design meets its performance targets. RO4003C LoPro strikes a smart balance: it provides the low loss required for modern high-frequency applications while remaining compatible with standard, cost-effective manufacturing processes. For many designers, that is exactly the combination they have been looking for.
