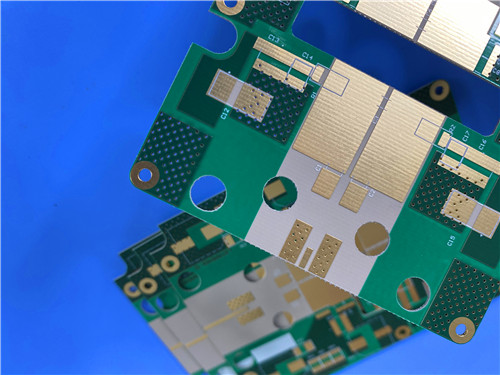

WL-CT440 2-Layer 10mil Immersion Silver PCB Wangling High Tg PCB for Aerospace and Satellite Applications
WL-CT440 2-Layer 10mil Immersion Silver PCB Wangling High Tg PCB for Aerospace and Satellite Applications
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
1. WL-CT440 PCB Overview
WL-CT440 high-frequency circuit board is manufactured using Wangling's proprietary WL-CT440 organic polymer ceramic fiberglass cloth-covered copper clad laminates, a thermosetting resin-based high-frequency material tailored for advanced electronic applications. The dielectric layer of WL-CT series material is composed of hydrocarbon resin, ceramics, and fiberglass cloth, endowing the composite circuit board with excellent low-loss performance that meets the stringent requirements of high-frequency design. A key advantage of the WL-CT440 laminate material lies in its compatibility with FR4-like processing techniques, which simplifies manufacturing compared to PTFE-based materials while ensuring superior circuit stability and consistency. As a high-performance alternative to similar foreign products, this composite combines the advantages of hydrocarbon resin and composite ceramics to deliver exceptional low loss, high-temperature resistance, and thermal stability. WL-CT440 PCB material series features stable temperature coefficients of dielectric constant and loss, a low coefficient of thermal expansion, and a high glass transition temperature (Tg) of over 280°C, making it a reliable choice for demanding high-frequency scenarios.
2. Core Features
- Dielectric constant of 4.1 at 10 GHz/23°C
- Dissipation factor of 0.005 at 10 GHz
- High glass transition temperature (Tg) of 280℃
- Excellent temperature coefficient of dielectric constant (TCDK) of -21 ppm/°C
- High thermal conductivity of 0.66 W/MK
- Low moisture absorption rate of 0.12%
- Copper-matched coefficient of thermal expansion (CTE): 14 ppm/°C (X-axis), 18 ppm/°C (Y-axis), 35 ppm/°C (Z-axis)
- Complies with UL-94V0 flammability standard
3. Key Benefits
- Low-loss dielectric performance ensures superior signal integrity in high-frequency operations, minimizing signal attenuation and ensuring stable data transmission
- High Tg and excellent thermal stability enable reliable operation in high-temperature environments, suitable for aerospace and aviation applications
- Copper-matched CTE reduces thermal stress between copper layers and substrate, preventing circuit damage and enhancing long-term reliability
- FR4-compatible processing simplifies manufacturing processes, reducing production costs and improving production efficiency
- Low moisture absorption prevents performance degradation due to humidity, ensuring consistent performance in diverse environmental conditions
- UL-94V0 certification guarantees high fire safety, meeting the strict safety requirements of critical applications
- 100% electrical testing before shipment ensures product quality and reduces the risk of defective products reaching customers
- Worldwide availability supports global project deployment, facilitating easy access for international customers
4. PCB Construction Specifications
- Layer count: 2-layer
- Base material: WL-CT440
- Board dimensions: 56.5mm x 89.65 mm (1PCS), tolerance of +/- 0.15mm
- Minimum Trace/Space: 6/7 mils
- Minimum Hole Size: 0.35mm
- No Blind vias
- Finished board thickness: 0.3mm
- Finished Cu weight: 1oz (1.4 mils) for outer layers
- Via plating thickness: 20 μm
- Surface finish: Immersion gold
- Top Silkscreen: White
- Bottom Silkscreen: No
- Top Solder Mask: Green
- Bottom Solder Mask: No
- 100% Electrical test used prior to shipment
5. PCB Stackup Configuration
2-layer rigid PCB structure, detailed as follows:
- Copper_layer_1: 35 μm
- WL-CT440: 0.254 mm (10mil)
- Copper_layer_2: 35 μm
6. PCB Technical Statistics
- Components: 23
- Total Pads: 56
- Thru Hole Pads: 30
- Top SMT Pads: 26
- Bottom SMT Pads: 0
- Vias: 32
- Nets: 2
7. Supplementary Product Information
- Type of artwork supplied: Gerber RS-274-X
- Accepted standard: IPC-Class-2
- Availability: Worldwide
8. Typical Applications
- Aerospace equipment, space, cabin equipment, aircraft
- Microwave, antenna, phase-sensitive antenna
- Early warning radar, airborne radar
- Phased array antenna, beam wave network
- Satellite communication, navigation
- Power amplifier
9. Conclusion
Wangling WL-CT440 2-Layer high-frequency PCB board is a high-performance electronic component designed with advanced WL-CT440 high-frequency material. It integrates low-loss dielectric performance, excellent thermal stability, copper-matched CTE, and convenient processing characteristics, fully meeting the rigorous requirements of critical high-frequency applications such as aerospace equipment, satellite communication, and radar systems. With compliance to international quality standards and global availability, WL-CT440 circuit board provides a cost-effective and reliable solution for global customers' high-frequency electronic product development and production needs.
