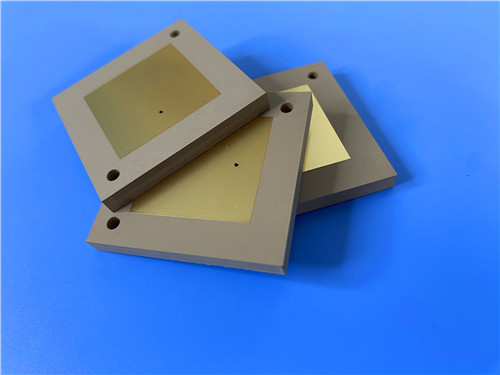

Rogers TP960 High Frequency PCB Board Built on 19.6mil Substrate with ENIG Surface Finish for Advanced Navigation Systems
Rogers TP960 High Frequency PCB Board Built on 19.6mil Substrate with ENIG Surface Finish for Advanced Navigation Systems
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
1. Rogers TP960 PCB Overview
Rogers TP960 High-Frequency PCB is built on the innovative TP series thermoplastic circuit laminates, a distinctive solution in the electronic components industry. The dielectric layer of TP-type laminates is formulated with ceramics and polyphenylene oxide (PPO) resin, eliminating the need for fiberglass reinforcement. This unique composition allows for precise tuning of the dielectric constant by adjusting the proportion of ceramics and PPO resin. Boasting a specialized manufacturing process, Rogers TP960 PCB substrate achieves superior dielectric performance and exceptional reliability. It’s important to clarify the TP material nomenclature: "TP" denotes copper-free smooth surface material, TP-1 stands for single-sided copper-clad material, and TP-2 refers to double-sided copper-clad material. For circuit design flexibility, the dielectric constant of TP series materials (including TP960) can be selected arbitrarily within the 3 to 25 range, maintaining stable performance across operating conditions. Common dielectric constant options include 3.0, 4.4, 6.0, 6.15, 9.2, 9.6, 9.8, 10.2, 11, 16, and 20. Characterized by low dielectric loss, the material exhibits minimal loss variation even as frequency increases, with negligible changes below 10 GHz, making it highly suitable for high-frequency electronic applications.
2. Key Features
- Dielectric constant (Dk) of 9.6±0.19 at 10GHz
- Dissipation factor of 0.0012 at 10GHz
- Low temperature coefficient of dielectric constant (TCDK) of -40 ppm/°C, operating within -55°C to 150°C
- Controlled coefficient of thermal expansion (CTE): 40 ppm/°C (x-axis), 40 ppm/°C (y-axis), 55 ppm/°C (z-axis) for -55°C to 150°C range
- Thermal conductivity rating of 0.65 W/mk
- Extremely low moisture absorption rate of 0.01%
- Meets UL 94-V0 flammability safety standard
3. Core Benefits
- Superior dielectric stability ensures consistent signal integrity in high-frequency operations, minimizing signal attenuation and crosstalk
- Low TCDK and optimized CTE reduce thermal stress and deformation, extending the PCB’s service life in harsh temperature environments
- Minimal moisture absorption prevents performance degradation due to humidity, ensuring reliable operation in diverse environmental conditions
- UL 94-V0 certification ensures enhanced fire safety, making it applicable for critical and demanding application scenarios
- 100% electrical testing before shipment guarantees consistent product quality and reduces post-delivery failure risks
- Global availability facilitates easy access for international customers, supporting seamless global project implementation
4. PCB Construction Specifications
- Base material: TP960
- Layer count: Double sided
- Board dimensions: 108mm x 96 mm (1PCS), with a tolerance of +/- 0.15mm
- Minimum Trace/Space: 5/6 mils
- Minimum Hole Size: 0.3mm
- No Blind vias
- Finished board thickness: 0.6mm
- Finished Cu weight: 1oz (1.4 mils) for outer layers
- Via plating thickness: 20 μm
- Surface finish: ENIG
- Top Silkscreen: No
- Bottom Silkscreen: No
- Top Solder Mask: No
- Bottom Solder Mask: No
- 100% Electrical test conducted prior to shipment
5. PCB Stackup Configuration
2-layer rigid PCB structure, detailed as follows:
- Copper_layer_1: 35 μm
- TP960 Core: 0.5 mm (19.6mil)
- Copper_layer_2: 35 μm
6. PCB Technical Statistics
- Components: 56
- Total Pads: 92
- Thru Hole Pads: 45
- Top SMT Pads: 47
- Bottom SMT Pads: 0
- Vias: 34
- Nets: 2
7. Supplementary Product Information
- Type of artwork supplied: Gerber RS-274-X
- Quality standard: IPC-Class-2
- Availability: Worldwide
8. Target Applications
- Global Satellite Navigation System
- Missile-borne systems
- Fuze technology
- Miniaturized antenna
9. Conclusion
Rogers TP960 19.6mil Double-Sided PCB is a premium electronic component crafted from advanced TP960 high-frequency material. Rogers TP960 printed circuit board combines exceptional dielectric performance, stable thermal characteristics, and rigorous quality control, effectively meeting the high-precision requirements of critical high-frequency applications such as Global Satellite Navigation Systems, missile-borne systems, and miniaturized antennas. With global availability and adherence to international quality benchmarks, Rogers TP960 laminate offers a dependable and high-performance solution for global customers engaged in high-frequency electronic product design and manufacturing.
