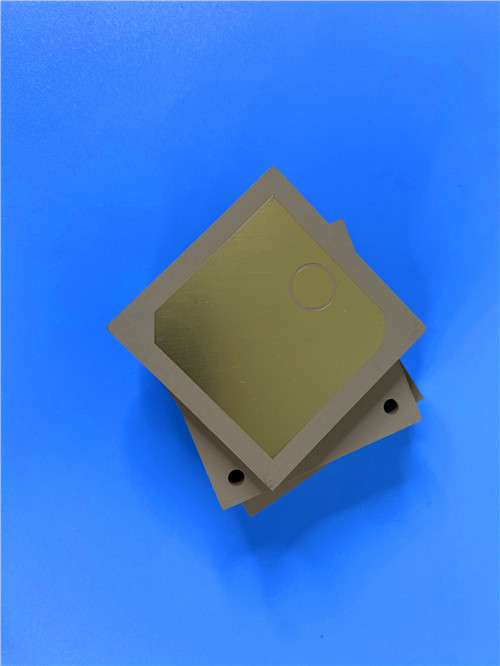

Rogers TP600 Double-Sided 19.6mil High-Frequency PCB with ENEPIG--Excellent Dielectric Performance for Satellite Navigation
Rogers TP600 Double-Sided 19.6mil High-Frequency PCB with ENEPIG--Excellent Dielectric Performance for Satellite Navigation
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
1. Rogers TP600 PCB Introduction
Rogers TP600 High-Frequency PCB is fabricated using the industry-unique TP series thermoplastic high-frequency material. The dielectric layer of TP-type laminates is composed of ceramics and polyphenylene oxide resin (PPO) without fiberglass reinforcement, enabling precise adjustment of dielectric constant by modifying the ratio of ceramics to PPO resin. Featuring a specialized production process, Rogers TP600 RF Circuit Board delivers outstanding dielectric performance and high reliability. It should be noted that "TP" refers to copper-free smooth surface material, while TP-1 and TP-2 denote single-sided and double-sided copper-clad materials respectively. The dielectric constant of Rogers TP600 can be flexibly selected within the range of 3 to 25 based on circuit requirements, ensuring excellent stability. Common dielectric constant options include 3.0, 4.4, 6.0, 6.15, 9.2, 9.6, 9.8, 10.2, 11, 16, and 20. With low dielectric loss, the loss increases slightly with rising frequency but remains relatively stable below 10 GHz, making TP series PCB material an ideal choice for high-frequency applications.
2. PCB Features
- Dielectric constant (Dk) of 6±0.12 at 10GHz
- Dissipation factor of 0.0010 at 10GHz
- Low TCDK of -50 ppm/°C within the temperature range of -55°C to 150°C
- Controlled coefficient of thermal expansion (CTE): 50 ppm/°C (x-axis), 50 ppm/°C (y-axis), 60 ppm/°C (z-axis) from -55°C to 150°C
- Thermal conductivity of 0.55 W/mk
- Ultra-low moisture absorption of 0.01%
- Complies with UL 94-V0 flammability standard
3. PCB Benefits
- Stable dielectric performance ensures reliable signal transmission in high-frequency scenarios, reducing signal loss and interference
- Low TCDK and controlled CTE minimize thermal deformation, enhancing the PCB's durability and lifespan in extreme temperature environments
- Ultra-low moisture absorption prevents performance degradation caused by moisture, ensuring consistent reliability in various humidity conditions
- UL 94-V0 certification guarantees high safety and fire resistance, suitable for demanding application environments
- 100% electrical test prior to shipment ensures product quality and reduces the risk of defective products reaching customers
- Worldwide availability enables global customers to access the product conveniently, supporting international project deployment
4. PCB Construction Details
- Base material: TP600
- Layer count: Double sided
- Board dimensions: 42mm x 45 mm (1PCS), tolerance of +/- 0.15mm
- Minimum Trace/Space: 7/6 mils
- Minimum Hole Size: 0.4mm
- No Blind vias
- Finished board thickness: 0.6mm
- Finished Cu weight: 1oz (1.4 mils) for outer layers
- Via plating thickness: 20 μm
- Surface finish: ENEPIG
- Top Silkscreen: No
- Bottom Silkscreen: No
- Top Solder Mask: No
- Bottom Solder Mask: No
- With Countersunk holes
- 100% Electrical test used prior to shipment
5. PCB Stackup
2-layer rigid PCB, with the following structure:
- Copper_layer_1: 35 μm
- TP600 Core: 0.5 mm (19.6mil)
- Copper_layer_2: 35 μm
6. PCB Statistics
- Components: 19
- Total Pads: 56
- Thru Hole Pads: 25
- Top SMT Pads: 31
- Bottom SMT Pads: 0
- Vias: 78
- Nets: 2
7. Additional Product Information
- Type of artwork supplied: Gerber RS-274-X
- Quality standard: IPC-Class-2
- Availability: Worldwide
8. Typical Applications
- Global Satellite Navigation System
- Missile-borne systems
- Fuze technology
- Miniaturized antenna
9. Summary
Rogers Double-Sided TP600 High-Frequency PCB is a high-performance electronic component engineered with advanced TP600 material. It integrates excellent dielectric properties, stable thermal performance, and reliable quality, fully meeting the stringent requirements of high-frequency applications such as Global Satellite Navigation System, missile-borne systems, and miniaturized antennas. With worldwide availability and compliance with international quality standards, TP600 0.6mm PCB provides a trustworthy solution for global customers' high-frequency electronic product development and production needs.
