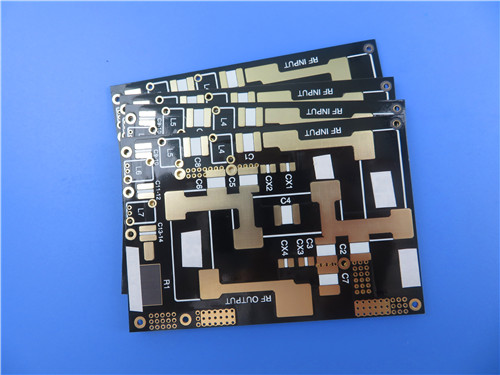

Wangling F4BTM300 2-Layer 0.3mm PCB High-Reliability RF/Microwave Substrate with ENIG for Aerospace and Military Use
Wangling F4BTM300 2-Layer 0.3mm PCB High-Reliability RF/Microwave Substrate with ENIG for Aerospace and Military Use
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
1. Wangling F4BTM300 PCB Introduction
Wangling F4BTM300 High Frequency PCB is fabricated using F4BTM300 laminates, which are produced through a precise manufacturing process involving the scientific formulation of glass fiber cloth, nano-ceramic fillers, and polytetrafluoroethylene (PTFE) resin. Built on the F4BM dielectric layer, F4BTM300 PCBs incorporate high dielectric constant and low loss nano-ceramics into their substrate structure. This integration not only enhances the dielectric constant but also delivers superior heat resistance, a reduced thermal expansion coefficient, increased insulation resistance, and improved thermal conductivity, all while maintaining excellent low loss characteristics. Furthermore, F4BTM300 2-layer rigid PCBs utilize F4BTM laminates specifically paired with reverse-treated RTF copper foil, ensuring exceptional performance in terms of Passive Intermodulation (PIM), precise line control, and minimized conductor loss, making them ideal for high-frequency and high-reliability applications.
2. Features of F4BTM300 PCB
- Dielectric constant (Dk) of 3 +/- 0.06 at 10GHz
- Dissipation factor of 0.0018 at 10GHz and 0.0023 at 20GHz
- Coefficient of Thermal Expansion (CTE): x-axis 15 ppm/°C, y-axis 16 ppm/°C, z-axis 72 ppm/°C (temperature range: -55°C to 288°C)
- Low thermal coefficient of Dk at -75 ppm/°C (temperature range: -55°C to 150°C)
- Moisture absorption of 0.05%
- UL-94V0 flammability rating
3. Benefits of F4BTM300 PCB
- Superior high-frequency performance with stable Dk and low dissipation factor, ensuring minimal signal loss in RF and microwave applications
- Excellent thermal stability and low CTE across multiple axes, reducing the risk of board warpage and component failure under extreme temperature fluctuations
- High insulation resistance and improved thermal conductivity, enhancing overall reliability and service life in harsh operating environments
- Exceptional PIM performance and precise line control due to the pairing of F4BTM laminates with reverse-treated RTF copper foil, ensuring accurate signal transmission
- Low moisture absorption (0.05%) and UL-94V0 flammability rating, meeting strict safety and environmental requirements for critical applications
4. PCB Construction Details
- Base material: F4BTM300
- Layer count: 2 layers
- Board dimensions: 112mm x 89mm per piece, tolerance +/- 0.15mm
- Minimum Trace/Space: 4/5 mils
- Minimum Hole Size: 0.4mm
- Blind vias: No
- Finished board thickness: 0.3mm
- Finished Cu weight: 1oz (1.4 mils) for outer layers
- Via plating thickness: 20 μm
- Surface finish: Electroless Nickle Immersion Gold (ENIG)
- Top Silkscreen: No
- Bottom Silkscreen: No
- Top Solder Mask: Black
- Bottom Solder Mask: No
- Electrical test: 100% electrical test conducted prior to shipment
5. PCB Stackup
2-layer rigid PCB with the following stackup configuration:
- Copper_layer_1: 35 μm
- F4BTM300 Core: 0.254 mm (10mil)
- Copper_layer_2: 35 μm
6. PCB Statistics
- Components: 29
- Total Pads: 106
- Thru Hole Pads: 73
- Top SMT Pads: 33
- Bottom SMT Pads: 0
- Vias: 26
- Nets: 2
7. Artwork Type Supplied
Gerber RS-274-X
8. Quality Standard
IPC-Class-2
9. Availability
Worldwide
10. Typical Applications
- Aerospace equipment, space and cabin equipment
- Microwave, RF devices
- Radar, military radar systems
- Feed networks
- Phase-sensitive antennas, phased array antennas
- Satellite communications systems, and more
11. Summary
F4BTM300 2-layer laminate PCB is a high-performance rigid substrate designed for critical high-frequency and high-reliability applications. Leveraging the advanced properties of F4BTM300 laminates, this PCB offers stable dielectric performance, low loss, excellent thermal stability, and exceptional signal integrity. Compliant with IPC-Class-2 quality standards and featuring a robust construction with ENIG surface finish, it meets the stringent requirements of aerospace, military, and satellite communication industries. With worldwide availability and precise manufacturing control, F4BTM300 high-frequency circuit materials is the reliable choice for demanding RF and microwave applications.
