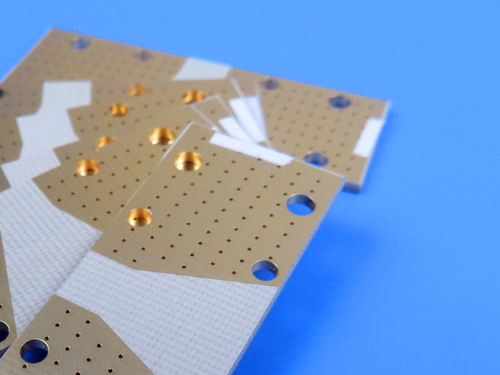

Taconic RF-10 2-Layer 0.75mm PCB - High DK Low Loss Solution for RF and Antenna Applications
Taconic RF-10 2-Layer 0.75mm PCB - High DK Low Loss Solution for RF and Antenna Applications
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
1. RF-10 PCB Introduction
Taconic RF-10 2-layer rigid PCB is fabricated using RF-10 copper clad laminates, a composite material consisting of ceramic-filled polytetrafluoroethylene (PTFE) and woven fiberglass. RF-10 PCB inherits the core advantages of RF-10 laminates, including high dielectric constant and low dissipation factor. The integration of thin woven fiberglass reinforcement not only ensures low dielectric loss but also enhances the board's rigidity for easier handling and improved dimensional stability, making it well-suited for RF-related multilayer circuit applications. Engineered as a cost-effective substrate solution, RF-10 PCB meets industry-acceptable delivery time requirements and addresses the critical need for size reduction in RF applications. Taconic RF-10 PCB exhibits excellent bonding performance with smooth low-profile copper; when paired with such copper, the low dissipation characteristic of RF-10 substrate results in optimal insertion loss at higher frequencies, where skin effect losses play a significant role.
2. Features (RF-10 PCB)
- Dielectric Constant of 10.2 ± 0.3 at 10GHz
- Dissipation Factor of 0.0025 at 10GHz
- High Thermal Conductivity of 0.85 W/mk (Unclad)
- x CTE of 16 ppm/°C, y CTE of 20 ppm/°C, z CTE of 25 ppm/°C
- Low Moisture Absorption of 0.08%
- Flammability Rating of V-0
- 2-layer rigid structure with 1oz (35μm) copper weight
- Immersion Gold surface finish
- 100% Electrical test conducted prior to shipment
3. Benefits (RF-10 PCB)
- High DK enables RF circuit size reduction
- Excellent dimensional stability for reliable performance
- Tight DK tolerance (10.2 +/- 0.3) ensures consistent electrical properties
- High thermal conductivity enhances thermal management capability
- Excellent adhesion to smooth coppers for stable structural integrity
- Low X, Y, Z expansion reduces thermal stress risks
- Excellent price/performance ratio for cost-sensitive applications
4. PCB Construction Details
- Base material: RF-10
- Layer count: 2-layer
- Board dimensions: 90mm x 70mm=1PCS, +/- 0.15mm
- Minimum Trace/Space: 6/6 mils
- Minimum Hole Size: 0.3mm
- No Blind vias
- Finished board thickness: 0.75mm
- Finished Cu weight: 1oz (1.4 mils)
- Via plating thickness: 20 μm
- Surface finish: Immersion Gold
- Top Silkscreen: NO
- Bottom Silkscreen: No
- Top Solder Mask: NO
- Bottom Solder Mask: No
- 100% Electrical test used prior to shipment
5. PCB Stackup
2-layer rigid PCB
- Copper_layer_1 - 35μm (1oz)
- RF-10 Core - 25mil (0.635mm)
- Copper_layer_2 - 35μm (1oz)
6. PCB Statistics
- Components: 21
- Total Pads: 56
- Thru Hole Pads: 41
- Top SMT Pads: 15
- Bottom SMT Pads: 0
- Vias: 44
- Nets: 2
7. Type of Artwork Supplied
Gerber RS-274-X
8. Quality Standard
IPC-Class-2
9. Availability
Worldwide
10. Applications
- Microstrip Patch Antennas
- GPS Antennas
- Passive Components (filters, couplers, power dividers)
- Aircraft Collision Avoidance Systems
- Satellite components
11.Summary
RF-10 PCB is a high-performance 2-layer rigid circuit board with a 0.75mm thickness, designed specifically for RF and antenna applications. Constructed from ceramic-filled PTFE and woven fiberglass composite laminates, it offers high dielectric constant, low dissipation factor, and excellent dimensional stability, enabling RF circuit miniaturization while maintaining optimal signal integrity. Compliant with IPC-Class-2 quality standards and undergoing 100% electrical testing before shipment, this PCB ensures reliable and consistent performance. Equipped with 1oz copper layers, 20μm via plating, and an Immersion Gold surface finish, it provides strong structural adhesion and efficient thermal management. With worldwide availability and an excellent price/performance ratio, RF-10 PCB is an ideal solution for microstrip patch antennas, GPS antennas, passive components, aircraft collision avoidance systems, and satellite components.
