2. Key Features of Taconic CER-10 PCB

1. Constructed with genuine Taconic CER-10 organic-ceramic laminate with a fixed dielectric constant (Dk) of 10 at 10 GHz
2. Ultra-low dissipation factor of 0.0035 at 10 GHz, minimizing high-frequency signal transmission loss
3. Extremely low moisture absorption rate of 0.02%, maintaining stable electrical properties in humid working environments
4. Precise and balanced thermal expansion coefficients: 13 ppm/°C (X-axis), 15 ppm/°C (Y-axis), 46 ppm/°C (Z-axis)
5. No blind via design, optimizing structural stability and simplifying high-frequency circuit design
6. Standard 1oz outer copper weight and 20μm via plating thickness for stable conductivity and solderability
7. Non-solder mask and non-silkscreen design on both sides, fully adapting to high-frequency microwave transmission requirements
8. Complies with V-0 flammability rating tested per IPC-TM 650 standard for enhanced product safety

3. Product Benefits

1. Superior Structural Reliability: Features exceptional interlaminar bond strength and outstanding solder resistance, effectively preventing layer delamination during high-temperature soldering and long-term operation
2. Stable Electrical Consistency: Proprietary organic-ceramic composition achieves ultra-low moisture absorption and uniform electrical performance across various frequency bands
3. Excellent Dimensional Stability: Woven glass reinforcement structure greatly enhances overall dimensional stability and flexural strength, resisting deformation during processing and application
4. Extreme Thermal Environment Adaptability: Optimized low Z-axis CTE value ensures reliable plated through-hole performance even under severe thermal shock and extreme temperature changes
5. Easy Processing & Customization: Compatible with standard PTFE/fiberglass PCB processing methods, supporting conventional shearing, drilling, milling and plating procedures
6. Miniaturization Support: High-Dk compact material properties enable highly integrated and miniaturized microwave circuit design
7. Certified Quality Safety: Strict V-0 flame retardant performance and lot-specific conformance certification guarantee stable batch quality

4. PCB Construction Details

Parameter Item	Specification Details
Base Material	Taconic CER-10 Organic-Ceramic Laminate
Layer Count	2 Layers
Board Dimensions	67mm x 55.9mm (1PCS)
Minimum Trace/Space	5/6 mils
Minimum Hole Size	0.4mm
Blind Vias	No Blind Vias
Finished Board Thickness	0.85mm
Finished Cu Weight	1 oz (1.4 mils) Outer Layers
Via Plating Thickness	20 μm
Surface Finish	Immersion Silver
Top Silkscreen	No
Bottom Silkscreen	No
Top Solder Mask	No
Bottom Solder Mask	No
Pre-Shipment Test	100% Electrical Test Prior to Shipment

5. PCB Stackup

This 2-layer rigid Taconic CER-10 PCB adopts a symmetrical and stable stackup structure with uniform material distribution, ensuring consistent electrical and mechanical performance for high-frequency microwave circuits:

1. Copper Layer 1: 35 μm Finished Copper
2. CER-10 Substrate: 30mil (0.762mm) Organic-Ceramic Dielectric
3. Copper Layer 2: 35 μm Finished Copper

6. PCB Statistics

1. Total Components: 28
2. Total Pads: 39
3. Thru Hole Pads: 21
4. Top SMT Pads: 18
5. Bottom SMT Pads: 0
6. Total Vias: 25
7. Total Nets: 2

7. Artwork & Production Standard

1. Supplied Artwork Type: Gerber RS-274-X
2. Manufacturing Compliance Standard: IPC-Class-2
3. Product Supply Scope: Worldwide Availability

8. Typical PCB Applications

1. High-Frequency Power Amplifiers
2. Microwave Waveguide Filters
3. RF Directional Couplers
4. Custom Microwave Passive Components

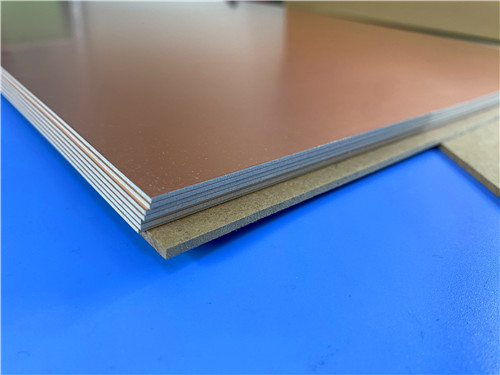

9. Taconic CER-10 Copper Clad Laminate (CCL) Introduction

Taconic CER-10 is a professional high-Dk organic-ceramic copper clad laminate belonging to Taconic premium ORCER material family, specially engineered for high-frequency microwave PCB manufacturing. Built with high-quality woven glass reinforcement, this advanced CCL integrates Taconic’s mature ceramic fill technology and proprietary coated PTFE fiberglass manufacturing expertise, creating a high-performance dielectric material that balances stable electrical performance and robust mechanical strength.

One of the most prominent advantages of CER-10 laminate is its exceptional interlaminar bond strength and superior solder resistance. The exclusive proprietary material composition effectively reduces moisture absorption and delivers uniform, consistent electrical properties throughout diverse working conditions, avoiding parameter drift that commonly occurs on ordinary high-frequency substrates. Equipped with reliable woven glass reinforcement, CER-10 dielectric material achieves excellent dimensional stability and enhanced flexural strength, greatly resisting structural deformation during PCB fabrication and long-term service.

Featuring a low Z-axis thermal expansion coefficient of 46 ppm/°C, this DK-10 laminate maintains outstanding plated-through-hole reliability even under extreme thermal environments and frequent temperature cycling. Different from complex high-frequency substrates, CER-10 copper clad laminates fully support standard PTFE and woven fiberglass processing techniques, allowing conventional shearing, drilling, milling and plating operations for efficient and cost-effective PCB production. CER-10 laminates are commonly double-sided clad with 1/2oz, 1oz or 2oz electrodeposited copper to meet diverse circuit design and conductivity requirements.

In terms of safety and quality control, Taconic CER-10 laminate achieves V-0 flammability rating tested in strict accordance with IPC-TM 650 standards. Each batch of CER-10 CCL is delivered with a professional certificate of conformance containing complete lot-specific test data, ensuring traceable and stable batch quality for high-volume and high-precision microwave PCB projects.



9.1 Core Features of CER-10 CCL

1. High-performance ORCER-series organic-ceramic dielectric with stable Dk 10 performance at 10GHz
2. Excellent interlaminar bonding performance and high-temperature solder resistance
3. Ultra-low moisture absorption and uniform electrical property consistency
4. Woven glass reinforced structure for superior dimensional stability and flexural strength
5. Low Z-axis CTE structure ensures durable PTH reliability under thermal shock
6. Compatible with standard PTFE fiberglass PCB processing procedures
7. Multiple copper clad weight options: 1/2oz, 1oz, 2oz double-sided copper foil
8. Certified V-0 flame retardant grade with complete batch quality certification

9.2 Main CCL Application Scenarios

1. RF & Microwave Power Amplifier Circuits
2. High-Frequency Filters and Couplers
3. Various Microwave Passive Component Boards

1. Datasheet

Property	Test Method	Unit 1	Value 1	Unit 2	Value 2
Dielectric Constant (Nominal)	IPC-TM-650 2.5.5.6	-	10.0	-	10.0
Dissipation Factor @ 10 GHz	IPC-TM-650 2.5.5.5.1	-	0.0035	-	0.0035
Moisture Absorption	IPC-TM-650 2.6.2.1	%	0.02	%	0.02
Dielectric Breakdown	IPC-TM-650 2.5.6	kV	44	kV	44
Volume Resistivity	IPC-TM-650 2.5.17.1	Mohm/cm	2.1 × 10⁸	Mohm/cm	2.1 × 10⁸
Surface Resistivity	IPC-TM-650 2.5.17.1	Mohm	1.1 × 10⁹	Mohm	1.1 × 10⁹
Arc Resistance	IPC-TM-650 2.5.1	Seconds	>180	Seconds	>180
Flexural Strength (MD)	ASTM D 790	psi	16,500	N/mm²	114
Flexural Strength (CD)	ASTM D 790	psi	15,500	N/mm²	107
Tensile Strength (MD)	ASTM D 638	psi	7,700	N/mm²	53
Tensile Strength (CD)	ASTM D 3039	psi	6,700	N/mm²	46
Peel Strength (1 oz. ED)	IPC-TM-650 2.4.8	lbs/linear inch	9	N/mm	1.61
Dimensional Stability (MD)	IPC-TM-650 2.4.39	in/in	-0.0002	mm/mm	-0.0002
Dimensional Stability (CD)	IPC-TM-650 2.4.39	in/in	-0.0003	mm/mm	-0.0003
Density (Specific Gravity)	-	g/cm³	3.05	g/cm³	3.05
Thermal Conductivity	ASTM F 433	W/m/K	0.63	W/m/K	0.63
CTE (X-Y)	ASTM D 3386 (TMA)	ppm/℃	13-15	ppm/℃	13-15
CTE (Z)	ASTM D 3386 (TMA)	ppm/℃	46	ppm/℃	46
Outgassing (% TML)*	ASTM E 595*	%	0.02	%	0.02
Outgassing (% CVCM)*	ASTM E 595*	%	0.01	%	0.01
Outgassing (% WVR)*	ASTM E 595*	%	0.01	%	0.01
Flammability Rating	UL 94	-	V-0	-	V-0

11. Product Summary

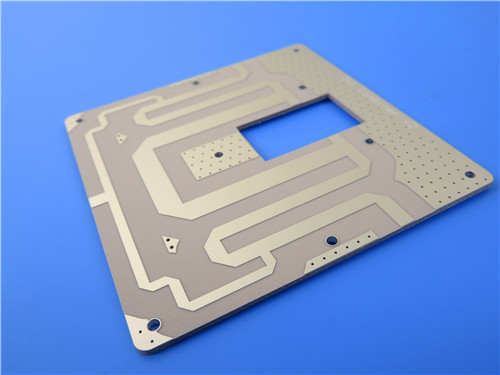

Taconic 2-layer CER-10 high frequency PCB is a high-Dk, low-loss microwave circuit board designed for professional RF and passive component applications. Built with 30mil Taconic CER-10 organic-ceramic substrate and 0.85mm finished thickness, this 2-layer PCB adopts Immersion Silver surface finish and complies with strict IPC-Class-2 manufacturing standards. Benefiting from CER-10 CCL’s excellent interlaminar strength, solder resistance, low moisture absorption and stable thermal expansion performance, this PCB delivers consistent high-frequency electrical performance and outstanding structural durability. Supporting miniaturized circuit design and standard industrial processing, it is widely applied in power amplifiers, waveguide filters, directional couplers and other microwave passive components, providing high-reliability high-frequency circuit solutions for global industrial and commercial microwave systems.
