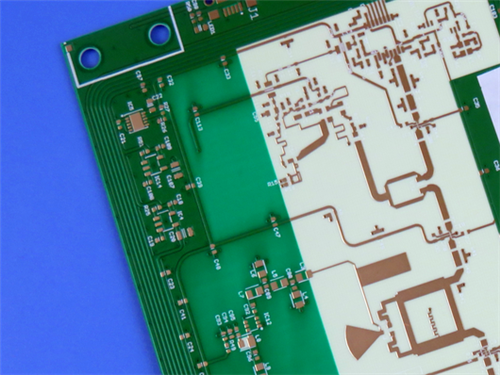

Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
1. Introduction to Rogers RO4533 PCB
Rogers RO4533 2-layer PCB is built on ceramic-filled, glass-reinforced hydrocarbon laminates, engineered to deliver controlled dielectric constant, low-loss performance, and exceptional passive intermodulation (PIM) response—key requirements for mobile infrastructure microstrip antenna applications. Fully compatible with conventional FR-4 processing and high-temperature lead-free soldering protocols, this PCB eliminates the need for the special surface treatments required by traditional PTFE-based laminates during plated through-hole (PTH) preparation. As a cost-effective alternative to standard PTFE antenna technologies, Rogers RO4533 PCB enables designers to strike the perfect balance between performance and affordability for antenna designs. What’s more, it is available in halogen-free formulations to meet the most stringent global “green” manufacturing standards.
The dielectric resin system of Rogers RO4533 PCB board is optimized for ideal antenna performance. Its X and Y-axis coefficients of thermal expansion (CTEs) closely match that of copper, minimizing thermal stresses in printed circuit board antennas and enhancing long-term reliability. With a glass transition temperature (Tg) exceeding 280°C (536°F), the PCB boasts a low Z-axis CTE and outstanding PTH reliability, ensuring consistent performance even under harsh operating conditions.
2. Key Features
Dielectric Constant (Dk) of 3.3 at 10GHz
Dissipation Factor of 0.0025 at 10GHz
X-axis CTE of 13ppm/°C, Y-axis CTE of 11ppm/°C, Z-axis CTE of 37ppm/°C
Glass Transition Temperature (Tg) >280°C
Low Moisture Absorption Rate of 0.02%
Thermal Conductivity of 0.6 W/mK
3. Core Benefits
Low loss, controlled Dk, and superior low PIM response for a broad range of high-frequency applications
Thermoset resin system compatible with standard PCB fabrication processes, reducing production complexity and costs
Excellent dimensional stability, maximizing yield rates even for larger panel sizes
Uniform mechanical properties that maintain structural integrity during handling and assembly
High thermal conductivity for enhanced power handling capabilities and heat dissipation
4. PCB Construction Details
Base Material: RO4533
Layer Count: 2 Layers
Board Dimensions: 46.95mm x 53.13mm per unit, with a tolerance of +/- 0.15mm
Minimum Trace/Space: 4/5 mils
Minimum Hole Size: 0.4mm
Via Type: No blind vias
Finished Board Thickness: 0.8mm
Finished Copper Weight: 1oz (1.4 mils) for outer layers
Via Plating Thickness: 20 μm
Surface Finish: Electroless Nickel Electroless Palladium and Immersion Gold (ENEPIG)
Top Silkscreen: White
Bottom Silkscreen: None
Top Solder Mask: Green
Bottom Solder Mask: None
Quality Assurance: 100% electrical test conducted prior to shipment
5. PCB Stackup
2-layer rigid PCB stackup configuration (from top to bottom):
Copper Layer 1: 35 μm
Rogers 4533 Core: 0.762 mm (30 mil)
Copper Layer 2: 35 μm
6. PCB Statistics
Components: 20
Total Pads: 46
Thru Hole Pads: 22
Top SMT Pads: 24
Bottom SMT Pads: 0
Vias: 19
Nets: 3
7. Artwork Supply Format
Gerber RS-274-X
8. Quality Standard
IPC-Class-2
9. Availability
Worldwide
10. Typical Applications
Cellular infrastructure base station antennas
WiMAX antenna networks
11. Conclusion
Rogers RO4533 PCB stands out as a high-performance, cost-efficient solution for RF and antenna applications, combining controlled dielectric properties, low loss, and robust mechanical stability. Its compatibility with standard fabrication processes and compliance with green standards make it a versatile choice for designers and manufacturers targeting global high-frequency markets.
