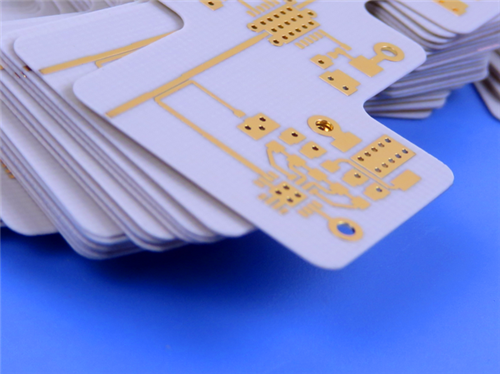

Rogers RO4003C High-Frequency PCB: 2-Layer 0.3mm Board with 1oz Copper and Immersion Silver Finish for RF and Microwave Applications
Rogers RO4003C High-Frequency PCB: 2-Layer 0.3mm Board with 1oz Copper and Immersion Silver Finish for RF and Microwave Applications
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
1. Introduction of Rogers RO4003C PCB
Rogers RO4003C high frequency circuit laminate is a high-performance circuit board designed for demanding RF and microwave applications.
Rogers based 4003C PCB material, utilizing a proprietary woven glass reinforced hydrocarbon/ceramic composite, delivers the superior electrical performance of PTFE/woven glass while maintaining the straightforward manufacturability and lower fabrication cost of standard epoxy/glass. Unlike PTFE-based materials, Rogers RO4003C PCB board requires no special through-hole treatments or handling procedures. It is a non-brominated material that is not UL 94 V-0 rated. A critical advantage is its dimensional stability, driven by a thermal coefficient of expansion (CTE) closely matched to copper (X: 11 ppm/°C, Y: 14 ppm/°C), making it ideal for mixed dielectric multi-layer board (MLB) constructions. Its low Z-axis CTE (46 ppm/°C) ensures reliable plated through-hole quality under thermal shock, and its high Tg (>280°C) guarantees stable performance across all processing temperatures.
2. Key Features of RO4003C PCB
Controlled Dielectric Constant: Stable Dk of 3.38 +/-0.05 at 10 GHz, with a thermal coefficient of +40 ppm/°C.
Low Dissipation Factor: 0.0027 at 10 GHz (0.0021 at 2.5 GHz) for minimal signal loss.
Superior Thermal & Mechanical Properties: Thermal conductivity of 0.71 W/m/K, low moisture absorption (0.06%), and CTE matched to copper for reliability.
Precision Construction: Supports designs with 4/6 mil trace/space, 0.2mm minimum hole size, and features a finished board thickness of 0.3mm with 1oz (35μm) copper layers.
Robust Interconnect: Via plating thickness of 20 μm ensures durable connections in a 2-layer, no-blind-via design.
Stable & Protective Finish: Immersion Silver surface finish with Black top silkscreen (no silkscreen on bottom; no solder mask on top or bottom).
3. Primary Benefits for Designers & Manufacturers
Processes Like FR-4: Enables lower fabrication cost and faster turnaround, using standard methods without the complexity of PTFE.
Ideal for Multilayer Constructions: Excellent dimensional stability supports reliable, high-density MLB designs.
Designed for High-Volume Applications: Competitively priced for performance-sensitive commercial and automotive markets.
Guaranteed Quality: 100% electrical test prior to shipment and adherence to IPC-Class-2 quality standard ensure reliability. Gerber RS-274-X artwork format is accepted.
4. PCB Construction
Stackup: 2-layer rigid construction: Copper (35 μm) / Rogers 4003C Core (0.203 mm) / Copper (35 μm).
Board Details: Dimensions of 54mm x 58mm per piece (±0.15mm). Finished thickness: 0.3mm.
Fabrication Limits: Minimum trace/space: 4/6 mils. Minimum hole size: 0.2mm. No blind vias.
Materials & Finishes: Base material: RO4003C. Finished Cu weight: 1oz outer layers. Via plating: 20 μm. Surface finish: Immersion Silver.
Artwork & Marking: Top Silkscreen: Black. Bottom Silkscreen: No. Top/Bottom Solder Mask: No.
5. Technical Specifications
Quality & Delivery: 100% Electrical test.
Quality standard: IPC-Class-2.
Availability: Worldwide.
6. PCB Statistics
Board Statistics (Example): 14 Components, 22 Total Pads (12 Thru-Hole, 10 Top SMT), 19 Vias, 2 Nets.
7.Typical Applications
Cellular Base Station Antennas and Power Amplifiers, RF Identification Tags, Automotive Radar and Sensors, LNB's for Direct Broadcast Satellites.
8. Conclusion
Rogers 2-layer dual layer 4003C PCB substrate provides an optimal balance of high-frequency performance, manufacturing practicality, and cost-effectiveness for global RF and microwave designs. Its unique properties—such as a stable DK, low loss, and FR-4 compatibility—make it a superior choice for engineers designing cellular infrastructure, automotive radar, and satellite communication systems where reliability and signal integrity are paramount.
