2. Key Features & Benefits



Stable High-Frequency Performance: Features a tightly controlled dielectric constant of 6.15±0.15 @ 10 GHz and low dissipation factor of 0.0027, ensuring consistent signal integrity in RF applications.



Enhanced Mechanical Stability: Woven glass reinforcement provides improved rigidity for easier handling and processing while maintaining excellent dimensional stability for high production yields.



Superior Thermal Management: Offers high thermal conductivity of 0.67 W/mK and CTE values matched to copper (X/Y/Z: 13/13/34 ppm/°C), ensuring reliable performance in thermal cycling environments.



Excellent Manufacturing Characteristics: Provides strong copper peel strength (10.7 lbs/in), smooth surface for finer line etching, and compatibility with epoxy multilayer hybrid designs.



Cost-Effective Solution: Delivers premium high-frequency performance at economical pricing, making it ideal for volume manufacturing in commercial applications.





3. Construction & Technical Specifications

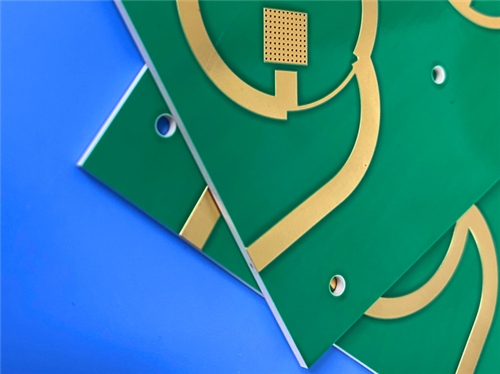

Layer Count & Thickness: 2-layer rigid PCB, 1.4mm finished thickness.



Base Material: Rogers RO3206 ceramic-filled laminate with woven glass reinforcement.



Board Dimensions: 90.92mm x 53.03mm per panel, tolerance ±0.15mm.



Copper Specifications: 1oz (35μm) finished copper on outer layers; 20μm via plating thickness.



Critical Dimensions: Minimum trace/space of 5/5 mils; minimum hole size of 0.3mm; no blind vias.



Surface Finish & Appearance: Immersion gold; green solder mask on top only; white silkscreen on top only.



Quality Assurance: 100% electrical test prior to shipment; IPC-Class-2 accepted standard.





4. PCB Stackup Structure



Layer 1: Copper - 35 μm



Core: RO3206 Laminate - 1.27 mm (50 mil)



Layer 2: Copper - 35 μm





5. PCB Assembly Statistics



Components: 36



Total Pads: 59



Through-Hole Pads: 27



Top SMT Pads: 32



Bottom SMT Pads: 0



Vias: 33



Nets: 2





6. Technical & Supply Information



Artwork Format: Gerber RS-274-X



Quality Standard: IPC-Class-2



Availability: Worldwide





7. Typical Applications

Rogers RO3206 PCB substrate is engineered for advanced high-frequency systems, including:



Automotive Collision Avoidance Systems and GPS Antennas



Wireless Telecommunications Infrastructure and Base Stations



Microstrip Patch Antennas for Wireless Communications



Direct Broadcast Satellites and Datalink Systems



LMDS and Wireless Broadband Equipment



Remote Meter Readers and Power Backplanes



Complex Multi-layer High-Frequency Structures





8. Conclusion

RO3206 high-frequency PCB material provides a robust, cost-effective platform for demanding RF and wireless applications requiring stable electrical properties, enhanced mechanical stability, and reliable thermal performance.



RO3206 printed circuit board, by combining ceramic-filled technology with woven glass reinforcement, enables high-yield manufacturing of complex high-frequency designs for automotive, telecommunications, and satellite communication markets where performance and reliability are essential.
