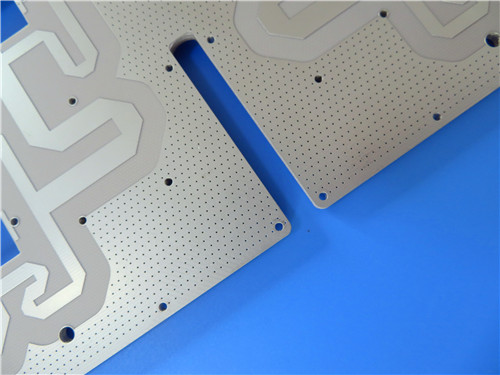

Rogers DiClad 870 High Frequency PCB Built on 5mil Substrate with Immersion Silver for Radar, Antenna and Microwave Applications
Rogers DiClad 870 High Frequency PCB Built on 5mil Substrate with Immersion Silver for Radar, Antenna and Microwave Applications
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
1. Introduction
Rogers DiClad 870 is a high-performance printed circuit board utilizing woven fiberglass reinforced PTFE-based composite laminate. It is designed for high-frequency and RF applications requiring stable electrical performance and low signal loss. Compared with other laminates in the DiClad series, DiClad 870 high-frequency laminate provides lower dielectric constant and dissipation factor at similar thickness by using fewer plies of woven fiberglass and a higher ratio of PTFE content, making it an ideal substrate for high-performance microwave and RF circuits.
2. Rogers DiClad 870 PCB Features
- DK of 2.33 at 10 GHz and 1 MHz, 50% RH
- Dissipation factor of 0.0013 at 10 GHz, 0.0009 at 1MHz, 50% RH
- TcDK of -161 ppm/°C ranging -10~140°C, 10 GHz
- Arc Resistance >180 seconds
- Moisture Absorption 0.02%
- CTE in X-axis of 17 ppm/°C, Y-axis of 29ppm/°C and Z-axis of 217ppm/°C
- Copper Peel Strength of 14 lbs/in, 10s @288°C
- Flammability of UL 94-V0 grade
3. Rogers DiClad 870 PCB Benefits
- Lowest moisture absorption among PTFE based composites
- Stable Dk over a wide frequency range
- Low Dk supports wider line widths for lower insertion loss
4. PCB Construction Details
Item |
Specification |
Base material |
DiClad 870 |
Layer count |
2-layer |
Board dimensions |
112mm x 68mm=1PCS, +/- 0.15mm |
Minimum Trace/Space |
6/7 mils |
Minimum Hole Size |
0.25mm |
Blind vias |
No Blind vias |
Finished board thickness |
0.2mm |
Finished Cu weight |
1oz (1.4 mils) outer layers |
Via plating thickness |
20 μm |
Surface finish |
Immersion Silver |
Top Silkscreen |
White |
Bottom Silkscreen |
No |
Top Solder Mask |
No |
Bottom Solder Mask |
No |
Quality Control |
100% Electrical test prior to shipment |
5. PCB Stackup
2-layer rigid PCB
- Copper_layer_1 - 35 μm
- DiClad 870 - 0.127 mm (5mil)
- Copper_layer_2 - 35 μm
6. PCB Statistics
- Components: 23
- Total Pads: 52
- Thru Hole Pads: 29
- Top SMT Pads: 23
- Bottom SMT Pads: 0
- Vias: 19
- Nets: 2
7. Artwork & Standards
- Type of artwork supplied: Gerber RS-274-X
- Accepted standard: IPC-Class-2
- Availability: worldwide
8. Typical Applications
- Radar Feed Networks
- Commercial Phased Array Networks
- Low Loss Base Station Antennas
- Guidance Systems
- Digital Radio Antennas
- Filters, Couplers, LNAs
9. Conclusion
Rogers DiClad 870 2-Layer high frequency PCB provides stable dielectric performance, ultra-low moisture absorption and excellent high-frequency characteristics. With 0.2mm finished thickness, IPC Class 2 standard and immersion silver surface finish, Rogers DiClad 870 circuit board is widely used in radar, antenna, filter and other high-performance RF and microwave systems.
