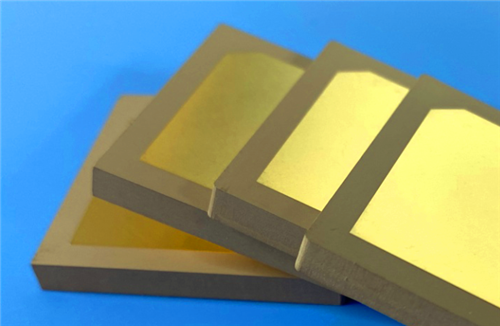

Rogers 15mil 2-Layer TMM10 EPIG PCB Board: High-Performance Circuit Board for Nickel-Free Thermoset Microwave Application
Rogers 15mil 2-Layer TMM10 EPIG PCB Board: High-Performance Circuit Board for Nickel-Free Thermoset Microwave Application
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
1. Introduction
Rogers TMM10 high frequency circuit laminates is manufactured using high-grade thermoset microwave material, which skillfully combines the advantages of PTFE and ceramic-based substrates without being constrained by the mechanical limitations and specialized production processes that often restrict these conventional materials. This nickel-free EPIG (Electroless Palladium Immersion Gold) finished circuit board is engineered to deliver consistent performance for high-frequency applications requiring reliable connectivity and structural stability.
A key advantage of Rogers TMM10 thermoset laminate lies in its optimized material formulation, which eliminates the need for sodium naphthanate treatment prior to electroless plating—simplifying the manufacturing process while ensuring plating reliability. Designed to balance electrical performance and process compatibility, Rogers TMM10 PCB substrate serves as a versatile solution for demanding microwave and RF applications where nickel-free finishes and robust mechanical properties are essential.
2. Features
- Dielectric Constant (Dk): 9.20 +/- 0.230
- Dissipation Factor: 0.0022 at 10GHz
- Thermal Coefficient of Dk: -38 ppm/°K
- Coefficient of Thermal Expansion (CTE) matched to copper for reduced thermal stress
- Decomposition Temperature (Td): 425 °C (TGA)
- CTE (x, y, z axes): 21 ppm/K, 21 ppm/K, 20 ppm/K
- Thermal Conductivity: 0.76 W/mk
- Available Thickness Range: 0.0015 to 0.500 inches, tolerance +/- 0.0015”
3. Benefits
- Exceptional mechanical properties resist creep and cold flow, ensuring long-term structural reliability
- Superior resistance to process chemicals minimizes fabrication-related damage, improving yield rates
- Eliminates the need for sodium naphthanate treatment before electroless plating, streamlining manufacturing
- Thermoset resin base enables reliable wire-bonding, supporting advanced component integration
- Copper-matched CTE prevents thermal stress failures in high-temperature cycling environments
- High decomposition temperature and thermal conductivity enhance performance in high-power applications
- Nickel-free EPIG surface finish meets specialized application requirements and environmental standards
4. PCB Construction Details
- Base material: Rogers TMM10 thermoset microwave composite
- Layer count: Double sided (2-layer rigid circuit board)
- Board dimensions: 85mm x 120mm = 1PCS, tolerance +/- 0.15mm
- Minimum Trace/Space: 5/7 mils
- Minimum Hole Size: 0.4mm
- Blind vias: None
- Finished board thickness: 0.5mm
- Finished Cu weight: 1oz (1.4 mils) outer layers
- Via plating thickness: 20 μm
- Surface finish: Electroless Palladium Immersion Gold (EPIG - Nickel free)
- Top Silkscreen: White
- Bottom Silkscreen: No
- Top Solder Mask: Green
- Bottom Solder Mask: No
- Quality inspection: 100% Electrical test conducted prior to shipment
5. PCB Stackup
2-layer rigid thermoset microwave circuit board
- Copper_layer_1 - 35 μm (1oz)
- Rogers TMM10 core material - 0.381 mm (15mil)
- Copper_layer_2 - 35 μm (1oz)
6. PCB Statistics
- Components: 25
- Total Pads: 36
- Thru Hole Pads: 12
- Top SMT Pads: 24
- Bottom SMT Pads: 0
- Vias: 25
- Nets: 2
7. Type of Artwork Supplied
Gerber RS-274-X
8. Quality Standard
IPC-Class-2
9. Availability
Worldwide
10. Typical Applications
- Chip testers
- Dielectric polarizers
- Satellite communication systems
- GPS antennas
- Patch antennas
Conclusion
Rogers TMM10 15mil 2-layer EPIG PCB is a high-performance nickel-free thermoset microwave solution designed for demanding RF and microwave applications.
Rogers TMM10 high-frequency material integrates the advantages of PTFE and ceramic substrates to offer superior mechanical properties, simplified manufacturing (no sodium naphthanate treatment required), and reliable wire-bonding capabilities. With its copper-matched CTE, high decomposition temperature, and nickel-free EPIG finish, TMM10 circuit board meets IPC-Class-2 quality standards and is available worldwide, making it an excellent choice for engineers developing high-reliability electronic systems.
