2.Technical Specifications

Specification Category	Details

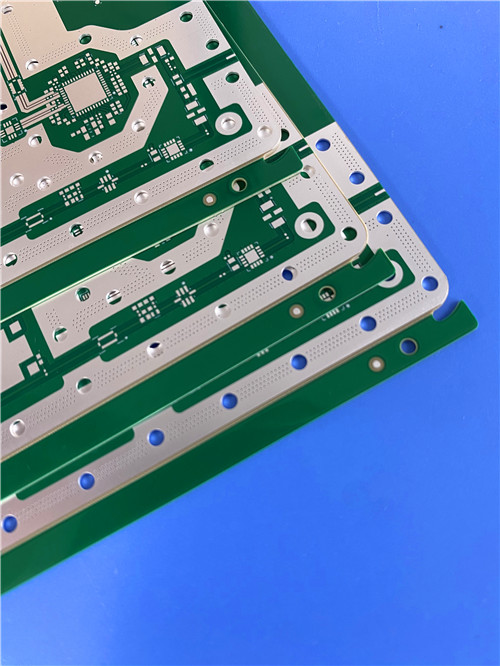

PCB Configuration	4-layer Construction
Layer Stackup	5mil MT77 + 1078 PP + 5mil MT77
Copper Distribution	Inner Layers: 0.5oz / Outer Layers: 1oz
Finished Board Thickness	0.6mm
Surface Finish	Immersion Silver
Solder Mask & Legend	Green Solder Mask, White Silkscreen
Panel Dimensions	126 × 78mm (Including Routing Coupon)
Via Specification	0.25mm Via, Resin Filled and Capped
Dielectric Constant (Dk)	Stable from -40°C to +140°C
Dissipation Factor (Df)	0.0017
UL Certification	E41625
Material Availability	2.5 to 60mil Thickness Options





3.Core Technology: Understanding Resin Filling for Enhanced Reliability

What is Via Resin Filling?

Via resin filling is a specialized PCB manufacturing process where conductive vias are completely filled with a non-conductive epoxy resin before subsequent plating and surface finishing. This advanced technique provides multiple performance advantages:



Improved Thermal Management: Eliminates air pockets that can cause thermal expansion issues



Enhanced Signal Integrity: Prevents solder wicking and ensures consistent impedance control



Surface Planarity: Creates a flat surface for fine-pitch component placement



Structural Reinforcement: Increases mechanical durability, particularly in high-vibration environments



Our 0.25mm resin-filled vias with capping plating ensure reliable performance in demanding automotive and RF applications where thermal cycling and mechanical stress are common challenges.





4.Material Advantages: Why Astra® MT77 Stands Out

Exceptional Electrical Stability

MT77 4-layer PCB maintains consistent dielectric properties across wide frequency and temperature ranges, making it ideal for W-band applications and automotive radar systems operating in challenging environmental conditions.



Manufacturing Efficiency

Compatible with standard FR-4 processing techniques, MT77 laminate reduces production complexity while offering:



Reduced drill wear compared to ceramic-filled materials



No plasma desmear requirements



Excellent dimensional stability for multi-layer constructions



Support for HDI and VIPPO designs



Cost-Effective Performance

As a viable alternative to traditional PTFE and high-cost microwave laminates, MT77 printed circuit board delivers superior electrical characteristics while maintaining competitive pricing and shorter lead times.





5.Application Solutions

Automotive Radar Systems: Adaptive cruise control, blind spot detection, pre-crash warning systems



Millimeter-Wave Communications: 5G infrastructure, point-to-point radio links, satellite communications



Advanced Driver Assistance Systems (ADAS): Lane departure warning, autonomous driving sensors



High-Frequency Test Equipment: Signal analyzers, network analyzers, research instrumentation





6.Conclusion

MT77-based PCB solution represents the convergence of material science excellence and practical engineering implementation. By combining ultra-low loss characteristics with robust manufacturing compatibility, MT77 high frequency circuit laminate provides designers with a reliable platform for high-frequency applications where performance consistency cannot be compromised.



For technical consultation regarding layer stackup optimization, impedance control, or application-specific adaptations, our engineering team offers comprehensive support throughout the design and prototyping phases.
