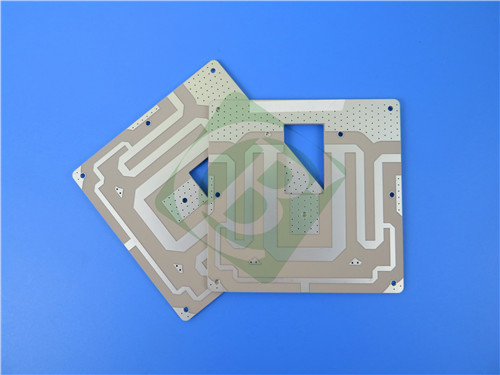

Taconic RF-35 2-Layer 10mil PCB Low-Cost Immersion silver Board for Power Amplifiers and Filters
Taconic RF-35 2-Layer 10mil PCB Low-Cost Immersion silver Board for Power Amplifiers and Filters
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
1. Taconic RF-35 Ceramic-Filled Laminate
Taconic RF-35 PCB delivers exceptional value in high-frequency applications through its advanced ORCER organic-ceramic laminate construction. This innovative material achieves the ideal balance of superior electrical performance and cost-effectiveness for commercial RF designs. The laminate's unique composition ensures reliable signal integrity with minimal phase distortion, while maintaining competitive pricing that makes it particularly suitable for high-volume production requirements.This innovative substrate combines Taconic's expertise in ceramic fill technology with advanced coated PTFE fiberglass reinforcement, delivering exceptional performance for commercial RF applications.
Engineered for high-volume production, RF-35 laminate demonstrates outstanding peel strength even with 1/2 ounce and 1 ounce copper cladding - surpassing standard epoxy materials and providing crucial reliability for board rework operations. The material's ultra-low moisture absorption rate and minimal dissipation factor ensure stable electrical performance, effectively minimizing phase shift variations across frequency ranges while maintaining competitive pricing for cost-sensitive applications.
2. PCB Construction & Specifications
Board Type: 2-Layer Rigid PCB
Base Material: Taconic RF-35 High-Frequency Laminate
Quality Standard: IPC-6012 Class 2
Board Dimensions: 71mm x 60mm (±0.15mm)
Finished Thickness: 0.3mm
Copper Weight: 1oz (35μm) outer layers
Minimum Trace/Space: 4/6 mils
Minimum Hole Size: 0.2mm
Blind Vias: Not Applicable
Via Plating Thickness: 25μm
Surface Finish: Immersion Silver
Solder Mask: None (Top & Bottom)
Silkscreen: White (Top), None (Bottom)
Electrical Test: 100% tested prior to shipment
3. PCB Stackup Configuration
Layer 1: Copper - 35μm
Core: RF-35 Laminate - 0.254mm (10mil)
Layer 2: Copper - 35μm
4. PCB Statistics
Components: 10
Total Pads: 55
Thru Hole Pads: 41
Top SMT Pads: 14
Bottom SMT Pads: 0
Vias: 21
Nets: 2
5. Artwork & Standards
Type of artwork supplied: Gerber RS-274-X
Quality standard: IPC-Class-2
Availability: worldwide
6. Material Features
Dielectric Constant: 3.5 @ 1.9GHz
Dissipation Factor: 0.0018 @ 1.9GHz
Dielectric Breakdown: 41 kV
X CTE: 19 ppm/°C
Y CTE: 24 ppm/°C
Z CTE: 64 ppm/°C
Flammability: UL-94 V0
7. Material Benefits
Low Cost
Excellent Peel Strength
Exceptionally Low Dissipation Factor
Low Moisture Absorption
Enhanced Surface Smoothness
8. Typical Applications
Power amplifiers
Filters and couplers
Passive components
9. Global Availability
Taconic RF-35 PCB solution is available for worldwide manufacturing and distribution, supporting both prototype development and high-volume production requirements across global markets.
10. Technical Support
Complete engineering support available for design optimization and manufacturing consultation to ensure optimal performance of your RF-35 based circuit boards.
