Taconic RF-10 PCB 20mil 2-Layer PCB with Immersion Silver for Aerospace RF and GPS Antenna Applications
Taconic RF-10 PCB 20mil 2-Layer PCB with Immersion Silver for Aerospace RF and GPS Antenna Applications
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
1. RF-10 PCB Introduction

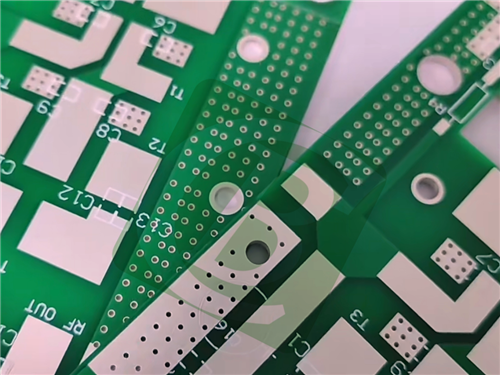

Taconic RF-10 PCB utilizes RF-10 ceramic-filled PTFE material in a 2-layer configuration with 0.6mm thickness. Designed for high-frequency RF applications, it features immersion-silver surface finish, 1oz copper weight, and complies with IPC-Class-2 quality standards. The board offers excellent high-dielectric-constant performance ideal for size-constrained RF circuits.
2. PCB Construction Details:
Base Material: RF-10
Layer Count: 2-Layer
Board Dimensions: 130mm × 60mm = 1PCS, ±0.15mm
Minimum Trace/Space: 5/7 mils
Minimum Hole Size: 0.3mm
No Blind Vias
Finished Board Thickness: 0.6mm
Finished Cu Weight: 1oz (1.4 mils)
Via Plating Thickness: 20 μm
Surface Finish: Immersion Silver
Top Silkscreen: White
Bottom Silkscreen: No
Top Solder Mask: Green
Bottom Solder Mask: No
100% Electrical Test Before Shipment
3. PCB Stackup: 2-Layer
Copper Layer 1 - 35μm (1oz)
RF-10 Core - 20mil (0.508mm)
Copper Layer 2 - 35μm (1oz)
4. PCB Statistics:
Components: 19
Total Pads: 44
Thru-Hole Pads: 32
Top SMT Pads: 12
Bottom SMT Pads: 0
Vias: 27
Nets: 2
5. Artwork Format: Gerber RS-274-X
6. Quality Standard: IPC-Class-2
7. Availability: Worldwide
8. RF-10 Material Properties:
Dielectric Constant: 10.2 ± 0.3 @10GHz
Dissipation Factor: 0.0025 @10GHz
Thermal Conductivity: 0.85 W/mk (Unclad)
CTE: X-16 ppm/°C, Y-20 ppm/°C, Z-25 ppm/°C
Moisture Absorption: 0.08%
Flammability: UL 94 V-0
Ceramic-Filled PTFE Construction
Woven Fiberglass Reinforcement
Smooth Copper Compatibility
9. Material Benefits:
High DK for Circuit Size Reduction
Excellent Dimensional Stability
Tight DK Tolerance
Enhanced Thermal Management
Superior Copper Adhesion
Low CTE in All Directions
Cost-Effective Performance
10. Typical Applications:
Microstrip Patch Antennas
GPS Antennas
RF Passive Components
Aircraft Collision Avoidance Systems
Satellite Communication Components
Filters and Couplers
Power Dividers
