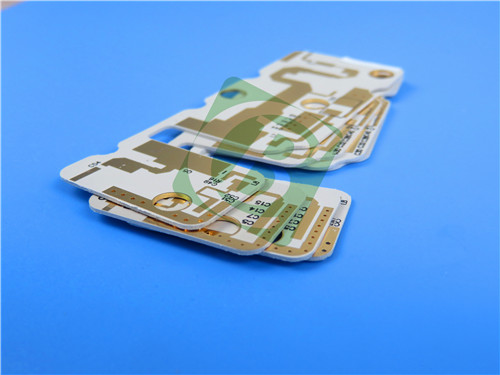

2. PCB Construction Details:



Base Material: Rogers RO3003



Layer Count: 2 Layers



Board Dimensions: 33mm × 63mm = 1PCS



Minimum Trace/Space: 5/7 mils



Minimum Hole Size: 0.3mm



No Blind Vias



Finished Board Thickness: 1.4mm



Finished Cu Weight: 1oz (1.4 mils) Outer Layers



Via Plating Thickness: 20 μm



Surface Finish: Immersion Gold



Top Silkscreen: Black



Bottom Silkscreen: No



Top Solder Mask: No



Bottom Solder Mask: No



100% Electrical Test Before Shipment





3. PCB Stackup: 2-Layer



Copper Layer 1 - 35 μm



Rogers RO3003 Substrate - 50mil (1.27mm)



Copper Layer 2 - 35 μm





4. PCB Statistics:



Components: 11



Total Pads: 32



Thru-Hole Pads: 20



Top SMT Pads: 12



Bottom SMT Pads: 0



Vias: 10



Nets: 2





5. Artwork Format: Gerber RS-274-X



6. Quality Standard: IPC-Class-2



7. Availability: Worldwide





8. RO3003 Material Properties:



Dielectric Constant: 3.0 ± 0.04 @10GHz/23°C



Dissipation Factor: 0.001 @10GHz/23°C



Thermal Decomposition: >500°C



Thermal Conductivity: 0.5 W/mK



Moisture Absorption: 0.04%



CTE: X-17 ppm/°C, Y-16 ppm/°C, Z-25 ppm/°C



Ceramic-Filled PTFE Composite



Stable Dk vs Temperature and Frequency





9. Material Benefits:



Low Loss up to 77GHz



Excellent Mechanical Stability



Reliable Multi-layer Construction



Stable Dielectric Constant



Low In-plane CTE (Matches Copper)



Cost-Effective Manufacturing



Superior Dimensional Stability





10. Typical Applications:



Automotive Radar Systems (77GHz)



5G Wireless Infrastructure



GPS Antennas



Cellular Power Amplifiers



Patch Antennas



Satellite Communications



Microwave Filters



Voltage Controlled Oscillators
