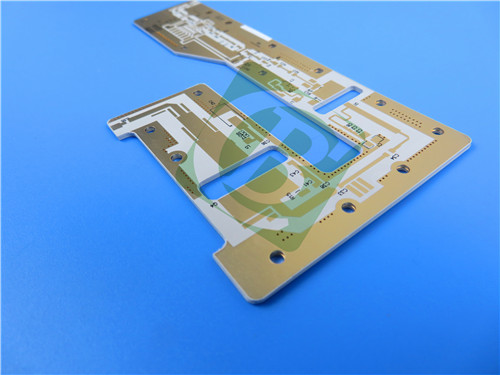

2. PCB Construction Details:



Base Material: Rogers RO3006



Layer Count: 2 Layers



Board Dimensions: 20mm × 25mm = 1PCS



Minimum Trace/Space: 5/9 mils



Minimum Hole Size: 0.2mm



No Blind Vias



Finished Board Thickness: 0.2mm



Finished Cu Weight: 1oz (1.4 mils)



Via Plating Thickness: 20 μm



Surface Finish: Pure Gold 30μ" for Wire Bonding



Top Silkscreen: No



Bottom Silkscreen: No



Top Solder Mask: No



Bottom Solder Mask: No



100% Electrical Test Before Shipment

3. PCB Stackup: 2 Layer Rigid PCB



Copper Layer 1 - 35 μm



Rogers RO3006 - 5mil (0.127mm)



Copper Layer 2 - 35 μm





4. PCB Statistics:



Components: 3



Total Pads: 14



Thru Hole Pads: 10



Top SMT Pads: 4



Bottom SMT Pads: 0



Vias: 16



Nets: 2



5. Artwork Format: Gerber RS-274-X



6. Quality Standard: IPC-Class-2



7. Availability: Worldwide



8. RO3006 Material Features:



Dielectric Constant: 6.15 ± 0.15 @10GHz/23°C



Dissipation Factor: 0.002 @10GHz/23°C



Thermal Decomposition Temperature: >500°C



Thermal Conductivity: 0.79 W/mK



Moisture Absorption: 0.02%



CTE: X-axis 17 ppm/°C, Y-axis 17 ppm/°C, Z-axis 24 ppm/°C



Ceramic Filled PTFE Composite



Stable Dielectric Constant Over Temperature





9. Material Benefits:



Uniform Mechanical Properties



Suitable for Multi-layer Board Designs



Low In-plane CTE Matching Copper



Reliable Surface Mount Assemblies



Excellent Dimensional Stability



Cost Effective Manufacturing



Stable Electrical Performance





10. Typical Applications:



Automotive Radar Systems



GPS Antennas



Cellular Communication Systems



Patch Antennas



Satellite Communications



Microwave Circuits



Power Amplifiers



RF Components
