1.Introduction of TP series

For high-frequency circuit designers requiring precise control over electrical properties, TP material offers an ideal solution. Its unique dielectric layer—a ceramic and PPO resin composite without fiberglass—allows the dielectric constant to be finely tuned between 3.0 and 25.0. This results in exceptional performance, including stable Dk, low loss, and high reliability across a wide frequency range.



The product family is clearly defined: TP (core substrate), TP-1 (single-sided copper), and TP-2 (double-sided copper). You can select from a range of standard Dk values (e.g., 3.0, 6.15, 9.8), with part numbers like TP300 and TP615 directly reflecting the target dielectric constant.





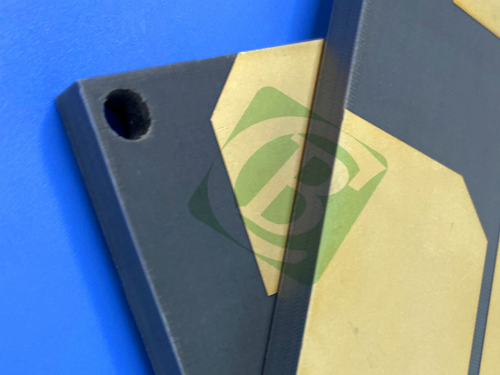

2. Features (TP980 PCB)

- Dielectric constant (Dk) of 9.8±0.2 at 10GHz

- Dissipation factor of .0012 at 10GHz

- Low TCDK at -40 ppm/°C, -55°C to 150°C

- CTE x-axis of 40  ppm/°C, CTE y-axis of 40  ppm/°C, CTE z-axis of 55  ppm/°C, -55°C to 150°C

- Thermal conductivity of 0.65 W/mk

- Moisture absorption of 0.01%

- UL 94-V0



3.PCB Construction details:

    -Base material: TP980

    - Layer count: Double sided

    - Board dimensions:  68mm x 68 mm=1PCS, +/- 0.15mm

    - Minimum Trace/Space:  7/5 mils

    - Minimum Hole Size:  0.7mm

    - No Blind vias.

    - Finished board thickness:  4.1mm

    - Finished Cu weight:  1oz (1.4 mils) outer layers

    - Via plating thickness: 20 μm

    - Surface finish:  Electroless Nickel Immersion Gold (ENIG)

    - Top Silkscreen:          No

    - Bottom Silkscreen:      No

    - Top Solder Mask:  No

    - Bottom Solder Mask: No

    - 100% Electrical test used prior to shipment



4.PCB Stackup:  2-layer rigid PCB

Copper_layer_1 - 35 μm

TF980 Core - 4.0 mm (157.5mil)

Copper_layer_2 - 35 μm



5.PCB Statistics:

    Components:        3

    Total Pads:         13

    Thru Hole Pads:     7

    Top SMT Pads:     6

    Bottom SMT Pads:    0

    Vias:              7

    Nets:              2



6. Type of artwork supplied: Gerber RS-274-X

7. Quality standard: IPC-Class-2

8. Availability: worldwide



9. Some Typical Applications:

- Global Satellite Navigation System

- missile-borne,

- fuze technology

- miniaturized antenna
