Rogers RT/duroid 6002 2-Layer PCB 10mil Immersion Silver Circuit Board for Microwave Applications
Rogers RT/duroid 6002 2-Layer PCB 10mil Immersion Silver Circuit Board for Microwave Applications
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
1. Rogers RT/duroid 6002 PCB Introduction

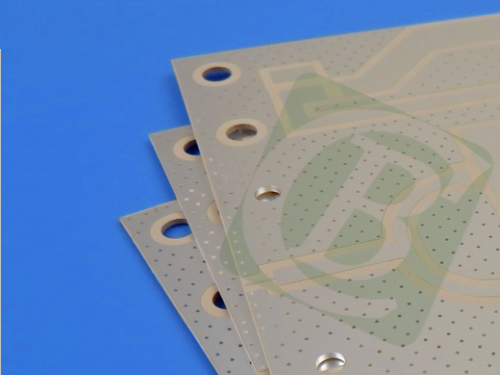

Rogers RT duroid 6002 PCB utilizes ceramic-filled PTFE microwave material in a 2-layer configuration with ultra-thin 0.37mm thickness. Designed for complex microwave structures, this low-loss material features immersion-silver surface finish and provides excellent high-frequency performance. RT/duroid 6002 laminate offers outstanding mechanical and electrical properties, making it ideal for phased-array antennas and radar systems with reliable multi-layer board construction capabilities.
2. PCB Construction Details:
Base Material: Rogers RT/duroid 6002
Layer Count: 2 Layers
Board Dimensions: 68mm × 52mm = 1PCS
Minimum Trace/Space: 5/5 mils
Minimum Hole Size: 0.25mm
No Blind Vias
Finished Board Thickness: 0.37mm
Finished Cu Weight: 1oz (1.4 mils)
Via Plating Thickness: 20 μm
Surface Finish: Immersion Silver
Top Silkscreen: No
Bottom Silkscreen: No
Top Solder Mask: No
Bottom Solder Mask: No
100% Electrical Test Before Shipment
3. PCB Stackup: 2-Layer Rigid PCB
Copper Layer 1 - 35 μm
Rogers RT/duroid 6002 Substrate - 10mil (0.254mm)
Copper Layer 2 - 35 μm
4. PCB Statistics:
Components: 12
Total Pads: 34
Thru Hole Pads: 16
Top SMT Pads: 18
Bottom SMT Pads: 0
Vias: 21
Nets: 2
5. Artwork Format: Gerber RS-274-X
6. Quality Standard: IPC-Class-2
7. Availability: Worldwide
8. RT/duroid 6002 Material Features:
Dielectric Constant: 2.94 ± 0.04
Thermal Coefficient of Dk: 12 ppm/°C
Dissipation Factor: 0.0012 @10GHz
Thermal Decomposition Temperature: 500°C
Thermal Conductivity: 0.6 W/m/k
Z-axis CTE: 24 ppm/°C
Moisture Absorption: 0.02%
Ceramic-filled PTFE Composition
9. Material Benefits:
Low Loss High Frequency Performance
Tight Thickness Control
CTE Matched to Copper
Low Out-gassing Characteristics
Excellent Dimensional Stability
Reliable Multi-layer Construction
Stable Electrical Properties
10. Typical Applications:
Phased Array Antennas
Airborne Radar Systems
GPS Antennas
Power Backplanes
Collision Avoidance Systems
Beam Forming Networks
Microwave Circuits
Space Applications
