2. Key Features & Benefits



Exceptional High-Frequency Performance: Provides tightly controlled dielectric constant (Dk 3.48±0.05 @ 10 GHz) and low dissipation factor (0.0037 @ 10 GHz) for reliable RF signal integrity.



Thermal & Mechanical Reliability: Features high Tg (>280°C), low Z-axis CTE (32 ppm/°C), and minimal water absorption (0.06%) to ensure stability in demanding thermal environments.



Optimized for Multilayer Construction: CTE closely matched to copper enables excellent dimensional stability, supporting reliable mixed-dielectric stackups and robust plated through-holes.



Cost-Effective Microwave Solution: Processes like standard FR-4 without requiring special PTFE handling, reducing fabrication costs while delivering near-PTFE performance.



Safety & Compatibility: UL 94 V-0 rated for flammability and compatible with lead-free assembly processes.





3. Construction & Technical Specifications



3. Construction & Technical Specifications

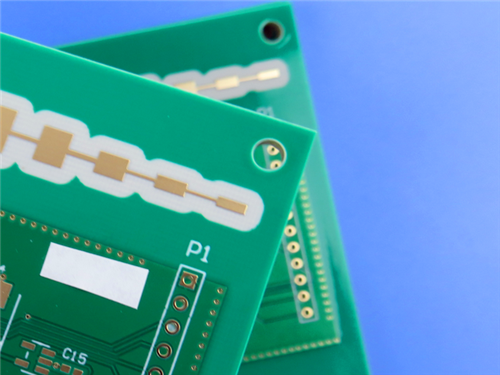

Layer Count & Thickness: 4-layer rigid PCB, 0.98mm finished thickness.



Base Materials: Rogers RO4350B core + Tg170 FR-4 prepreg and core.



Copper Weights: 1oz (35μm) outer layers; 0.5oz (18μm) inner layers.



Critical Dimensions: Minimum trace/space of 4/6 mils; minimum hole size of 0.3mm; no blind/buried vias.



Surface Finish & Appearance: Immersion gold; green solder mask on both sides; white silkscreen on top and bottom.



Quality Assurance: 100% electrical test prior to shipment; IPC-Class-2 quality standard.





4. PCB Stackup Structure



Layer 1: Copper - 35 μm



Core: Rogers RO4350B - 0.508 mm (20 mil)



Layer 2: Copper - 18 μm



Prepreg: FR-4 - 0.2 mm



Layer 3: Copper - 18 μm



Core: Tg170 FR-4 - 0.102 mm (4 mil)



Layer 4: Copper - 35 μm





5. PCB Assembly Statistics



Components: 26



Total Pads: 59



Through-Hole Pads: 37



Top SMT Pads: 22



Bottom SMT Pads: 0



Vias: 125



Nets: 10





6. Technical & Quality Information



Artwork Format: Gerber RS-274-X



Quality Standard: IPC-Class-2



Availability: Worldwide





7. Typical Applications

Rogers RO4350B circuit board is designed for high-performance RF and mixed-signal systems, including:



Cellular Base Station Antennas and Power Amplifiers



Automotive Radar and Advanced Driver-Assistance Systems (ADAS)



RF Identification (RFID) Tags and Readers



Satellite Communication LNBs and Transceivers



Microwave Backhaul and Point-to-Point Radio Equipment



Aerospace and Defense Communication Modules





8. Conclusion

Rogers 4350B high frequency PCB offers an optimized balance of high-frequency performance, thermal reliability, and manufacturing efficiency for advanced RF and multilayer circuit designs. By integrating RO4350B's stable electrical properties with the practical benefits of FR-4 processing, this hybrid board enables cost-effective solutions for telecommunications, automotive, and aerospace applications where signal integrity, thermal management, and structural reliability are essential.
