2. Key Features & Benefits



Stable High‑Frequency Performance: Tight dielectric constant control (Dk 3.48 ±0.05 @ 10 GHz) and low dissipation factor (0.0037 @ 10 GHz) ensure consistent signal integrity in RF/microwave bands.



Excellent Thermal & Mechanical Stability: High Tg (>280°C), low CTE (X/Y/Z: 10/12/32 ppm/°C), and minimal moisture absorption (0.06%) support reliability in harsh operating environments.



Cost‑Effective Microwave Solution: Delivers near‑PTFE performance at a fraction of the cost, with standard FR‑4 processing compatibility and no need for special through‑hole treatments.



High Power & Safety Compliance: UL 94 V‑0 rated for flammability, suitable for high‑power RF designs and active component integration.



Thermal Management Ready: Thermal conductivity of 0.69 W/m/K assists in heat dissipation for power‑dense applications.

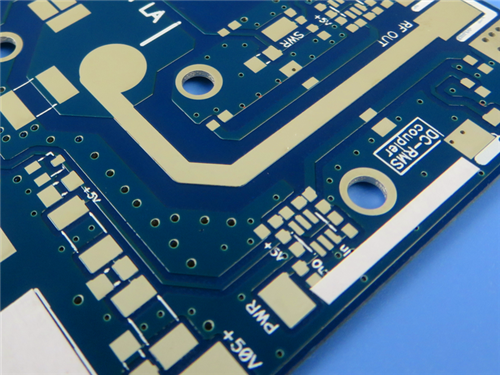

3. Construction & Technical Specifications



Layer Count & Thickness: 2‑layer rigid PCB, 1.6mm finished thickness.



Base Material: Rogers RO4350B hydrocarbon/ceramic laminate.



Board Dimensions: 54 mm x 68 mm per panel, tolerance ±0.15mm.



Copper & Plating: 1oz (35μm) finished copper; 20μm via plating thickness.



Critical Dimensions: Minimum trace/space of 4/6 mils; minimum hole size of 0.3mm; no blind vias.



Surface Finish & Appearance: Immersion silver; blue solder mask on top only; white silkscreen on top; bottom solder mask and silkscreen omitted.



Quality Assurance: 100% electrical test prior to shipment; IPC‑Class‑2 quality standard.



Artwork Format: Gerber RS-274-X.



Availability: Worldwide.





4. PCB Stackup Structure



Layer 1: Copper - 35 μm



Core: Rogers RO4350B - 1.524 mm (60 mil)



Layer 2: Copper - 35 μm





5. PCB Assembly Statistics



Components: 27



Total Pads: 108



Through-Hole Pads: 72



Top SMT Pads: 36



Bottom SMT Pads: 0



Vias: 101



Nets: 2





6. Typical Applications

Rogers 4350B Double Sided high frequency PCB is engineered for high‑frequency and RF‑sensitive systems, including:



Cellular Base Station Antennas and Power Amplifiers



Automotive Radar and Sensor Modules



RF Identification (RFID) Tags and Readers



LNBs for Direct Broadcast Satellites



Microwave Point‑to‑Point Radio Links



Military and Aerospace Communication Systems





7. Conclusion

Rogers RO4350B high frequency circuit laminate offers a robust, high‑performance foundation for RF and microwave circuit designs that require stable electrical properties, thermal reliability, and cost‑effective manufacturability. By combining PTFE‑like performance with epoxy‑glass processing ease, it enables optimized solutions for telecommunications, automotive, and aerospace applications where signal integrity and operational durability are critical.
