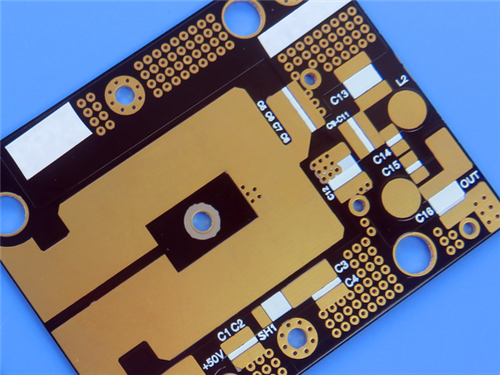

Rogers IsoClad 933 2-Layer 1.6mm Flexible RF PCB for Conformal Antenna Applications
Rogers IsoClad 933 2-Layer 1.6mm Flexible RF PCB for Conformal Antenna Applications
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
Rogers IsoClad 933 PCB utilizes nonwoven fiberglass/PTFE composite technology to create circuit boards specifically engineered for applications requiring mechanical flexibility. The unique nonwoven reinforcement structure enables these laminates to be easily bent and formed into final shapes, making them ideal for conformal and wrap-around antenna designs. Through proprietary manufacturing processes and longer random fibers, IsoClad 933 PCB delivers superior dimensional stability and exceptional dielectric constant uniformity compared to similar nonwoven PTFE laminates.
2. PCB Construction Details
Specification Category |
Details |
Base Material |
IsoClad 933 |
Layer Count |
2 Layers |
Board Dimensions |
155.4mm x 188mm (±0.15mm) |
Finished Thickness |
1.6mm |
Copper Weight |
1 oz Outer Layers |
Min. Trace/Space |
4/6 mils |
Min. Hole Size |
0.3mm |
Blind Vias |
None |
Surface Finish |
ENIG (Electroless Nickel Immersion Gold) |
Solder Mask |
Black (Top), None (Bottom) |
Silkscreen |
White (Top), None (Bottom) |
Electrical Test |
100% |
3. Stackup Structure
This 2-layer flexible RF PCB employs an IsoClad 933 core with 1.575mm (62mil) thickness, positioned between two 35μm copper layers to create a robust yet formable 1.6mm structure suitable for bending applications.
4. Board Statistics
Components: 66
Total Pads: 192 (120 Thru-Hole, 72 Top SMT)
Vias: 231
Nets: 2
Files: Gerber RS-274-X
Standard: IPC-Class-2
Availability: Worldwide
5. IsoClad 933 PCB Material Features
Dielectric Constant: 2.33 @ 10GHz
Dissipation Factor: 0.0016 @ 10GHz
Thermal Coefficient of Dk: -132 ppm/°C
CTE: X 31/Y 35/Z 203 ppm/°C
Peel Strength: 10 lbs/inch
Dielectric Breakdown: >45 kV
Flammability: UL-94 V0
Key Benefits
Excellent mechanical flexibility for conformal applications
Superior dimensional stability among nonwoven laminates
Consistent dielectric constant uniformity
Enhanced formability for wrap-around antenna designs
Reliable performance in bent configurations
Competitive electrical properties with improved processability
7. Typical Applications
Conformal and Wrap-around Antennas
Curved Surface RF Circuits
Aerospace Communication Systems
Military Radar Applications
Automotive Radar Systems
Flexible Microwave Components
