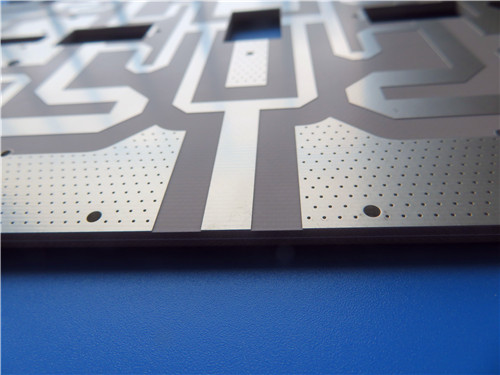

Double-layer Rogers RT/duroid 6010.2LM PCB 75mil Ceramic PTFE Composite Board for Compact Microwave and Antenna Systems
Double-layer Rogers RT/duroid 6010.2LM PCB 75mil Ceramic PTFE Composite Board for Compact Microwave and Antenna Systems
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
1.Rogers RT/duroid 6010.2LM PCB Introduction
Rogers RT/duroid 6010.2LM PCB employs advanced ceramic-PTFE composite technology to deliver a high dielectric constant solution for compact microwave and antenna circuits. 2-layer 2.0mm RT/duroid 6010.2LM PCB enables significant circuit miniaturization while maintaining excellent high-frequency performance. The material's precise dielectric constant and thickness control ensure consistent, repeatable electrical characteristics, making it particularly suitable for applications operating at X-band and below where reliable performance and space efficiency are essential.
2.Material Features
Dielectric Constant: 10.20 ±0.25 at 10 GHz
Dissipation Factor: 0.0023 at 10 GHz
Thermal Decomposition Temperature: 500°C (TGA method)
Moisture Absorption: 0.01%
Coefficient of Thermal Expansion: X-axis 24 ppm/°C, Y-axis 24 ppm/°C, Z-axis 47 ppm/°C
Thermal Conductivity: 0.86 W/m·K
Flammability Rating: UL 94 V-0
3.Material Benefits
High Dielectric Constant for Significant Circuit Size Reduction
Low Loss Characteristics Ideal for X-band and Lower Frequencies
Low Z-axis CTE for Reliable Plated Through-Holes in Multi-layer Boards
Minimal Moisture Absorption Reducing Electrical Performance Degradation
Tight Dielectric Constant and Thickness Control for Consistent Performance
Excellent Thermal Stability for Demanding Applications
Proven Reliability in Challenging Environmental Conditions
4.PCB Construction Details
Base Material: RT/duroid 6010.2LM
Layer Count: 2 Layers
Board Dimensions: 45.4mm x 31.8mm (1 PC), Tolerance: ±0.15mm
Minimum Trace/Space: 4/5 mils
Minimum Hole Size: 0.3mm
Blind Vias: None
Finished Board Thickness: 2.0mm
Finished Copper Weight: 1 oz outer layers
Via Plating Thickness: 20 μm
Surface Finish: Immersion Silver
Top Silkscreen: White
Bottom Silkscreen: No
Top Solder Mask: No
Bottom Solder Mask: No
Electrical Test: 100% Tested Prior to Shipment
5.PCB Stackup: 2-Layer Rigid Construction
Copper Layer 1: 35 μm
Rogers RT/duroid 6010.2LM Core: 75mil (1.905 mm)
Copper Layer 2: 35 μm
6.PCB Assembly Statistics
Components: 15
Total Pads: 41
Thru Hole Pads: 25
Top SMT Pads: 16
Bottom SMT Pads: 0
Vias: 41
Nets: 2
7.Artwork and Quality Standards
Artwork Format: Gerber RS-274-X
Quality Standard: IPC-Class-2
Availability: Worldwide
8.Typical Applications
Patch Antennas for Wireless Systems
Satellite Communication Equipment
RF Power Amplifiers
Aircraft Collision Avoidance Systems
Ground Radar Warning Systems
Microwave Communication Circuits
Aerospace and Defense Electronics
High-Frequency Sensor Systems
9.Conclusion
The Rogers RT/duroid 6010.2LM PCB provides an optimal balance of high dielectric constant performance and reliable high-frequency characteristics, delivering compact, consistent solutions for demanding microwave and antenna applications where circuit miniaturization and electrical stability are critical requirements.
