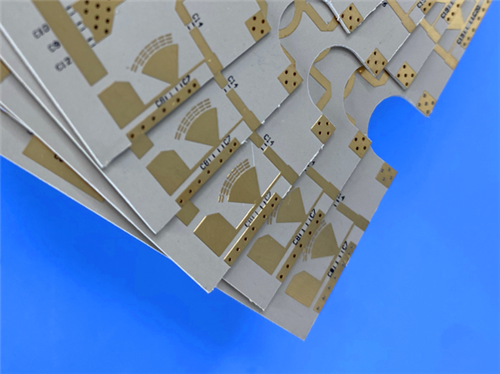

Rogers RT/duroid 6006 2-layer PCB: 10mil Thin High-Dk Board for Compact Microwave Applications
Rogers RT/duroid 6006 2-layer PCB: 10mil Thin High-Dk Board for Compact Microwave Applications
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
1.Rogers RT/duroid 6006 PCB Introduction
Rogers RT/duroid 6006 PCB utilizes advanced ceramic-PTFE composite technology to deliver high dielectric constant performance for compact electronic and microwave circuits. This ultra-thin 2-layer 0.35mm board enables significant circuit size reduction while maintaining excellent electrical characteristics. Rogers RT/duroid 6006 material's precise dielectric constant and thickness control ensure consistent, repeatable performance across production runs, making it particularly suitable for applications operating at X-band frequencies and below where low loss and reliable performance are critical.
2.Material Features
Rogers RT/duroid 6006 Ceramic PTFE Composites
Dielectric Constant: 6.15 ±0.15 at 10 GHz/23°C
Dissipation Factor: 0.0027 at 10 GHz/23°C
Thermal Decomposition Temperature: >500°C (TGA method)
Moisture Absorption: 0.05%
Coefficient of Thermal Expansion: X-axis 47 ppm/°C, Y-axis 34 ppm/°C, Z-axis 117 ppm/°C
Copper Foil Options: Standard and Reverse Treated Electrodeposited
Flammability Rating: 94V-0
Lead-Free Process Compatible
3.Material Benefits
High Dielectric Constant for Significant Circuit Size Reduction
Low Loss Characteristics Ideal for X-band and Lower Frequencies
Tight Dielectric Constant and Thickness Control for Repeatable Performance
Low Moisture Absorption for Enhanced Reliability
Reliable Plated Through-Holes in Multi-layer Board Constructions
Consistent Electrical Properties Across Production Batches
Excellent High-Frequency Performance
Proven Reliability in Demanding Environments
4.PCB Construction Details
Base Material: RT/duroid 6006
Layer Count: 2-Layer
Board Dimensions: 43mm x 107.5mm (1 PC), Tolerance: ±0.15mm
Minimum Trace/Space: 4/4 mils
Minimum Hole Size: 0.2mm
Blind Vias: None
Finished Board Thickness: 0.35mm
Finished Copper Weight: 1 oz outer layers
Via Plating Thickness: 20 μm
Surface Finish: Immersion Gold
Top Silkscreen: Black
Bottom Silkscreen: No
Top Solder Mask: No
Bottom Solder Mask: No
Electrical Test: 100% Tested Prior to Shipment
5.PCB Stackup: 2-Layer Rigid Construction
Copper Layer 1: 35 μm
RT/duroid 6006 Substrate: 10mil (0.254mm)
Copper Layer 2: 35 μm
6.PCB Assembly Statistics
Components: 31
Total Pads: 79
Thru Hole Pads: 37
Top SMT Pads: 42
Bottom SMT Pads: 0
Vias: 50
Nets: 2
7.Artwork and Quality Standards
Artwork Format: Gerber RS-274-X
Accepted Standard: IPC-Class-2
Availability: Worldwide
8.Typical Applications
Patch Antennas for Wireless Communications
Satellite Communication Systems
RF Power Amplifiers
Aircraft Collision Avoidance Systems
Ground Radar Warning Systems
Microwave Communication Equipment
Aerospace Electronics
Defense and Security Systems
9.Conclusion
Rogers RT/duroid 6006 PCB provides an optimal combination of high dielectric constant and low loss characteristics, delivering compact, reliable solutions for microwave and RF applications where space constraints and consistent performance are paramount considerations.
