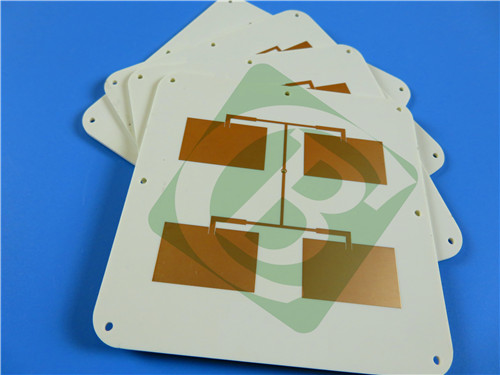

2-Layer Rogers RO4350B PCB 1.524mm Low Loss PCB for RF and Cellular Applications
2-Layer Rogers RO4350B PCB 1.524mm Low Loss PCB for RF and Cellular Applications
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
1. Rogers RO4350B PCB Introduction
Rogers RO4350B PCB utilizes proprietary woven glass reinforced hydrocarbon/ceramic material in a 2-layer configuration with 1.6mm thickness. This high-frequency circuit material offers electrical performance comparable to PTFE/woven glass while maintaining the manufacturability of epoxy/glass. Featuring immersion gold surface finish and UL 94 V-0 rating, RO4350B PCB provides excellent RF performance for cellular base stations and automotive radar applications without requiring special processing procedures.
2. PCB Construction Details:
Base Material: Rogers RO4350B
Layer Count: 2-Layer
Board Dimensions: 80mm × 75mm = 1PCS, ±0.15mm
Minimum Trace/Space: 4/4 mils
Minimum Hole Size: 0.3mm
No Blind Vias
Finished Board Thickness: 1.6mm
Finished Cu Weight: 1oz (1.4 mils)
Via Plating Thickness: 20 μm
Surface Finish: Immersion Gold
Top Silkscreen: White
Bottom Silkscreen: No
Top Solder Mask: No
Bottom Solder Mask: No
100% Electrical Test Before Shipment
3. PCB Stackup: 2-Layer Rigid RF PCB
Copper Layer 1 - 35 μm
Rogers RO4350B Core - 1.524 mm (60mil)
Copper Layer 2 - 35 μm
4. PCB Statistics:
Components: 41
Total Pads: 88
Thru Hole Pads: 61
Top SMT Pads: 27
Bottom SMT Pads: 0
Vias: 97
Nets: 2
- Artwork Format: Gerber RS-274-X
6. Quality Standard: IPC-Class-2
- Availability: Worldwide
8. RO4350B Material Features:
Dielectric Constant: 3.48 ± 0.05 @10GHz/23°C
Dissipation Factor: 0.0037 @10GHz/23°C
Thermal Coefficient of Dk: +50 ppm/°C (-50°C to 150°C)
Thermal Conductivity: 0.69 W/m/°K
CTE: X-axis 10 ppm/°C, Y-axis 12 ppm/°C, Z-axis 32 ppm/°C
High Tg: >280°C
Low Water Absorption: 0.06%
UL 94-V0 Flammability Rating
9. Typical Applications:
Cellular Base Station Antennas
RF Power Amplifiers
RF Identification Tags
Automotive Radar Systems
Sensor Applications
Satellite LNBs
Wireless Infrastructure
High Frequency Circuits
