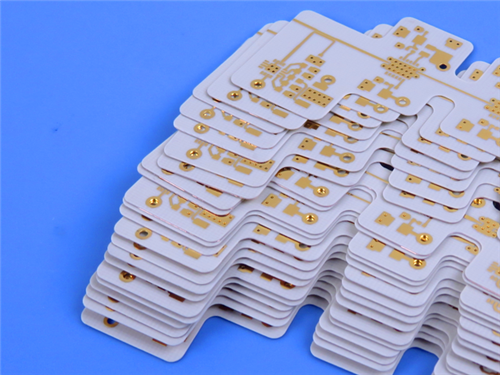

2-Layer Rogers RO3010 PCB 0.127mm Thick Mini Size High Dk Circuit Board for Automotive Radar
2-Layer Rogers RO3010 PCB 0.127mm Thick Mini Size High Dk Circuit Board for Automotive Radar
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
1. Rogers RO3010 PCB Introduction
Rogers RO3010 PCB utilizes advanced ceramic-filled PTFE composite technology to deliver high dielectric constant with exceptional electrical and mechanical stability. This cost-effective material solution maintains consistent performance across broad frequency ranges, simplifying the design of broadband components while enabling significant circuit miniaturization.
RO3010 PCB material's stable characteristics support applications spanning from automotive radar to satellite communications, providing reliable performance in demanding environments.
2. PCB Construction Details
Specification Category |
Details |
Base Material |
Rogers RO3010 |
Layer Count |
2 Layers |
Board Dimensions |
49mm x 27mm |
Finished Thickness |
0.2mm |
Copper Weight |
1 oz Outer Layers |
Min. Trace/Space |
4/5 mils |
Min. Hole Size |
0.2mm |
Surface Finish |
ENIG |
Solder Mask |
None |
Silkscreen |
White (Top), None (Bottom) |
Electrical Test |
100% |
3. Stackup Structure
This ultra-thin 2-layer configuration employs a Rogers RO3010 substrate with 0.127mm (5mil) thickness, positioned between two 35μm copper layers to create a compact 0.2mm profile ideal for space-constrained miniaturized applications.
4. Board Statistics
Components: 1
Total Pads: 4 (2 Thru-Hole, 2 Top SMT)
Vias: 4
Nets: 2
Files: Gerber RS-274-X
Standard: IPC-Class-2
Availability: Worldwide
5. RO3010 Material Features
Dielectric Constant: 10.2±0.30 @ 10GHz
Dissipation Factor: 0.0022 @ 10GHz
CTE: X 13/Y 11/Z 16 ppm/°C
Thermal Conductivity: 0.95 W/mK
Decomposition Temperature: >500°C
Moisture Absorption: 0.05%
Operating Temperature: -40℃ to +85℃
6. RO3010 Key Benefits
Excellent dimensional stability with CTE matched to copper
Cost-effective pricing for volume manufacturing
ISO 9001 certified quality assurance
Compatible with multi-layer board designs
Enables significant circuit miniaturization
Stable performance across broad frequency ranges
7. Typical Applications
Automotive Radar Systems
GPS and Satellite Antennas
Cellular Power Amplifiers and Antennas
Wireless Communication Patch Antennas
Direct Broadcast Satellites
Data Link Systems
Remote Meter Reading Systems
Power Backplane Applications
