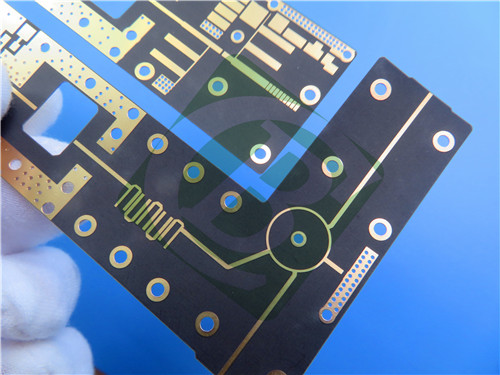

2-Layer 15mil Rogers RT-duroid 5880 PCB Microstrip Circuit Board with Immersion Gold for Millimeter Wave Applications
2-Layer 15mil Rogers RT-duroid 5880 PCB Microstrip Circuit Board with Immersion Gold for Millimeter Wave Applications
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
1. Rogers RT/duroid 5880 PCB Material Properties
Rogers RT/duroid 5880 PCB utilizes advanced PTFE composites reinforced with glass microfibers, specifically engineered for precision stripline and microstrip circuit applications. The unique randomly oriented microfiber reinforcement delivers exceptional dielectric constant uniformity across the entire panel, ensuring consistent electrical performance from board to board. These laminates maintain stable dielectric characteristics over wide frequency ranges, while their ultra-low dissipation factor makes them suitable for demanding applications extending to Ku-band and beyond in the frequency spectrum.
RT/duroid 5880 PCBs offer excellent manufacturability, being easily cut, sheared, and machined to specific shapes without compromising material integrity. The laminates demonstrate remarkable chemical resistance, remaining unaffected by all solvents and reagents typically used in printed circuit etching processes or during edge and hole plating operations. This combination of electrical precision and mechanical processability makes RT/duroid 5880 an ideal choice for high-frequency applications requiring both performance reliability and manufacturing efficiency.
2. PCB Construction & Specifications
Board Type: 2-Layer Rigid PCB
Base Material: Rogers RT/duroid 5880 High-Frequency Laminate
Quality Standard: IPC-Class-2
Board Dimensions: 135mm x 105mm (±0.15mm) - 3 Types, 3 Pieces
Finished Thickness: 0.45mm
Copper Weight: 1oz (35μm)
Minimum Trace/Space: 3.9/3.9 mils
Minimum Hole Size: 0.3mm
Blind Vias: Not Applicable
Via Plating Thickness: 20μm
Surface Finish: Immersion Gold
Solder Mask: Green (Top), None (Bottom)
Silkscreen: White (Top), None (Bottom)
Electrical Test: 100% tested prior to shipment
3. PCB Stackup Configuration
Layer 1: Copper - 35μm
Core: RT/duroid 5880 Laminate - 0.381mm (15mil)
Layer 2: Copper - 35μm
4. PCB Statistics
Components: 38
Total Pads: 147
Thru Hole Pads: 121
Top SMT Pads: 26
Bottom SMT Pads: 0
Vias: 55
Nets: 2
5. Artwork & Standards
Type of artwork supplied: Gerber RS-274-X
Accepted standard: IPC-Class-2
Availability: worldwide
6. Material Features
Dielectric Constant: 2.2 ± 0.02 @ 10GHz/23°C
Dissipation Factor: 0.0009 @ 10GHz
Temperature Coefficient of Dk: -125 ppm/°C
Moisture Absorption: 0.02%
CTE Values: X-axis 31 ppm/°C, Y-axis 48 ppm/°C, Z-axis 237 ppm/°C
Decomposition Temperature: 500°C (TGA)
Flammability Rating: UL 94-V0
Lead-Free Process Compatibility: Yes
Material Type: Isotropic
7. Performance Benefits
Uniform electrical properties over wide frequency range
Easy cutting, shearing and machining to shape
Excellent resistance to solvents and reagents used in etching and plating
Ideal for high moisture environments
Well-established and proven material reliability
Lowest electrical loss for reinforced PTFE materials
Stable performance in extreme environmental conditions
8. Target Applications
Commercial Airline Broadband Antennas
Microstrip and Stripline Circuits
Millimeter Wave Applications
Radar Systems
Guidance Systems
Point-to-Point Digital Radio Antennas
High-Frequency Communication Systems
9. Global Availability
This Rogers RT/duroid 5880 based PCB solution is available for worldwide manufacturing and distribution, supporting both prototype development and volume production requirements across global aerospace and telecommunications markets.
10. Quality Assurance
100% electrical testing prior to shipment
IPC-Class-2 quality standards compliance
High-frequency performance validation
Environmental resistance testing
Mechanical stability verification
Chemical resistance certification
Consistent dielectric performance monitoring
