1.Introduction of RO3006

Rogers RO3006 high-frequency PCB materials are ceramic-reinforced PTFE composites engineered to deliver outstanding electrical and mechanical stability for commercial microwave and radio frequency applications. These advanced laminates maintain a consistent dielectric constant (Dk) across a broad temperature range, effectively eliminating the abrupt Dk variations commonly observed in conventional PTFE-glass materials near ambient temperatures.





2. Features

- Rogers RO3006 ceramic-filled PTFE composites

- Dielectric constant of 6.15+/- 0.15 at 10 GHz/23°C

- Dissipation factor of 0.002 at 10 GHz/23°C

- Td> 500°C

- Thermal Conductivity of 0.79 W/mK

- Moisture Absorption of 0.02%

- Coefficient of Thermal Expansion (-55 to 288 °C)：X axis 17 ppm/°C, Y axis 17 ppm/°C, Z axis 24 ppm/°C



3. Benefits

- Uniform mechanical properties for a range of dielectric constants

* Ideal for multi-layer board designs with a range of dielectric constants

* Suitable for use with epoxy glass multi-layer board hybrid designs



-Low in-plane expansion coefficient (match to copper)

* Allows for more reliable surface mounted assemblies

* Ideal for applications sensitive to temperature change

* Excellent dimensional stability



-Volume manufacturing process

* Economical laminate pricing



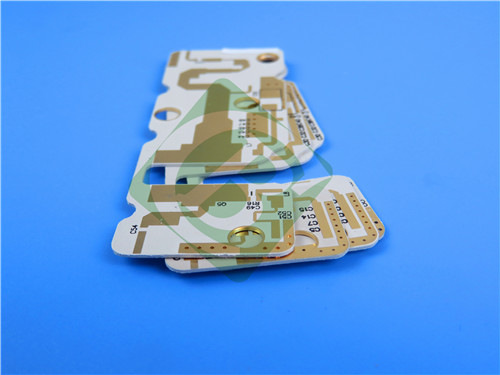

4.PCB Construction details:

- Base material: RO3006

- Layer count: 2 layers

- Board dimensions:  45.2mm x 43.5mm=1PCS

- Minimum Trace/Space:  5/5 mils

- Minimum Hole Size:  0.2mm

- No Blind vias.

- Finished board thickness:  0.3mm

- Finished Cu weight:  1 oz (1.4 mils) outer layers

- Via plating thickness: 20 μm

- Surface finish:  Immersion Gold

- Top Silkscreen:          White

- Bottom Silkscreen:      No

- Top Solder Mask:  No

- Bottom Solder Mask: No

- 100% Electrical test used prior to shipment



5. PCB Stackup:  2-layer rigid PCB

Copper_layer_1 - 35 μm

Rogers RO3006 - 10mil (0.254mm)

Copper_layer_2 - 35 μm



1. PCB Statistics:

    Components:        11

    Total Pads:         29

    Thru Hole Pads:     15

    Top SMT Pads:      14

    Bottom SMT Pads:    0

    Vias:              17

    Nets:              2



7. Type of artwork supplied: Gerber RS-274-X

8. Accepted standard: IPC-Class-2

9. Availability: worldwide



10.Some Typical Applications

- Automotive radar applications

- Global positioning satellite antennas

- Cellular telecommunications systems - power amplifiers and antennas

- Patch antenna for wireless communications

- Direct broadcast satellites

- Datalink on cable systems

- Remote meter readers

- Power backplanes
