1.TLY-5 PCB Introduction

Taconic TLY-5 PCBs are constructed using ultra-lightweight woven fiberglass, delivering significantly superior dimensional stability compared to chopped fiber-reinforced PTFE composites. The woven fiberglass matrix of TLY-5 PCB creates a mechanically more stable laminate, which is well-suited for high-volume manufacturing processes and can effectively meet the needs of large-scale electronic component production scenarios. Meanwhile, leveraging its core advantage of a low dissipation factor, this PCB not only enables successful deployment in 77 GHz automotive radar systems (such as adaptive cruise control and collision warning safety systems) but also supports other antenna devices operating at millimeter wave frequencies, providing reliable signal transmission guarantees for high-frequency communication and sensing fields.





2. Features

- Dielectric constant of 2.2 with tight tolerance 0.02 at 10 GHz/23°C

- 0.0009 loss tangent at 10GHz

- Density (specific gravity) of 2.19 g/cm3

- Moisture Absorption 0.02%

- CTE in X-axis of 26 ppm/°C, Y-axis of 15 ppm/°C and Z-axix of 217 ppm/°C



3. Benifits

- Dimensionally stable

- Lowest DF

- Low moisture absorption

- High copper peel strength

- Uniform & consistent DK



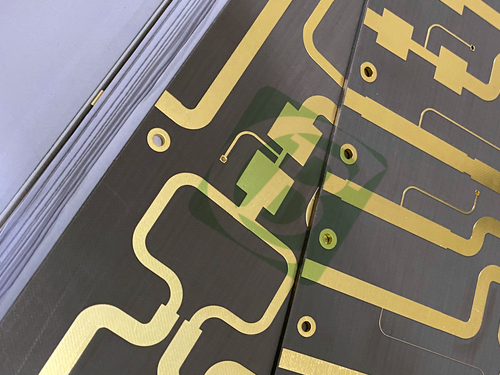

4. PCB Construction details:

- Base material: TLY-5

- Layer count: 2 layers

- Board dimensions:  106mm x 48.5 mm=1PCS, +/- 0.15mm

- Minimum Trace/Space:  7/7 mils

- Minimum Hole Size:  0.4mm

- No Blind vias.

- Finished board thickness:  3.2mm

- Finished Cu weight:  1oz (1.4 mils) outer layers

- Via plating thickness: 20 μm

- Surface finish:  Immersion gold

- Top Silkscreen:          No

- Bottom Silkscreen:      No

- Top Solder Mask:  No

- Bottom Solder Mask: No

- 100% Electrical test used prior to shipment



5. PCB Stackup:  2-layer rigid PCB

Copper_layer_1 - 35 μm

TLY-5 - 3.175 mm (125mil)

Copper_layer_2 - 35 μm



6. PCB Statistics:

    Components:        39

    Total Pads:         136

    Thru Hole Pads:     74

    Top SMT Pads:      62

    Bottom SMT Pads:    0

    Vias:              97

    Nets:              2



7. Type of artwork supplied: Gerber RS-274-X

8. Accepted standard: IPC-Class-2

9. Availability: worldwide



10. Some Typical Applications:

- Automotive Radar

- Satellite/Cellular Communications

- Power Amplifiers

- LNBs, LNAs, LNCs

- Aerospace

- Ka, E and W band Applications
