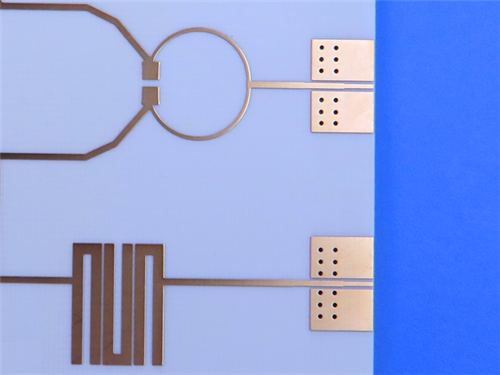

Wangling WL-CT350 2-Layer 40mil PCB High TG280 Laminate for 77GHz Automotive Radar and High-Frequency RF Applications
Wangling WL-CT350 2-Layer 40mil PCB High TG280 Laminate for 77GHz Automotive Radar and High-Frequency RF Applications
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
1. Wangling WL-CT350 2-Layer PCB Introduction
WL-CT350 PCB is constructed with thermosetting resin-based high-frequency laminates, which are organic polymer ceramic fiberglass cloth-covered copper clad substrates. The dielectric layer is composed of hydrocarbon resin, ceramics, and fiberglass cloth, delivering excellent low-loss performance that meets the rigorous requirements of high-frequency design applications. Unlike PTFE materials, this PCB can be processed using techniques similar to FR4, simplifying manufacturing processes while ensuring superior circuit stability and consistency. WL-CT350 laminate serves as a reliable alternative to comparable foreign high-frequency PCB products.
The synergistic combination of hydrocarbon resin and composite ceramics endows WL-CT350 2-Layer PCB with outstanding low-loss characteristics, high-temperature resistance, and temperature stability. This PCB features a stable temperature coefficient of dielectric constant and loss, a low coefficient of thermal expansion, and a high glass transition temperature (TG) of over 280°C, making it well-suited for demanding high-frequency operating environments.
2. Features
Dielectric constant of 3.48 at 10 GHz/23°C
Dissipation factor of 0.0039 at 10GHz
Excellent TCDK of 52 ppm/°C
High Thermal conductivity of 0.7 W/MK
Low Moisture Absorption 0.05%
Matched to copper CTE in X-axis of 11ppm/°C, Y-axis of 14 ppm/°C and Z-axis of 34 ppm/°C
3. Benefits
Low-loss performance for high-frequency design compliance
Simplified manufacturing with FR4-like processing techniques
Superior circuit stability and consistency
Reliable alternative to foreign comparable products
Outstanding high-temperature resistance and temperature stability
Stable dielectric constant and loss temperature coefficients
Low thermal expansion coefficient for structural integrity
High TG (above 280°C) for demanding operating conditions
4. PCB Construction Details
Layer count: 2-layer
Base material: WL-CT350
Board dimensions: 41.8mm x 51.35 mm=1PCS, +/- 0.15mm
Minimum Trace/Space: 5/7 mils
Minimum Hole Size: 0.3mm
No Blind vias
Finished board thickness: 1.1mm
Finished Cu weight: 1oz (1.4 mils) outer layers
Via plating thickness: 20 μm
Surface finish: Immersion Gold
Top Silkscreen: Black
Bottom Silkscreen: No
Top Solder Mask: No
Bottom Solder Mask: No
100% Electrical test used prior to shipment
5. PCB Stackup
2-layer rigid PCB
Copper_layer_1 - 35 μm
WL-CT350 - 1.016 mm (40mil)
Copper_layer_2 - 35 μm
6. PCB Statistics
Components: 21
Total Pads: 63
Thru Hole Pads: 39
Top SMT Pads: 24
Bottom SMT Pads: 0
Vias: 29
Nets: 2
7. Type of Artwork Supplied
Gerber RS-274-X
8. Accepted Standard
IPC-Class-2
9. Availability
Worldwide
10. Some Typical Applications
Base station antennas and satellite antennas
Automotive radar, sensors, and navigation systems
Power amplifiers
Satellite high-frequency heads
RF devices and filters
WIMAX antennas and distributed antennas
11. Summary
WL-CT350 2-Layer PCB is a high-performance, reliable solution tailored for demanding high-frequency applications such as 77GHz automotive radar, base station antennas, and satellite communication systems. Featuring a 1.1mm thickness, immersion gold surface finish, and constructed with WL-CT350 high-frequency laminates, WL-CT350 PCB delivers excellent low-loss performance, high-temperature resistance, and temperature stability. With FR4-like processability, superior circuit consistency, and compliance with IPC-Class-2 standards, WL-CT350 PCB simplifies manufacturing while ensuring consistent performance. Equipped with precise dimensional control, 100% pre-shipment electrical testing, and worldwide availability, it is a trusted alternative to foreign comparable products for a wide range of RF and high-frequency applications.
