2. Features of Rogers RT/duroid 6035HTC PCB

1. Precise dielectric constant (Dk) of 3.5±0.05 at 10 GHz under 23°C, ensuring stable high-frequency signal transmission
2. Ultra-low dissipation factor of 0.0013 at 10 GHz/23°C, minimizing signal attenuation and insertion loss
3. Thermal coefficient of dielectric constant at -66 ppm/°C, maintaining electrical stability across temperature fluctuations
4. Low moisture absorption rate of 0.06%, sustaining reliable performance in humid operational environments
5. High thermal conductivity of 1.44 W/m/K at 80°C, optimizing heat dissipation for high-power circuits
6. Controlled CTE values: X-axis 19 ppm/°C, Y-axis 19 ppm/°C, Z-axis 39 ppm/°C, enhancing structural reliability

3. Key Advantages & Value of Rogers RT/duroid 6035HTC PCB

1. Exceptionally high thermal conductivity to handle intense heat generated in high-power applications
2. Enhanced dielectric heat dissipation capabilities, lowering operating temperatures for high-power components
3. Outstanding high-frequency electrical performance, meeting strict RF and microwave design standards

4. Detailed PCB Construction Parameters

Item	Specification
Base material	RT/duroid 6035HTC
Layer count	Double sided / 2-layer rigid PCB
Board dimensions	87mm x 96.5mm per piece, tolerance +/- 0.15mm
Minimum Trace/Space	5/6 mils
Minimum Hole Size	0.2mm
Blind vias	No Blind vias
Finished board thickness	0.85mm
Finished Cu weight	1oz (1.4 mils) outer layers
Via plating thickness	20 μm
Surface finish	Immersion Silver
Top Silkscreen	White
Bottom Silkscreen	No
Top Solder Mask	Blue
Bottom Solder Mask	No
Quality Control	100% Electrical test prior to shipment

5. PCB Layer Stackup Structure

2-layer rigid high frequency PCB

1. Copper_layer_1 - 35 μm
2. RT/duroid 6035HTC - 0.762 mm (30mil)
3. Copper_layer_2 - 35 μm

6. PCB Design & Component Statistics

1. Components: 31
2. Total Pads: 104
3. Thru Hole Pads: 73
4. Top SMT Pads: 31
5. Bottom SMT Pads: 0
6. Vias: 86
7. Nets: 2

7. Artwork Format & Quality Compliance

1. Type of artwork supplied: Gerber RS-274-X
2. Accepted standard: IPC-Class-2
3. Availability: worldwide

8. Typical Target Applications

1. High power RF and microwave amplifiers
2. Power amplifiers, couplers, filters, combiners, power dividers

9. Conclusion

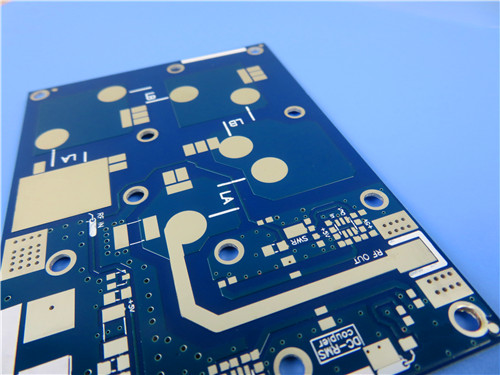

Rogers RT/duroid 6035HTC 2-Layer high frequency PCB stands out with ultra-high thermal conductivity and low-loss high-frequency performance, making it the ideal choice for high-power RF and microwave equipment. With 30mil substrate thickness, 0.85mm finished board thickness, immersion silver surface finish and IPC Class 2 compliance, RT/duroid 6035HTC PCB board ensures stable, reliable operation in high-power amplifiers, RF filters and other critical high-frequency applications across global markets.
