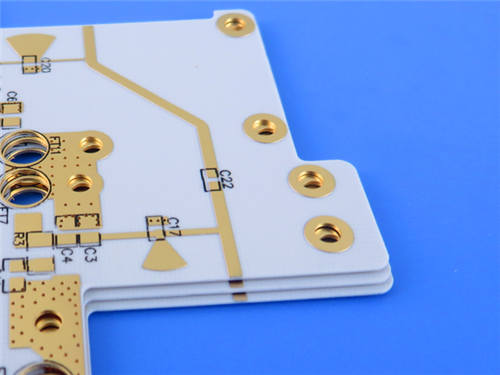

Rogers RO4835 Low-Loss PCB Built on 2-Layer 6.6mil High-Frequency Laminate for Automotive Radar & RF Components
Rogers RO4835 Low-Loss PCB Built on 2-Layer 6.6mil High-Frequency Laminate for Automotive Radar & RF Components
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
1.Rogers RO4835 PCB Introduction
Engineered for high-frequency performance and cost-effective circuit fabrication, Rogers RO4835 2-Layer PCB leverages premium RO4835 laminate as its core base material. RO4835 advanced laminate delivers enhanced thermal stability at elevated temperatures and boasts superior oxidation resistance when compared to conventional hydrocarbon-based materials. Sharing closely matched electrical and mechanical characteristics with the renowned Rogers RO4350B laminates, Rogers RO4835 RF Circuit Board is optimized for reliable high-frequency operation while adhering to standard epoxy/glass (FR-4) manufacturing processes—enabling competitive pricing without compromising quality. As a low-loss material solution, it can be paired with Rogers’ proprietary LoPro Reverse treated copper foil, making it an ideal choice for applications that demand minimal insertion loss to ensure peak signal integrity.
2.PCB Construction Details
Base material: RO4835
Layer Count: 2 layers
Board dimensions: 32.9mm x 60.35mm per PCS, tolerance +/- 0.15mm
Minimum Trace/Space: 6/6 mils
Minimum Hole Size: 0.2mm
Blind/buried vias: None
Finished board thickness: 0.24mm
Finished Cu weight: 1 oz (1.4 mils) for all layers
Via plating thickness: 20um
Surface finish: Immersion Gold
Top Silkscreen: No
Bottom Silkscreen: No
Top Solder Mask: No
Bottom Solder Mask: No
Silkscreen on solder pads: None
Electrical test: 100% implemented
3.Features
RoHS compliant and meets UL 94 V-0 flammability rating requirements
Compliant with IPC-4103 industry standards
Dielectric constant (Dk) of 3.48 +/- 0.05 for stable signal transmission
Low dissipation factor of 0.0037 at 10 GHz
High Glass Transition Temperature (Tg) >280 °C (tested via TMA method)
Controlled Coefficient of Thermal Expansion (CTE): 10 ppm/°C (X-axis), 12 ppm/°C (Y-axis), 31 ppm/°C (Z-axis)
4.Benefits
Significantly improved oxidation resistance versus typical thermoset microwave materials, extending PCB service life
Tailored for performance-sensitive, high-volume applications to balance quality and production efficiency
Low-loss material composition ensures excellent electrical performance, supporting operation at higher frequencies
Ideal for automotive applications where signal reliability is critical
Tight dielectric constant tolerance enables precise design of controlled impedance transmission lines
Fully compatible with lead-free manufacturing processes, with no risk of blistering or delamination during production
Low Z-axis expansion coefficient ensures reliable plated through holes, enhancing structural and electrical durability
Low in-plane expansion coefficient maintains dimensional stability across the entire range of circuit processing temperatures
5.PCB Stackup2-layer rigid PCB
Finished copper: 35um
RO4835 dielectric: 6.6 mil (0.168mm)
Finished copper: 35um
6.PCB Statistics
Components: 4
Total Pads: 28
Thru Hole Pads: 10
Top SMT Pads: 18
Bottom SMT Pads: 0
Vias: 12
Nets: 2
7.Type of Artwork Supplied
Gerber RS-274-X
8.Accepted Standard
IPC-Class-2
9. Service Area
Worldwide
10.Typical Applications
Automotive Radar and Sensors
Point-to-point Microwave Systems
Power Amplifiers
Phased-Array Radar
RF Components
11.Summary
Rogers RO4835 high-frequency circuit materials combines high-performance RO4835 laminate with precise 0.24mm thickness and 1 oz copper cladding to deliver exceptional high-frequency performance, thermal stability, and oxidation resistance. Manufactured to IPC-Class-2 standards with a 100% electrical test protocol, Rogers RO4835 Circuit Board features immersion gold surface finish, 6/6 mils minimum trace/space, and 0.2mm minimum hole size, ensuring reliability for demanding applications like automotive radar and phased-array radar. Its compatibility with standard FR-4 processes and competitive pricing make it a cost-effective solution for high-volume, performance-sensitive projects across the globe.
